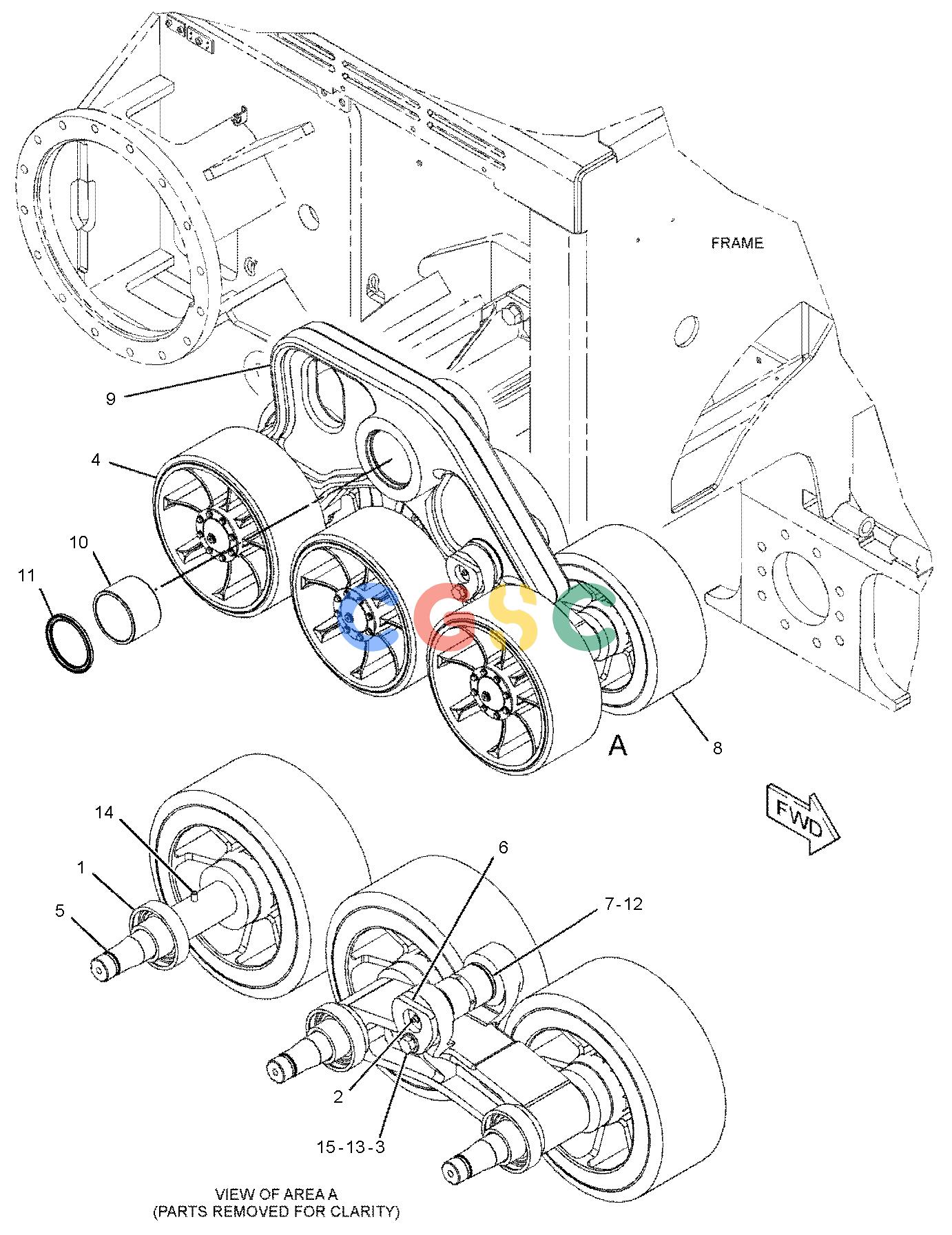

卡特零件查询（BG1055E） 340-4205: FRAME GP-TRACK ROLLER
广数供应链运营团队, 16 02月, 2025，浏览：
514 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1C-7110 | [2] | RETAINER | |
| 2. | 3B-8489 | [1] | FITTING-GREASE(1/8-27 PTF) | |
| 3. | 6Y-8112 | [1] | SPACER(17X25X14-MM THK) | |
| 4. | 136-5157Y | [2] | MIDROLLER GP | |
| 5. | 175-2626 | [1] | SHAFT | |
| 6. | 180-2628 | [1] | PIN AS | |
| 7. | 206-2615 | [1] | BUSHING | |
| 8. | 206-5963Y | [1] | BOGIE GP | |
| 9. | 340-5124 | [1] | FRAME AS | |
| | 7X-2563M | [4] | BOLT(M20X2.5X60-MM) | |
| | 8T-4994 | [4] | WASHER-HARD(20X36.5X3.5-MM THK) | |
| 10. | 149-7576 | [2] | BEARING | |
| 11. | 3E-6758 | [2] | SEAL-LIP TYPE | |
| 12. | 5P-8843 | [2] | SEAL-LIP TYPE | |
| 13. | 8T-4122 | [1] | WASHER-HARD(17X32X3.5-MM THK) | |
| 14. | 8T-5089 | [1] | PIN-SPRING | |
| 15. | 8T-7338M | [1] | BOLT(M16X2X45-MM) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
