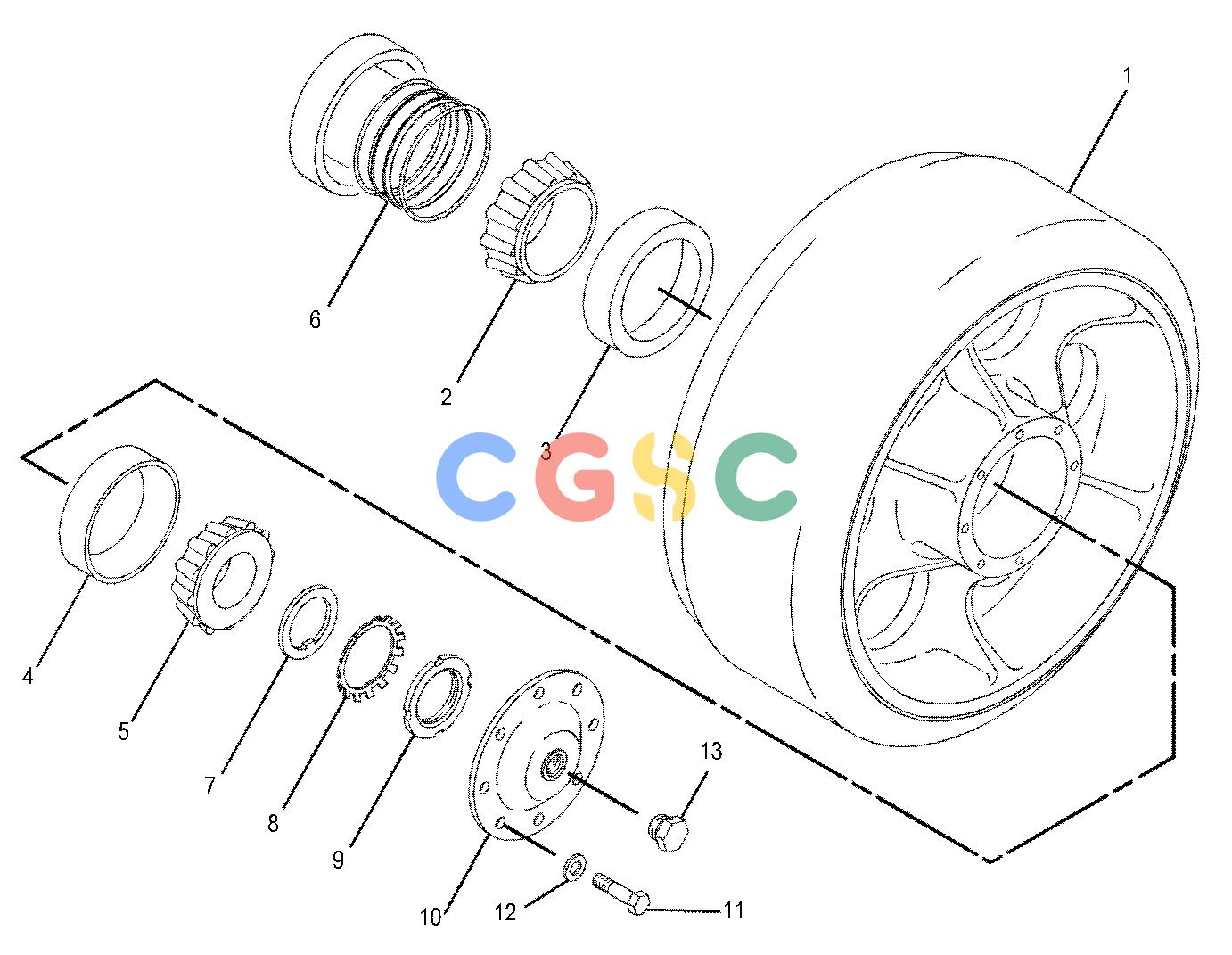

卡特零件查询（BG1055E） 136-5157: MIDROLLER GP
广数供应链运营团队, 16 02月, 2025，浏览：
742 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1R-1310 | [1] | ROLLER AS | |
| 2. | 5P-9651 | [1] | CONE-BEARING | |
| 3. | 5P-9652 | [1] | CUP-BEARING | |
| 4. | 6S-6031 | [1] | CUP-BEARING | |
| 5. | 6S-6032 | [1] | CONE-BEARING | |
| 6. | 1M-8747 | [1] | SEAL GP-DUO-CONE | |
| | 8H-2262 | [2] | RING-TORIC | |
| 7. | 054-1303 | [1] | WASHER(40.46X69.85X7.37-MM THK) | |
| 8. | 1N-5970 | [1] | LOCKWASHER | |
| 9. | 8B-7614 | [1] | NUT-BEARING | |
| 10. | 108-2779 | [1] | COVER AS | |
| 11. | 5C-9553M | [8] | BOLT(M6X1X16-MM) | |
| 12. | 8T-4205 | [8] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 13. | 3J-3679 | [1] | PLUG AS | |
| | 9S-8003 | [1] | PLUG(1/2-20-THD) | |
| | | | |
| | 1U-8846BF | | SEALANT-GASKET | |
| | B | | USE AS REQUIRED |
| | F | | NOT SHOWN |
| | M | | METRIC PART |
