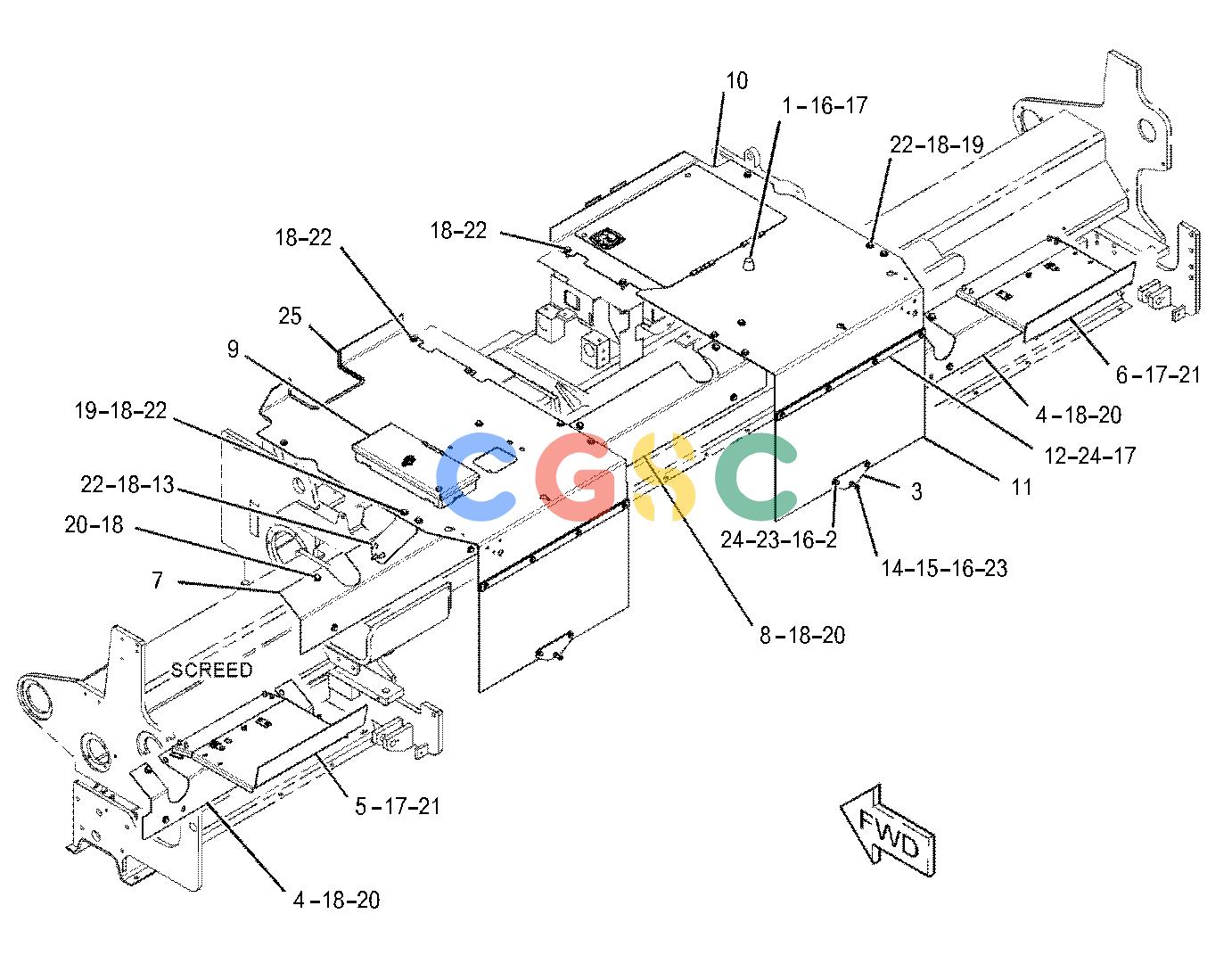

卡特零件查询（BG1055E） 350-5927: COVER GP-SCREED
广数供应链运营团队, 16 02月, 2025，浏览：
513 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 138-7125 | [1] | BUMPER | |
| 2. | 229-1641C | [4] | WASHER(9X35X5-MM THK) | |
| 3. | 310-9820C | [2] | PLATE | |
| 4. | 356-4204 | [2] | COVER AS | |
| 5. | 357-0320 | [1] | SUPPORT AS | |
| 6. | 357-0321 | [1] | SUPPORT AS | |
| 7. | 369-9950 | [1] | COVER | |
| 8. | 369-9951 | [1] | COVER | |
| 9. | 378-6620CY | [1] | COVER GP(LH) | |
| 10. | 380-2791CY | [1] | COVER GP(RH) | |
| 11. | 383-3664C | [2] | COVER-RUBBER | |
| 12. | 383-3665C | [2] | PLATE | |
| 13. | 383-9780C | [1] | BRACKET | |
| 14. | 8T-4197CM | [2] | BOLT(M8X1.25X40-MM) | |
| 15. | 131-3540CM | [2] | LOCKNUT(M8X1.25-THD) | |
| 16. | 5C-7261CM | [7] | NUT(M8X1.25-THD) | |
| 17. | 5P-4116C | [17] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 18. | 7X-7729C | [42] | WASHER(11X25X3-MM THK) | |
| 19. | 8T-4133M | [6] | NUT(M10X1.5-THD) | |
| 20. | 8T-4137M | [16] | BOLT(M10X1.5X20-MM) | |
| 21. | 8T-4189M | [8] | BOLT(M8X1.25X20-MM) | |
| 22. | 8T-4195CM | [20] | BOLT(M10X1.5X30-MM) | |
| 23. | 8T-4224C | [8] | WASHER-HARD(8.8X16X2-MM THK) | |
| 24. | 8T-4908CM | [12] | BOLT(M8X1.25X25-MM) | |
| 25. | 7X-7877E | | STRIP-EDGE(62-CM) | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
