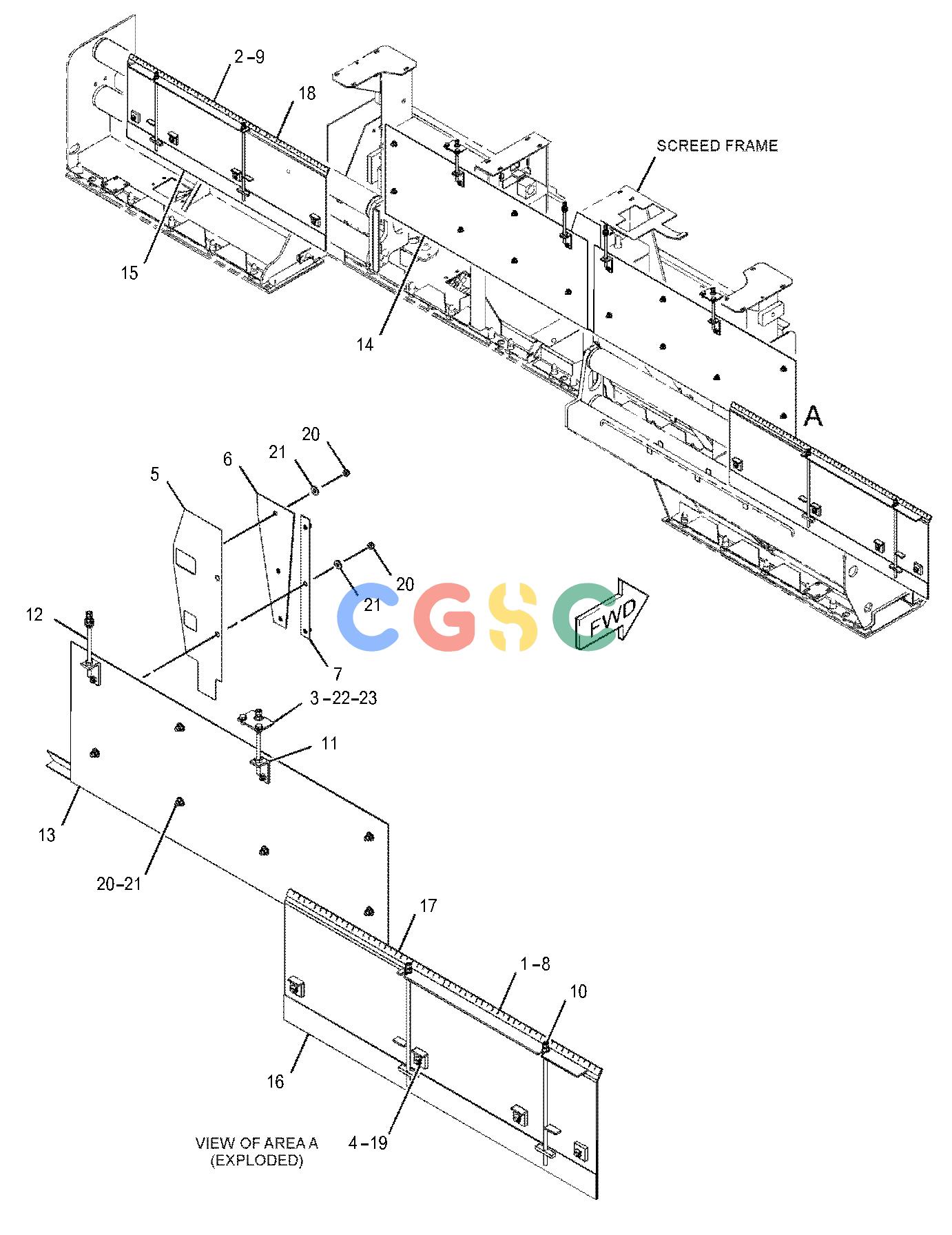

卡特零件查询（BG1055E） 342-5917: DEFLECTOR GP
广数供应链运营团队, 16 02月, 2025，浏览：
228 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8I-0296 | [1] | PLATE AS(RH) | |
| 2. | 8I-0297 | [1] | PLATE AS(LH) | |
| 3. | 8I-0332 | [2] | PLATE-MOUNTING | |
| 4. | 104-2231 | [8] | NUT-SPRING | |
| 5. | 165-3558 | [1] | PLATE | |
| 6. | 165-3559 | [1] | PLATE | |
| 7. | 165-3560 | [1] | PLATE | |
| 8. | 277-3185 | [1] | FILM-SCALE(1-IN TO 28-IN) | |
| 9. | 277-3187 | [1] | FILM-SCALE(1-IN TO 28-IN) | |
| 10. | 284-9087 | [4] | ROD AS-ADJUSTING | |
| 11. | 328-3512 | [4] | BRACKET AS | |
| | | | (EACH INCLUDES) |
| | 8T-3597M | [1] | NUT-WELD(M12X1.75-THD) | |
| 12. | 328-3523 | [4] | ROD AS | |
| 13. | 342-5918 | [1] | PLATE AS(RH) | |
| 14. | 342-5919 | [1] | PLATE AS(LH) | |
| 15. | 342-5920 | [1] | PLATE AS(LH) | |
| 16. | 342-5921 | [1] | PLATE AS(RH) | |
| 17. | 342-5922 | [1] | FILM-IDENTIFICATION(EXTENDER CONTROL, RH) | |
| 18. | 342-5923 | [1] | FILM-IDENTIFICATION(EXTENDER CONTROL, LH) | |
| 19. | 107-2784 | [8] | SCREW-FLAT HEAD(1/2-13X1.5-IN) | |
| 20. | 129-3180M | [22] | LOCKNUT(M12X1.75-THD) | |
| 21. | 5P-1076 | [18] | WASHER-HARD(13.5X30X4-MM THK) | |
| 22. | 8T-4192M | [4] | BOLT(M12X1.75X25-MM) | |
| 23. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| | M | | METRIC PART |
