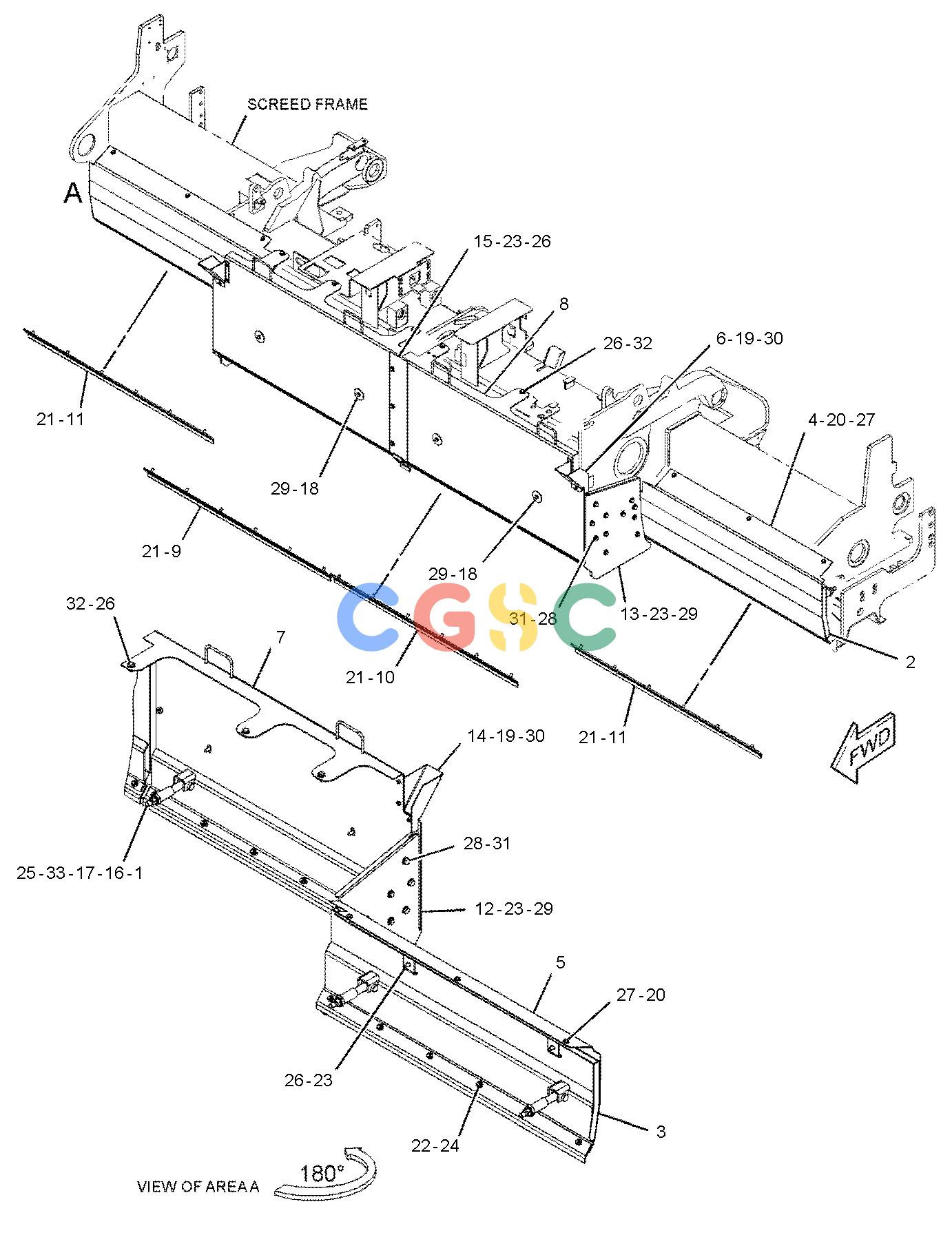

卡特零件查询（BG1055E） 350-5906: DEFLECTOR GP
广数供应链运营团队, 16 02月, 2025，浏览：
818 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8I-0184 | [8] | NUT-ADJUSTMENT(1-1/4-12-THD) | |
| 2. | 391-5114 | [1] | DEFLECTOR AS(REAR, LH) | |
| 3. | 391-5165 | [1] | DEFLECTOR AS(REAR, RH) | |
| 4. | 391-9022 | [1] | COVER(LH) | |
| 5. | 391-5181 | [1] | COVER(RH) | |
| 6. | 367-5506 | [1] | COVER(LH) | |
| 7. | 391-5166 | [1] | DEFLECTOR AS(FRONT, RH) | |
| 8. | 391-5167 | [1] | DEFLECTOR AS(FRONT, LH) | |
| 9. | 369-8050 | [1] | BLADE AS(RH) | |
| 10. | 369-8051 | [1] | BLADE(FRONT) | |
| 11. | 369-8053 | [2] | BLADE(REAR) | |
| 12. | 369-8055 | [1] | PLATE AS(RH) | |
| 13. | 369-8056 | [1] | PLATE AS(LH) | |
| 14. | 369-8058 | [1] | COVER(RH) | |
| 15. | 370-3805 | [1] | PLATE | |
| 16. | 370-3808 | [8] | ROD AS-PULL | |
| 17. | 176-5311M | [8] | LOCKNUT(M16X2-THD) | |
| 18. | 1B-1067 | [4] | WASHER(13.5X50.8X11.1-MM THK) | |
| 19. | 5C-9553M | [6] | BOLT(M6X1X16-MM) | |
| 20. | 5P-4116 | [6] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 21. | 134-8273M | [24] | SCREW-FLAT HEAD(M10X1.5X25-MM) | |
| 22. | 6V-7744M | [24] | LOCKNUT(M10X1.5-THD) | |
| 23. | 7X-7729 | [19] | WASHER(11X25X3-MM THK) | |
| 24. | 8T-4121 | [24] | WASHER-HARD(11X21X2.5-MM THK) | |
| 25. | 8T-4122 | [8] | WASHER-HARD(17X32X3.5-MM THK) | |
| 26. | 8T-4136M | [12] | BOLT(M10X1.5X25-MM) | |
| 27. | 8T-4189M | [6] | BOLT(M8X1.25X20-MM) | |
| 28. | 8T-4192M | [10] | BOLT(M12X1.75X25-MM) | |
| 29. | 8T-4195M | [16] | BOLT(M10X1.5X30-MM) | |
| 30. | 8T-4205 | [6] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 31. | 8T-4223 | [10] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 32. | 7X-0589 | [5] | WASHER-HARD(12X28.5X5-MM THK) | |
| 33. | 282-2080 | [48] | WASHER(16.3X31.5X1.75-MM THK) | |
| | M | | METRIC PART |
