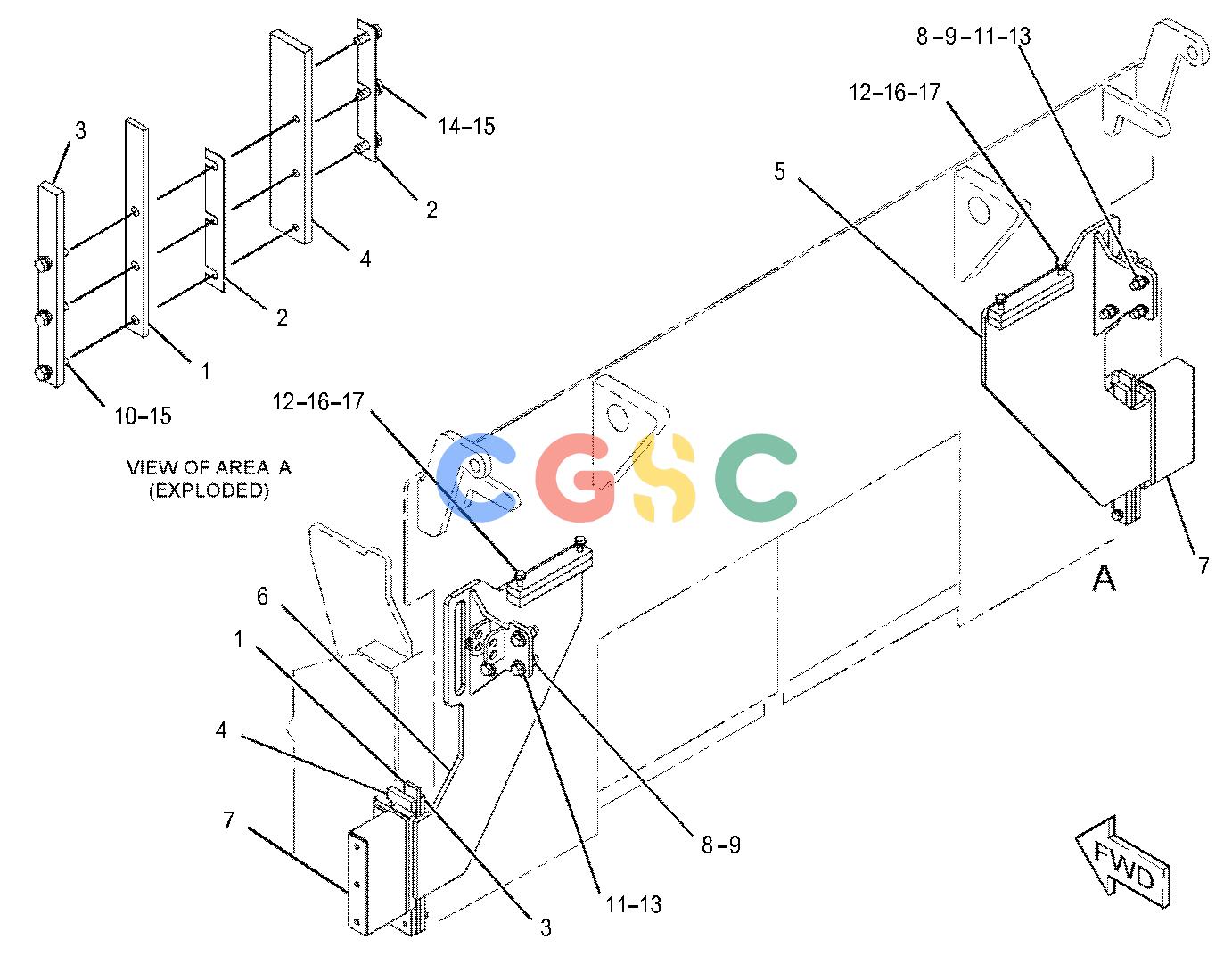

卡特零件查询（BG1055E） 327-9195: EXTENSION GP-MAIN FRAME
广数供应链运营团队, 16 02月, 2025，浏览：
832 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 120-7679 | [2] | BAR | |
| 2. | 121-3920B | [4] | SHIM(1.65-MM THK) | |
| 3. | 242-2482 | [2] | PLATE | |
| 4. | 242-2571 | [2] | PLATE | |
| 5. | 449-6242 | [1] | SUPPORT AS(RH) | |
| 6. | 449-6243 | [1] | SUPPORT AS(LH) | |
| | | | (EACH SUPPORT AS INCLUDES) |
| | 7T-1099 | [1] | LINK | |
| 7. | 339-3267 | [2] | EXTENSION AS | |
| 8. | 8T-4123 | [6] | WASHER(3.62X5.75X0.375-MM THK) | |
| 9. | 8T-4131M | [6] | NUT(M20X2.5-THD) | |
| 10. | 8T-4140M | [6] | BOLT(M16X2X60-MM) | |
| 11. | 8T-4141M | [6] | BOLT(M20X2.5X70-MM) | |
| 12. | 7X-2556M | [4] | BOLT(M16X2X100-MM) | |
| 13. | 8T-5439 | [6] | WASHER-HARD(21.5X45X6-MM THK) | |
| 14. | 8T-7338M | [6] | BOLT(M16X2X45-MM) | |
| 15. | 9X-8257 | [12] | WASHER(17.5X30X3.5-MM THK) | |
| 16. | 7X-0583 | [4] | WASHER-HARD(17X45X6-MM THK) | |
| 17. | 450-0355 | [2] | BAR | |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
