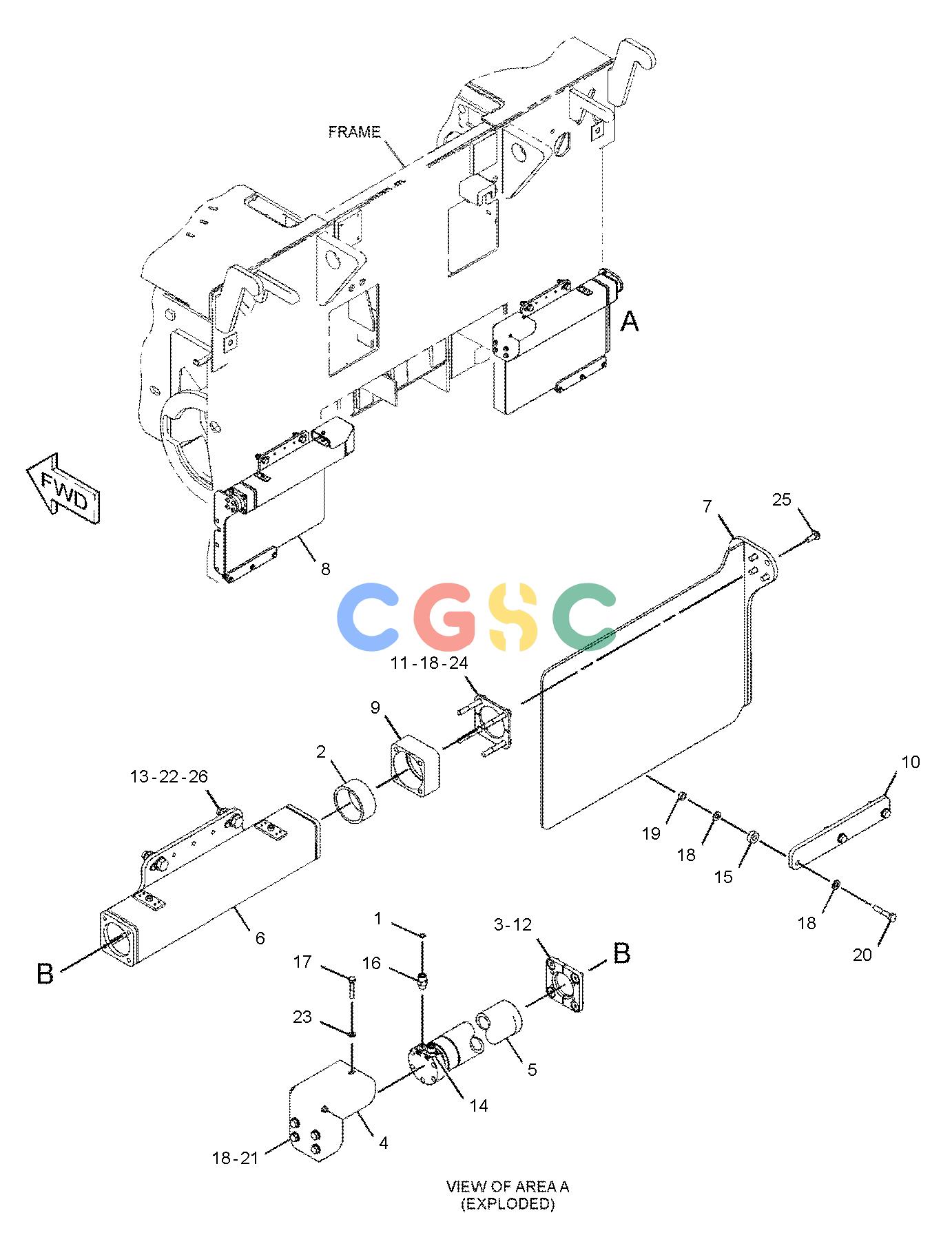

卡特零件查询（BG1055E） 349-1450: EXTENSION GP-MAIN FRAME
广数供应链运营团队, 16 02月, 2025，浏览：
445 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1G-8275 | [2] | VALVE GP-CHECK(MAIN FRAME EXTENSION) | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| 2. | 338-0862 | [2] | BUSHING | |
| 3. | 338-0866 | [4] | PLATE | |
| 4. | 338-0868 | [2] | GUARD | |
| 5. | 487-4838J | [2] | CYLINDER GP-HYDRAULIC | |
| 6. | 338-0871 | [2] | MOUNT AS | |
| 7. | 338-0872 | [1] | EXTENSION AS(RH) | |
| 8. | 338-0873 | [1] | EXTENSION AS(LH) | |
| 9. | 340-6307 | [2] | MOUNT | |
| 10. | 340-6309 | [2] | PLATE-GUIDE | |
| 11. | 340-6311 | [4] | SCRAPER | |
| 12. | 127-2909M | [8] | SCREW-FLAT HEAD(M10X1.5X20-MM) | |
| 13. | 176-5311M | [4] | LOCKNUT(M16X2-THD) | |
| 14. | 183-3399 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 6V-8636 | [1] | CONNECTOR | |
| | 214-7568 | [1] | SEAL-O-RING | |
| | 228-7089 | [1] | SEAL-O-RING | |
| 15. | 198-4777 | [6] | WASHER-HARD(11X25X10-MM THK) | |
| 16. | 228-7089 | [2] | SEAL-O-RING | |
| 17. | 7X-0818M | [2] | BOLT(M8X1.25X45-MM) | |
| 18. | 8T-4121 | [28] | WASHER-HARD(11X21X2.5-MM THK) | |
| 19. | 8T-4133M | [6] | NUT(M10X1.5-THD) | |
| 20. | 8T-4185M | [6] | BOLT(M10X1.5X50-MM) | |
| 21. | 8T-4186M | [8] | BOLT(M10X1.5X40-MM) | |
| 22. | 8T-4193M | [4] | BOLT(M16X2X50-MM) | |
| 23. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 24. | 8T-5005M | [8] | BOLT(M10X1.5X70-MM) | |
| 25. | 9X-2040M | [8] | SCREW-TRUSS HEAD(M10X1.5X25-MM) | |
| 26. | 9X-8257 | [8] | WASHER(17.5X30X3.5-MM THK) | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 367-3791J | [1] | KIT-SEAL | |
| | | | (INCLUDES WEAR RINGS, WIPER, SEALS, SEAL KIT, O-RING SEALS & BACKUP RINGS) |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | M | | METRIC PART |
