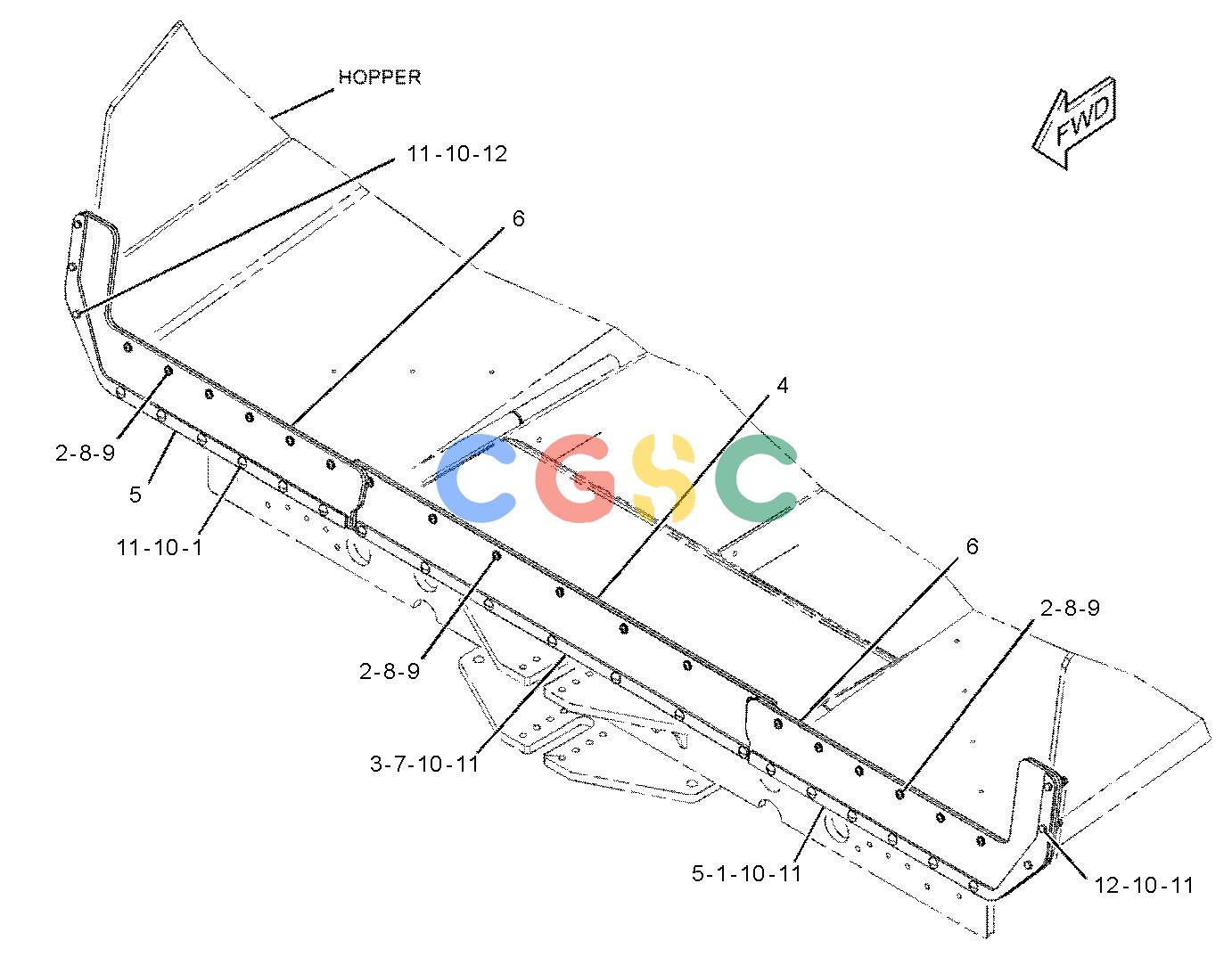

卡特零件查询（BG1055E） 327-9159: FLASHING GP
广数供应链运营团队, 16 02月, 2025，浏览：
630 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 252-6307M | [12] | BOLT-CARRIAGE(M12X1.75X65-MM) | |
| 2. | 302-3372M | [19] | NUT-WELD(M10X1.5-THD) | |
| 3. | 338-1638 | [1] | BAR | |
| 4. | 338-2151 | [1] | FLASHING AS | |
| 5. | 346-1713 | [2] | PLATE | |
| 6. | 346-1714 | [2] | FLASHING AS | |
| 7. | M | [7] | BOLT-CARRIAGE(M12X1.75X60-MM) |
| 8. | 7X-7729 | [19] | WASHER(11X25X3-MM THK) | |
| 9. | 8C-8585M | [19] | SCREW-BUTTON HEAD(M10X1.5X20-MM) | |
| 10. | 8T-4223 | [25] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 11. | 8T-4244M | [25] | NUT(M12X1.75-THD) | |
| 12. | 8T-4910M | [6] | BOLT(M12X1.75X60-MM) | |
| | M | | METRIC PART |
