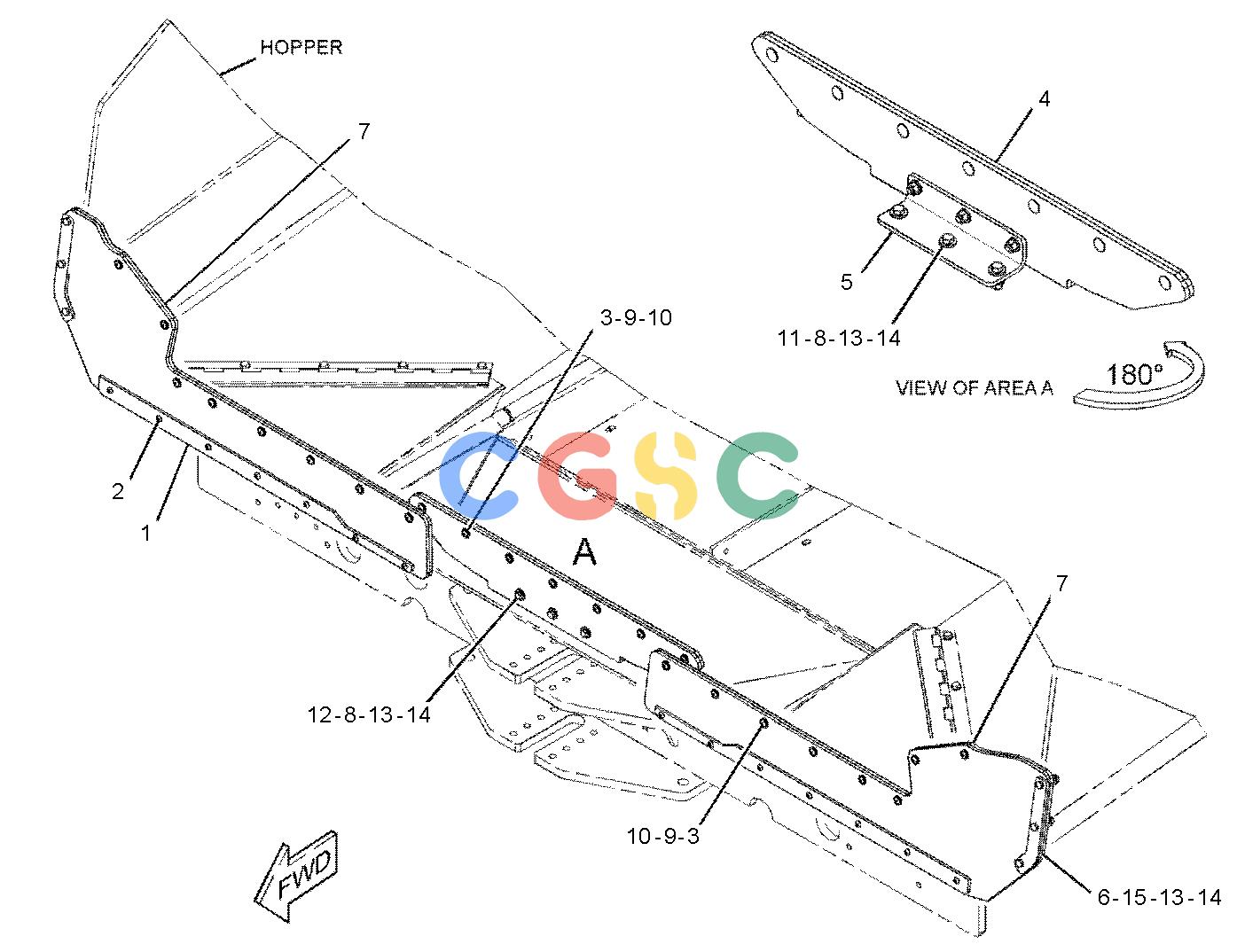

卡特零件查询（BG1055E） 327-9160: FLASHING GP
广数供应链运营团队, 16 02月, 2025，浏览：
188 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 275-1142 | [2] | PLATE | |
| 2. | 281-2901M | [14] | SCREW-BUTTON HEAD(M10X1.5X40-MM) | |
| 3. | 302-3372M | [23] | NUT-WELD(M10X1.5-THD) | |
| 4. | 340-8282 | [1] | FLASHING AS | |
| 5. | 340-8284 | [1] | PLATE | |
| 6. | 343-7766 | [2] | PLATE | |
| 7. | 346-1711 | [2] | FLASHING AS | |
| 8. | 5P-1076 | [6] | WASHER-HARD(13.5X30X4-MM THK) | |
| 9. | 7X-7729 | [23] | WASHER(11X25X3-MM THK) | |
| 10. | 8C-8585M | [23] | SCREW-BUTTON HEAD(M10X1.5X20-MM) | |
| 11. | 8T-4183M | [3] | BOLT(M12X1.75X40-MM) | |
| 12. | 8T-4194M | [3] | BOLT(M12X1.75X50-MM) | |
| 13. | 8T-4223 | [12] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 14. | 8T-4244M | [12] | NUT(M12X1.75-THD) | |
| 15. | 8T-4910M | [6] | BOLT(M12X1.75X60-MM) | |
| | M | | METRIC PART |
