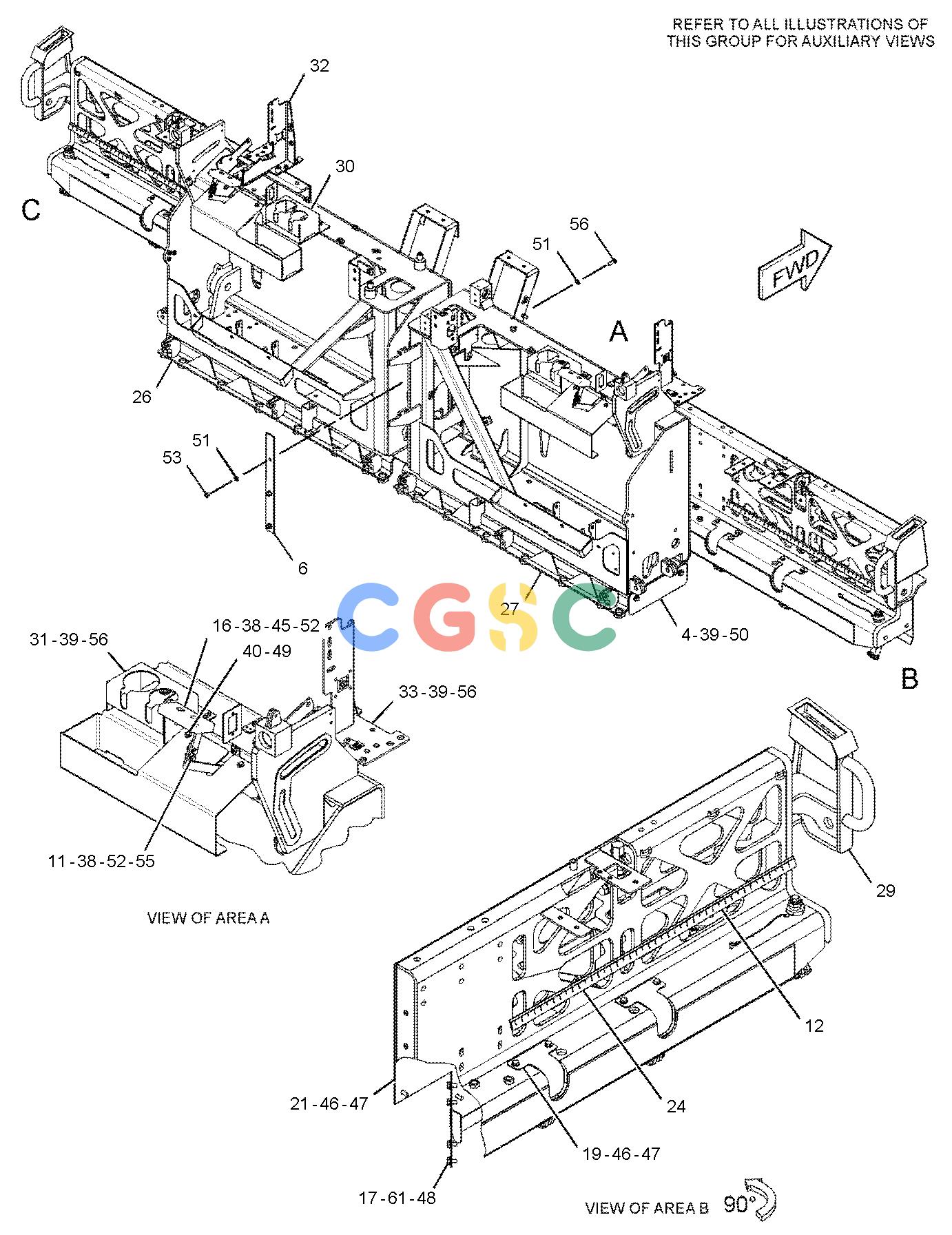

卡特零件查询（BG1055E） 328-3521: FRAME GP-SCREED
广数供应链运营团队, 16 02月, 2025，浏览：
921 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3P-8680 | [4] | CUP-BEARING | |
| 2. | 3P-8681 | [4] | CONE-BEARING | |
| 3. | 8I-0184 | [6] | NUT-ADJUSTMENT(1-1/4-12-THD) | |
| 4. | 196-2512 | [2] | PLATE | |
| 5. | 205-6459 | [2] | PIN-LOCK | |
| 6. | 215-1859 | [1] | PLATE | |
| 7. | 252-5218 | [2] | LANYARD(371-MM) | |
| 8. | 254-3792 | [2] | SHAFT AS | |
| 9. | 254-3796 | [2] | SLEEVE AS-ADJUSTMENT | |
| 10. | 276-1088 | [2] | NUT-ADJUSTING | |
| 11. | 276-9666 | [2] | BRACKET | |
| 12. | 277-3185 | [1] | FILM-SCALE(1-IN TO 28-IN)(EXTENSION, RH) | |
| 13. | 277-3187 | [1] | FILM-SCALE(1-IN TO 28-IN)(EXTENSION, LH) | |
| 14. | 279-6482 | [4] | SPACER(38X21X20-MM THK) | |
| 15. | 280-1688 | [2] | BLOCK-BEARING | |
| 16. | 281-6687 | [2] | PAD | |
| 17. | 281-7824 | [2] | PLATE | |
| 18. | 282-1889 | [4] | ADJUSTER AS | |
| 19. | 282-2495 | [4] | COVER | |
| 20. | 282-2647 | [1] | COVER AS-ACCESS | |
| 21. | 282-2648 | [1] | COVER AS | |
| 22. | 285-8408 | [2] | ARM | |
| 23. | 294-7378 | [2] | NUT-JAM(1-1/4-12-THD) | |
| 24. | 305-5338 | [1] | FILM-SCALE(30-IN TO 44-IN)(EXTENSION, RH) | |
| 25. | 305-5339 | [1] | FILM-SCALE(30-IN TO 44-IN)(EXTENSION, LH) | |
| 26. | 375-6451C | [1] | FRAME AS-MAIN(LH) | |
| 27. | 375-6452C | [1] | FRAME AS-MAIN(RH) | |
| | 215-1860 | [1] | PLATE | |
| 28. | 332-2314 | [1] | FRAME AS(LH) | |
| 29. | 332-2315 | [1] | FRAME AS(RH) | |
| 30. | 335-6402 | [1] | BOX AS(LH) | |
| 31. | 335-6404 | [1] | BOX AS(RH) | |
| 32. | 337-9993 | [1] | BRACKET AS(LH) | |
| 33. | 337-9994 | [1] | BRACKET AS(RH) | |
| 34. | 129-3178M | [2] | LOCKNUT(M6X1-THD) | |
| 35. | 156-9557M | [2] | SETSCREW | |
| 36. | 1D-6306 | [4] | NUT(1-8-THD) | |
| 37. | 3B-8489 | [2] | FITTING-GREASE(1/8-27 PTF) | |
| 38. | 5C-7261M | [8] | NUT(M8X1.25-THD) | |
| 39. | 5P-1076 | [22] | WASHER-HARD(13.5X30X4-MM THK) | |
| 40. | 5P-4115 | [4] | WASHER-HARD(7.2X19X2-MM THK) | |
| 41. | 6D-2928 | [2] | BOLT(1/4-20X1.125-IN) | |
| 42. | 6V-4432 | [2] | BOLT(1/2-13X4-IN) | |
| 43. | 6V-8188 | [4] | NUT(1/2-13-THD) | |
| 44. | 6V-8801 | [8] | NUT(3/8-16-THD) | |
| 45. | 7X-2537M | [4] | BOLT(M8X1.25X35-MM) | |
| 46. | 8T-4121 | [30] | WASHER-HARD(11X21X2.5-MM THK) | |
| 47. | 8T-4136M | [30] | BOLT(M10X1.5X25-MM) | |
| 48. | 8T-4189M | [8] | BOLT(M8X1.25X20-MM) | |
| 49. | 8T-4138M | [4] | BOLT(M6X1X20-MM) | |
| 50. | 8T-4139M | [4] | BOLT(M12X1.75X30-MM) | |
| 51. | 8T-4223 | [6] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 52. | 8T-4224 | [16] | WASHER-HARD(8.8X16X2-MM THK) | |
| 53. | 129-3180CM | [3] | LOCKNUT(M12X1.75-THD) | |
| 54. | 8T-4896 | [8] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 55. | 8T-4908M | [4] | BOLT(M8X1.25X25-MM) | |
| 56. | 8T-4956M | [15] | BOLT(M12X1.75X35-MM) | |
| 57. | 8T-5460M | [4] | BOLT(M20X2.5X40-MM) | |
| 58. | 9X-2480M | [2] | BOLT(M6X1X45-MM) | |
| 59. | 9X-6270 | [8] | BOLT-SPECIAL | |
| 60. | 9X-8256 | [4] | WASHER(6.6X12X2-MM THK) | |
| 61. | 5P-4116 | [8] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | M | | METRIC PART |
