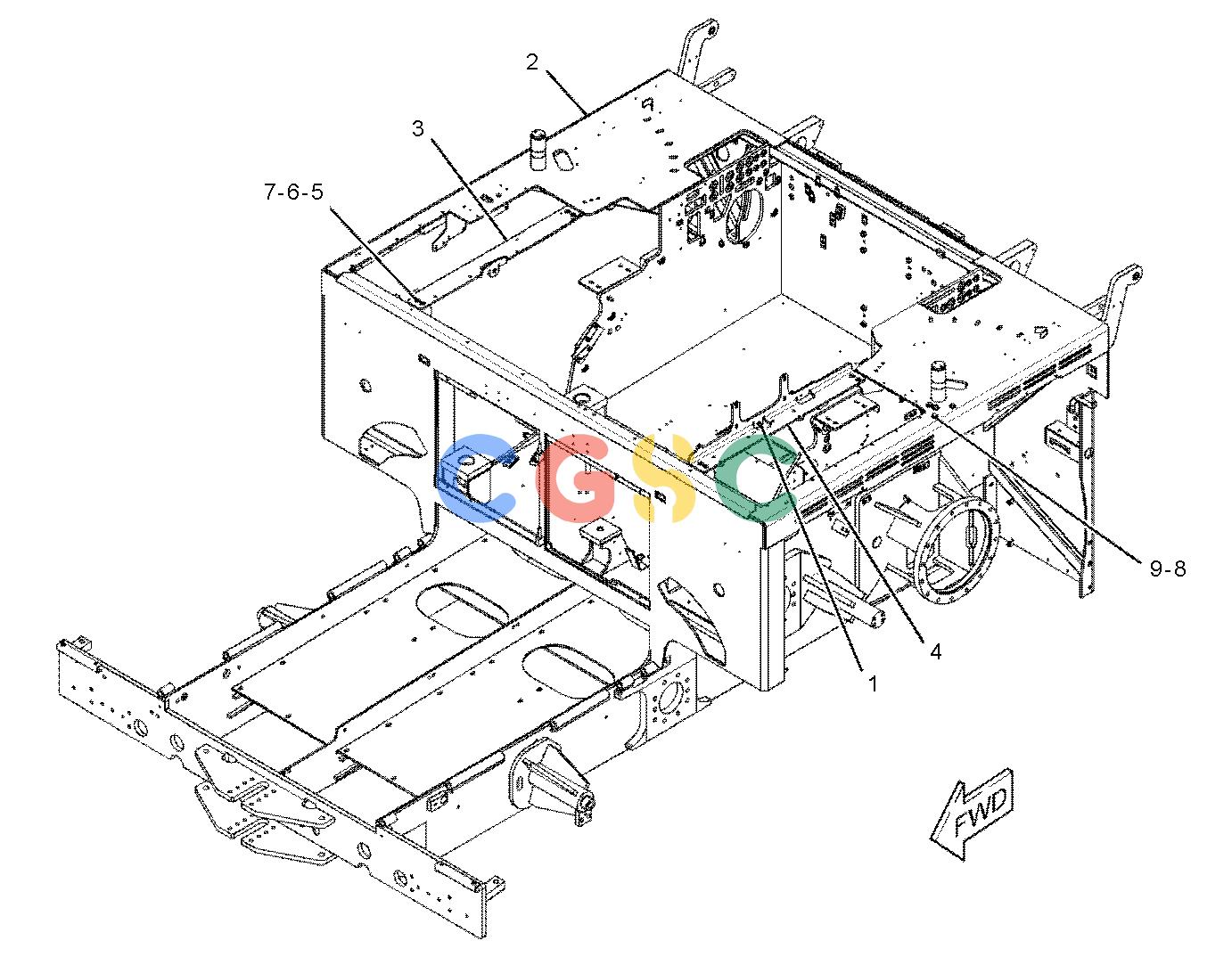

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 119-9706 | [2] | STUD-BALL | |
| 2. | 331-1168 | [1] | FRAME AS | |
| 3. | 342-0676 | [1] | BRACKET AS | |
| 4. | 342-0677 | [1] | BRACKET AS | |
| 5. | 145-1893M | [8] | SCREW(M12X1.75X40-MM) | |
| 6. | 8T-4223 | [8] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 7. | 8T-4244M | [8] | NUT(M12X1.75-THD) | |
| 8. | 5P-1076 | [8] | WASHER-HARD(13.5X30X4-MM THK) | |
| 9. | 8T-4183M | [8] | BOLT(M12X1.75X40-MM) | |
| M | METRIC PART | |||
