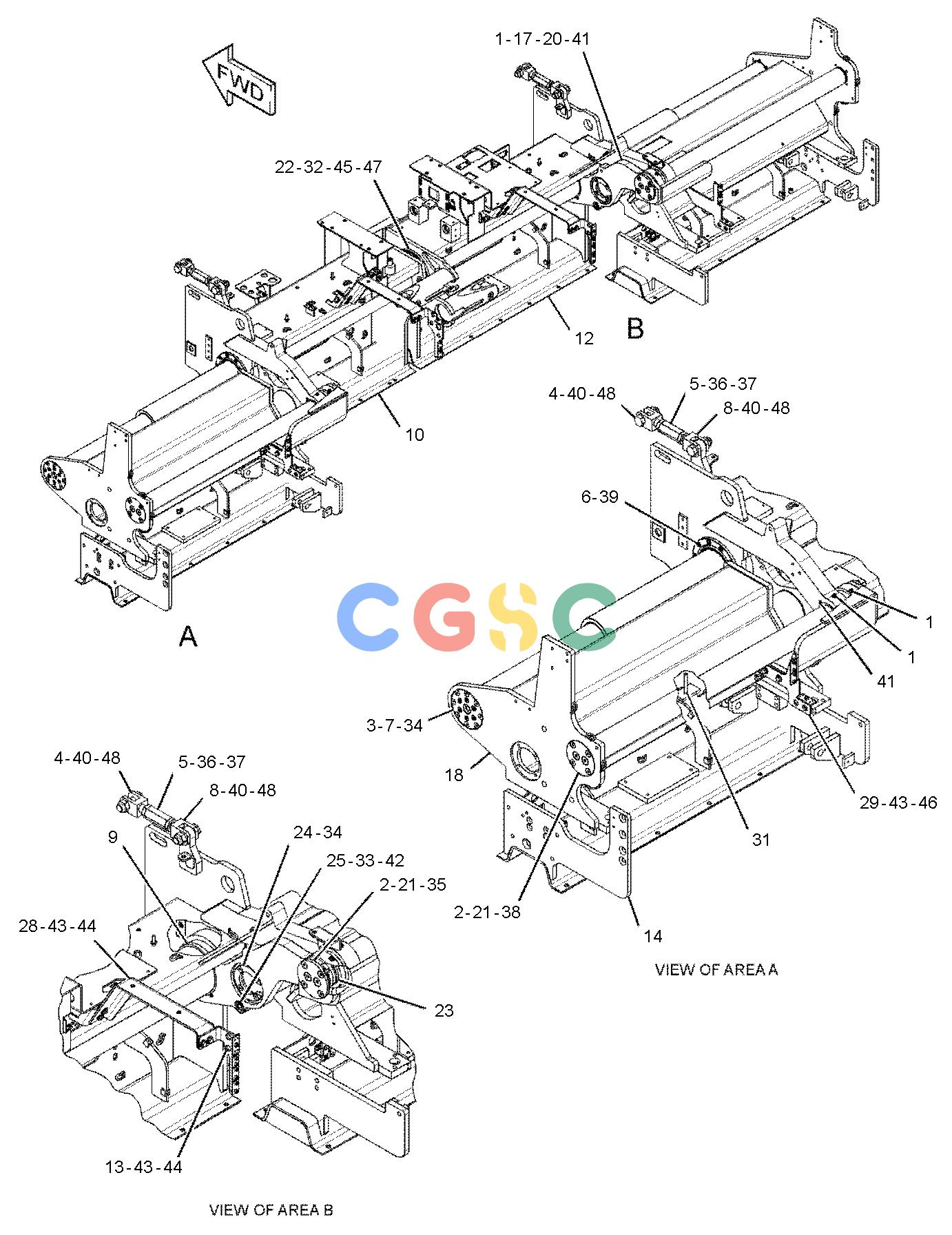

卡特零件查询（BG1055E） 350-7789: FRAME GP-SCREED
广数供应链运营团队, 16 02月, 2025，浏览：
686 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3B-8489 | [6] | FITTING-GREASE(1/8-27 PTF) | |
| 2. | 126-1501M | [8] | SCREW-FLAT HEAD(M16X2X45-MM) | |
| 3. | 153-3506M | [12] | BOLT(M10X1.5X25-MM) | |
| 4. | 242-2647 | [2] | CLEVIS AS | |
| 5. | 242-2808 | [2] | NUT(M27X2-THD) | |
| 6. | 251-0767Y | [2] | TUBE GP-EXTENSION(TELESCOPING) | |
| 7. | 257-5275 | [2] | FLANGE | |
| 8. | 264-3308 | [2] | CLEVIS AS(LH THREAD) | |
| 9. | 315-3697 | [2] | BUSHING | |
| 10. | 350-7790 | [1] | FRAME AS(LH) | |
| 11. | 350-7816 | [1] | SUPPORT AS(LH) | |
| 12. | 350-7832 | [1] | FRAME AS(RH) | |
| 13. | 350-7845 | [1] | SUPPORT AS(RH) | |
| 14. | 350-7850 | [1] | FRAME AS(LH) | |
| 15. | 350-7867 | [1] | FRAME AS(RH) | |
| 16. | 350-7870 | [1] | TUBE AS | |
| 17. | 350-7875 | [1] | TUBE AS | |
| 18. | 350-7876 | [1] | FRAME AS(LH) | |
| 19. | 350-7891 | [1] | FRAME AS(RH) | |
| 20. | 350-7898 | [4] | BUSHING | |
| 21. | 350-7913 | [4] | FLANGE | |
| 22. | 350-7915 | [2] | PLATE-RETAINER | |
| 23. | 350-7918 | [4] | BUSHING | |
| 24. | 350-7919 | [2] | SEAL | |
| 25. | 350-7940 | [2] | ROD-THREADED | |
| 26. | 350-7942 | [1] | SUPPORT AS | |
| 27. | 350-7944 | [2] | TUBE AS | |
| 28. | 350-7951 | [1] | SUPPORT AS | |
| 29. | 353-7096 | [1] | BRACKET AS | |
| 30. | 353-7097 | [1] | BRACKET AS | |
| 31. | 358-3156 | [8] | STUD(M12X1.75X85-MM)(M12X1.75X85-MM) | |
| 32. | 363-3197 | [2] | PLATE | |
| 33. | 098-5747M | [6] | NUT(M16X2-THD) | |
| 34. | 127-2909M | [24] | SCREW-FLAT HEAD(M10X1.5X20-MM) | |
| 35. | 144-2686M | [8] | SCREW-FLAT HEAD(M12X1.75X25-MM) | |
| 36. | 201-5541M | [2] | NUT(M27X2-THD)(LH THREAD) | |
| 37. | 241-8253M | [2] | NUT(M27X2-THD) | |
| 38. | 270-9438 | [8] | SCREW-FLAT HEAD | |
| 39. | 5W-2177M | [20] | BOLT-SOCKET HEAD(M12X1.75X20-MM) | |
| 40. | 6V-7676M | [4] | NUT(M24X3-THD) | |
| 41. | 6V-8202M | [24] | BOLT-SOCKET HEAD(M8X1.25X16-MM) | |
| 42. | 7X-0515 | [2] | WASHER-HARD(17X35X5-MM THK) | |
| 43. | 7X-7729 | [12] | WASHER(11X25X3-MM THK) | |
| 44. | 8T-4136M | [10] | BOLT(M10X1.5X25-MM) | |
| 45. | 8T-4183M | [12] | BOLT(M12X1.75X40-MM) | |
| 46. | 8T-4195M | [2] | BOLT(M10X1.5X30-MM) | |
| 47. | 8T-4223 | [12] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 48. | 8T-5878M | [4] | BOLT(M24X3X80-MM) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
