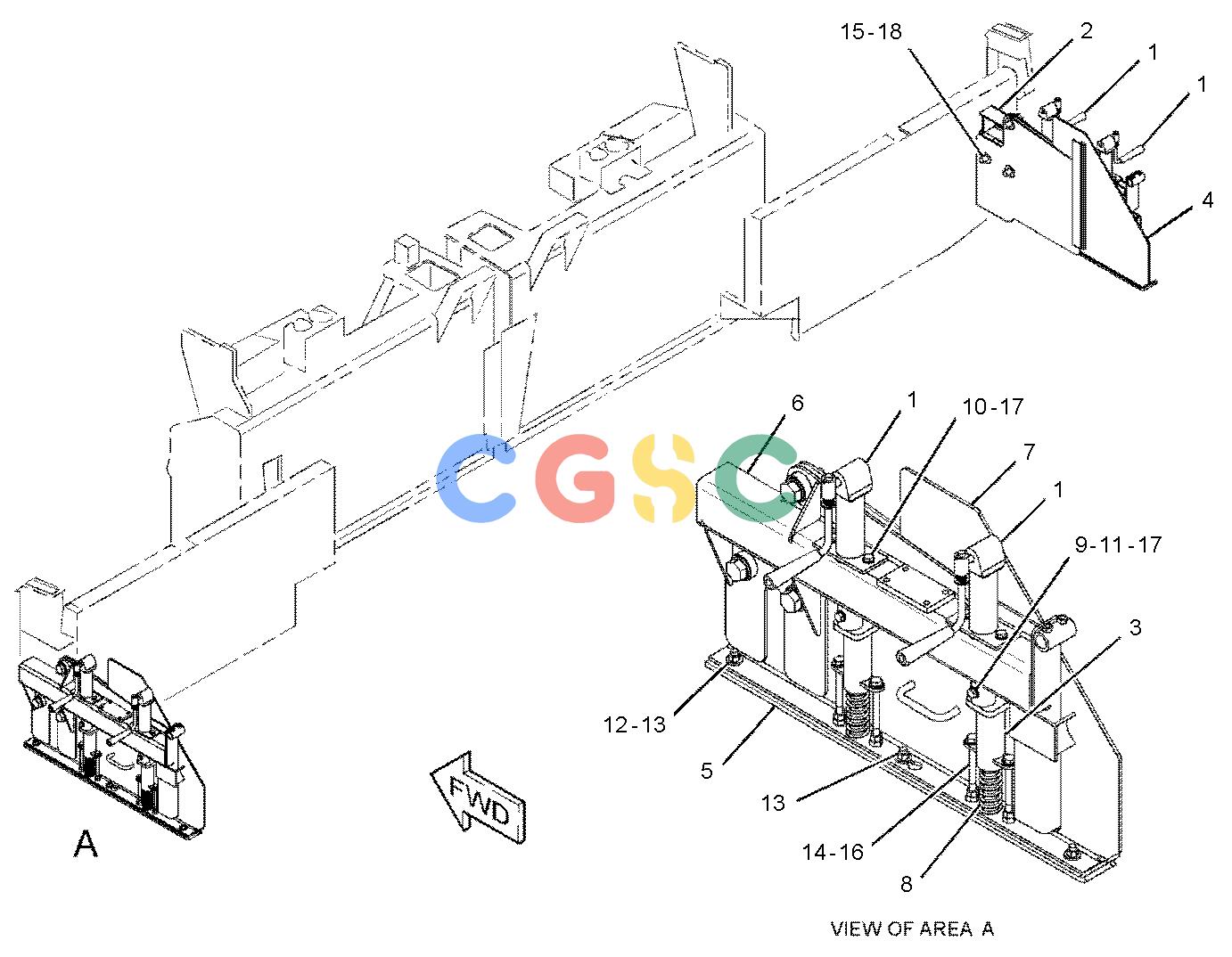

卡特零件查询（BG1055E） 328-3501: GATE GP-END
广数供应链运营团队, 16 02月, 2025，浏览：
519 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 247-7616 | [4] | ACTUATOR GP(END GATE) | |
| 2. | 333-0233 | [1] | FRAME AS(LH) | |
| 3. | 254-6836 | [4] | SUPPORT AS(RH) | |
| 4. | 333-0229 | [1] | PLATE AS(LH) | |
| 5. | 351-4472 | [2] | SHOE AS | |
| | | | (EACH INCLUDES) |
| | 112-9073M | [3] | STUD-WELD(M12X1.75X21.1-MM) | |
| 6. | 333-0234 | [1] | FRAME AS(RH) | |
| 7. | 333-0231 | [1] | PLATE AS(RH) | |
| 8. | 258-0735 | [4] | SPRING | |
| 9. | 6V-7744M | [4] | LOCKNUT(M10X1.5-THD) | |
| 10. | 8T-4136M | [8] | BOLT(M10X1.5X25-MM) | |
| 11. | 8T-6466M | [4] | BOLT(M10X1.5X60-MM) | |
| 12. | 5P-1076 | [6] | WASHER-HARD(13.5X30X4-MM THK) | |
| 13. | 8T-4244M | [14] | NUT(M12X1.75-THD) | |
| 14. | 8T-5001M | [8] | BOLT(M12X1.75X130-MM) | |
| 15. | 7X-2576M | [6] | BOLT(M24X3X70-MM) | |
| 16. | 8T-4223 | [8] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 17. | 8T-4121 | [16] | WASHER-HARD(11X21X2.5-MM THK) | |
| 18. | 8T-4167 | [6] | WASHER-HARD(26X44X4-MM THK) | |
| | M | | METRIC PART |
