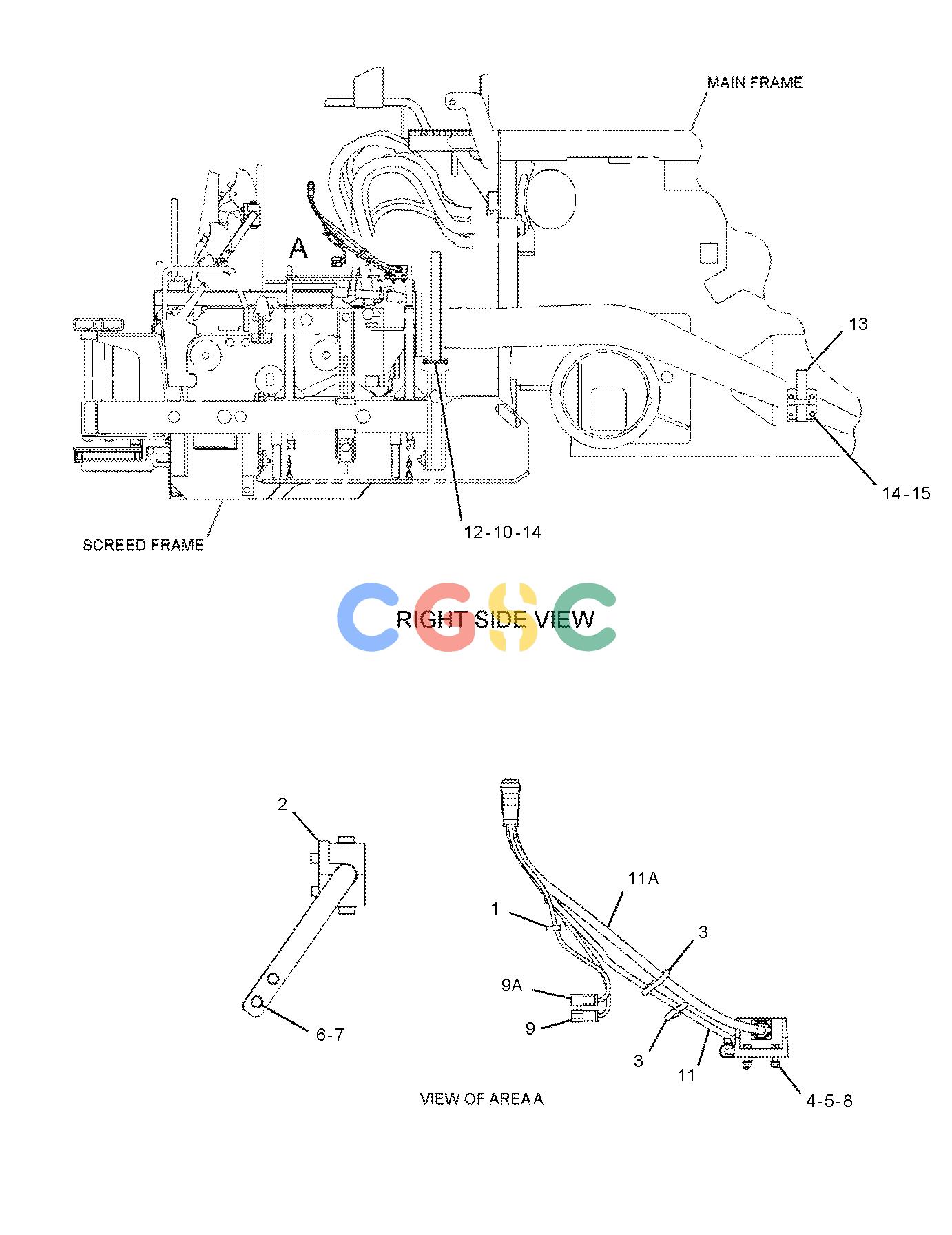

卡特零件查询（BG1055E） 279-2461: CONTROL GP-GRADE & SLOPE
广数供应链运营团队, 16 02月, 2025，浏览：
792 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 209-3130Y | [1] | CONTROL GP-GRADE & SLOPE | |
| 2. | 226-4881 | [1] | CABLE AS(LH) | |
| | 110-6864E | | CABLE(302-CM) | |
| | 104-6863 | [1] | CLAMP | |
| | 110-4296 | [1] | PLUG | |
| | 111-1308 | [2] | BUSHING | |
| | 111-3262 | [4] | NUT(6-32-THD) | |
| | 111-8205 | [1] | BACKSHELL | |
| | 118-2967 | [1] | PLUG AS-CONNECTOR | |
| 3. | 359-7832 | [1] | CABLE AS(RH) | |
| | 110-6864E | | CABLE(188-CM) | |
| | 104-6863 | [1] | CLAMP | |
| | 110-4296 | [1] | PLUG | |
| | 111-1308 | [2] | BUSHING | |
| | 111-3262 | [4] | NUT(6-32-THD) | |
| | 111-8205 | [1] | BACKSHELL | |
| | 118-2967 | [1] | PLUG AS-CONNECTOR | |
| 4. | 257-2030 | [2] | MOUNT AS | |
| 5. | 279-2458 | [2] | HARNESS AS-WIRING(GRADE CONTROL) | |
| | | | (EACH INCLUDES) |
| | 111-8204 | [1] | HOUSING | |
| | 111-1308 | [1] | BUSHING | |
| | 104-6863 | [1] | CLAMP | |
| | 8T-8729 | [4] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 110-4298 | [1] | PLUG | |
| | 102-8804 | [1] | KIT-RECEPTACLE(4-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 6. | 298-0643 | [2] | PLATE AS | |
| 7. | 5C-7261CM | [3] | NUT(M8X1.25-THD) | |
| 8. | 7K-1181B | [11] | STRAP-CABLE | |
| 9. | 8T-4197CM | [4] | BOLT(M8X1.25X40-MM) | |
| 10. | 8T-4121 | [8] | WASHER-HARD(11X21X2.5-MM THK) | |
| 11. | 8T-4133M | [4] | NUT(M10X1.5-THD) | |
| 12. | 8T-4179M | [8] | BOLT(M12X1.75X20-MM) | |
| 13. | 8T-4195M | [4] | BOLT(M10X1.5X30-MM) | |
| 14. | 8T-4223 | [14] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 15. | 8T-4224C | [7] | WASHER-HARD(8.8X16X2-MM THK) | |
| 16. | 8T-4956M | [6] | BOLT(M12X1.75X35-MM) | |
| | B | | USE AS REQUIRED |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
