卡特零件查询（BG1055E） 298-0645: CONTROL GP-GRADE & SLOPE
广数供应链运营团队, 16 02月, 2025，浏览：
491 次

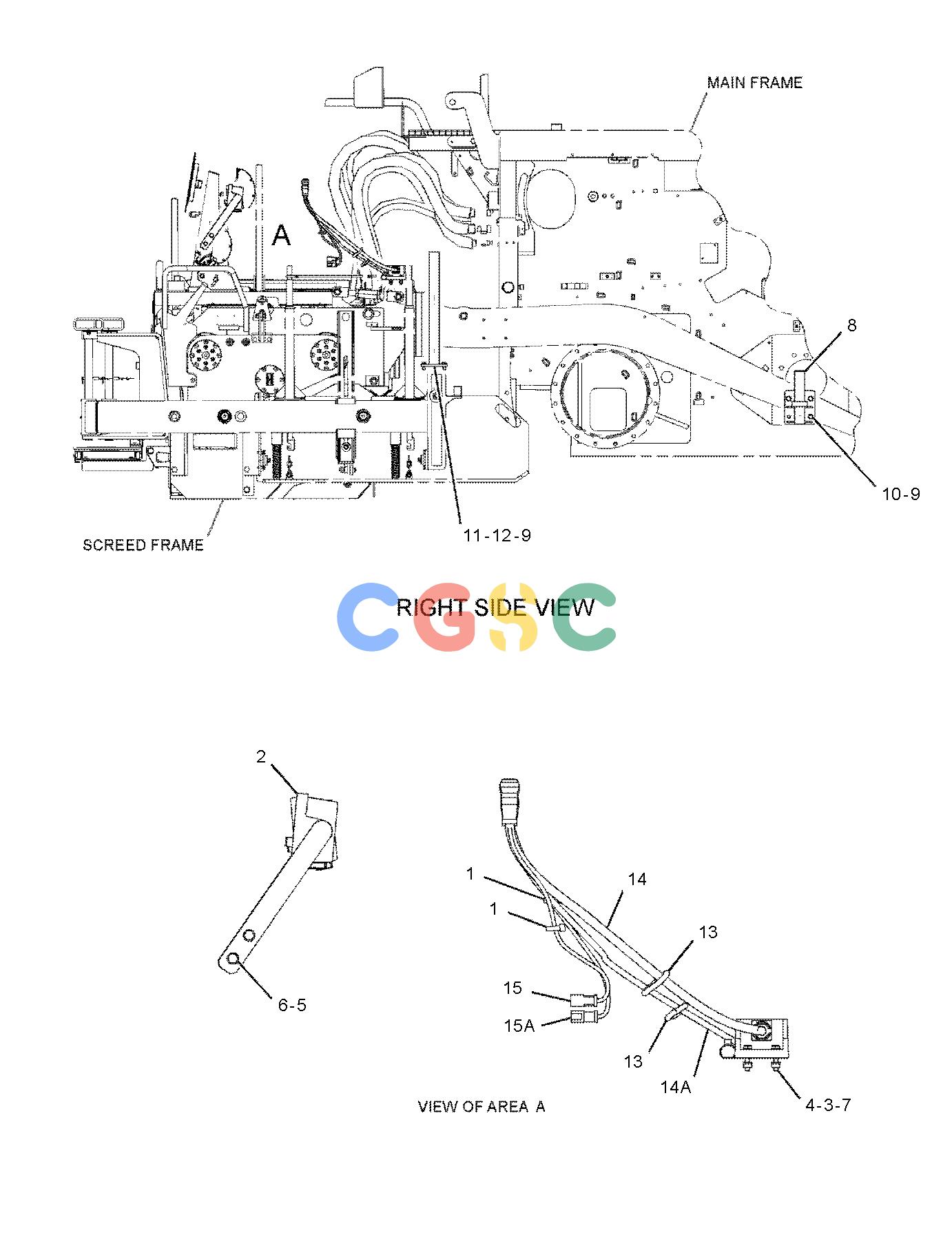

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7K-1181 | [8] | STRAP-CABLE | |
| 2. | 209-3130Y | [1] | CONTROL GP-GRADE & SLOPE | |
| 3. | 237-7508 | [2] | LINK | |
| 4. | 8T-4224 | [7] | WASHER-HARD(8.8X16X2-MM THK) | |
| 5. | 8T-4197M | [4] | BOLT(M8X1.25X40-MM) | |
| 6. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 7. | 8T-4136M | [4] | BOLT(M10X1.5X25-MM) | |
| 8. | 5C-7261M | [3] | NUT(M8X1.25-THD) | |
| 9. | 298-0647Y | [1] | CABLE GP-CONTROL(LH) | |
| 9A. | 298-0647Y | [1] | CABLE GP-CONTROL(RH) | |
| 10. | 8T-4139M | [4] | BOLT(M12X1.75X30-MM) | |
| 11. | 298-0648Y | [1] | CABLE GP-CONTROL(LH) | |
| 11A. | 298-0648Y | [1] | CABLE GP-CONTROL(RH) | |
| 12. | 298-0643 | [2] | PLATE AS | |
| 13. | 257-2030 | [2] | MOUNT AS | |
| 14. | 8T-4223 | [10] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 15. | 8T-4956M | [6] | BOLT(M12X1.75X35-MM) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
