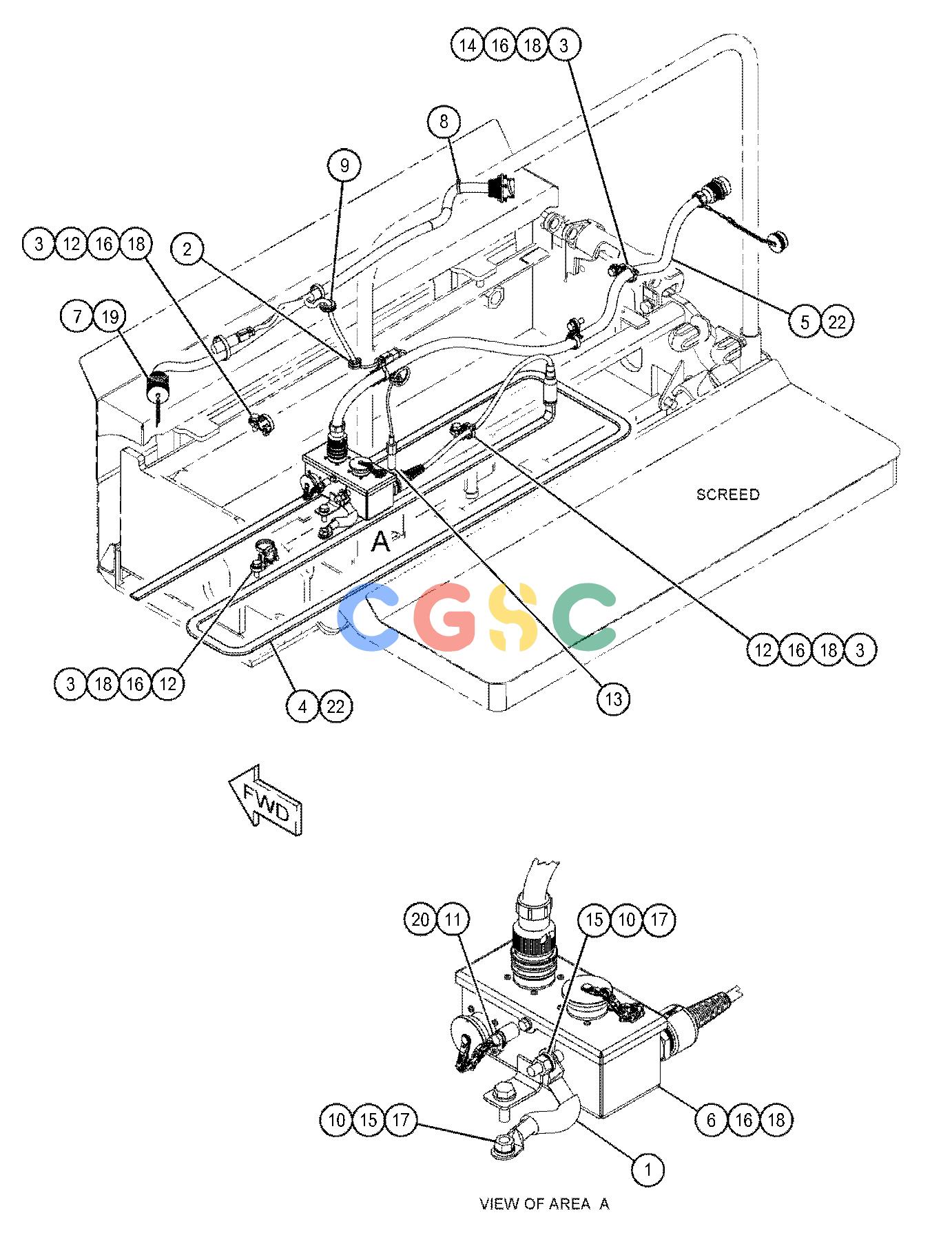

卡特零件查询（AP-1055F） 473-9117: WIRING GP-SCREED HEATER
广数供应链运营团队, 16 02月, 2025，浏览：
989 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1S-2342 | [1] | STRAP AS-GROUND | |
| 2. | 3S-2093 | [4] | STRAP-CABLE | |
| 3. | 7K-1181 | [9] | STRAP-CABLE | |
| 4. | 559-5550 | [1] | HEATER AS-SCREED(675-VOLT, 5709-WATT) | |
| | 418-6704 | [1] | PLUG AS-CONNECTOR(3-PIN) | |
| 5. | 399-9056Y | [1] | HARNESS AS-WIRING(POWER) | |
| 6. | 416-0511Y | [1] | BOX GP-JUNCTION(EXTENSION) | |
| 7. | 442-7954 | [2] | NUT-RING | |
| 8. | 477-1928Y | [1] | HARNESS AS-WIRING(EXTENSION) | |
| 9. | 061-8844 | [1] | GROMMET | |
| 10. | 124-7346 | [2] | LOCKWASHER | |
| 11. | 160-8755M | [1] | BOLT(M6X1.0X10-MM) | |
| 12. | 204-8000 | [3] | MOUNTING-CABLE TIE | |
| 13. | 336-2011 | [1] | SENSOR GP-TEMPERATURE(SCREED HEAT) | |
| | 9X-3401 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 14. | 381-2621 | [3] | MOUNTING-CABLE TIE | |
| 15. | 7P-1695 | [2] | WASHER(10.5X19X3-MM THK) | |
| 16. | 8T-4121 | [8] | WASHER-HARD(11X21X2.5-MM THK) | |
| 17. | 8T-4133M | [2] | NUT(M10X1.5-THD) | |
| 18. | 8T-4195M | [8] | BOLT(M10X1.5X30-MM) | |
| 19. | 9X-6257 | [8] | SCREW-MACHINE(6-32X0.625-IN) | |
| 20. | 9X-8256 | [1] | WASHER(6.6X12X2-MM THK) | |
| 22. | 5P-1275BH | | LOCKWIRE | |
| | B | | USE AS REQUIRED |
| | H | | ORDER BY THE DECIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
