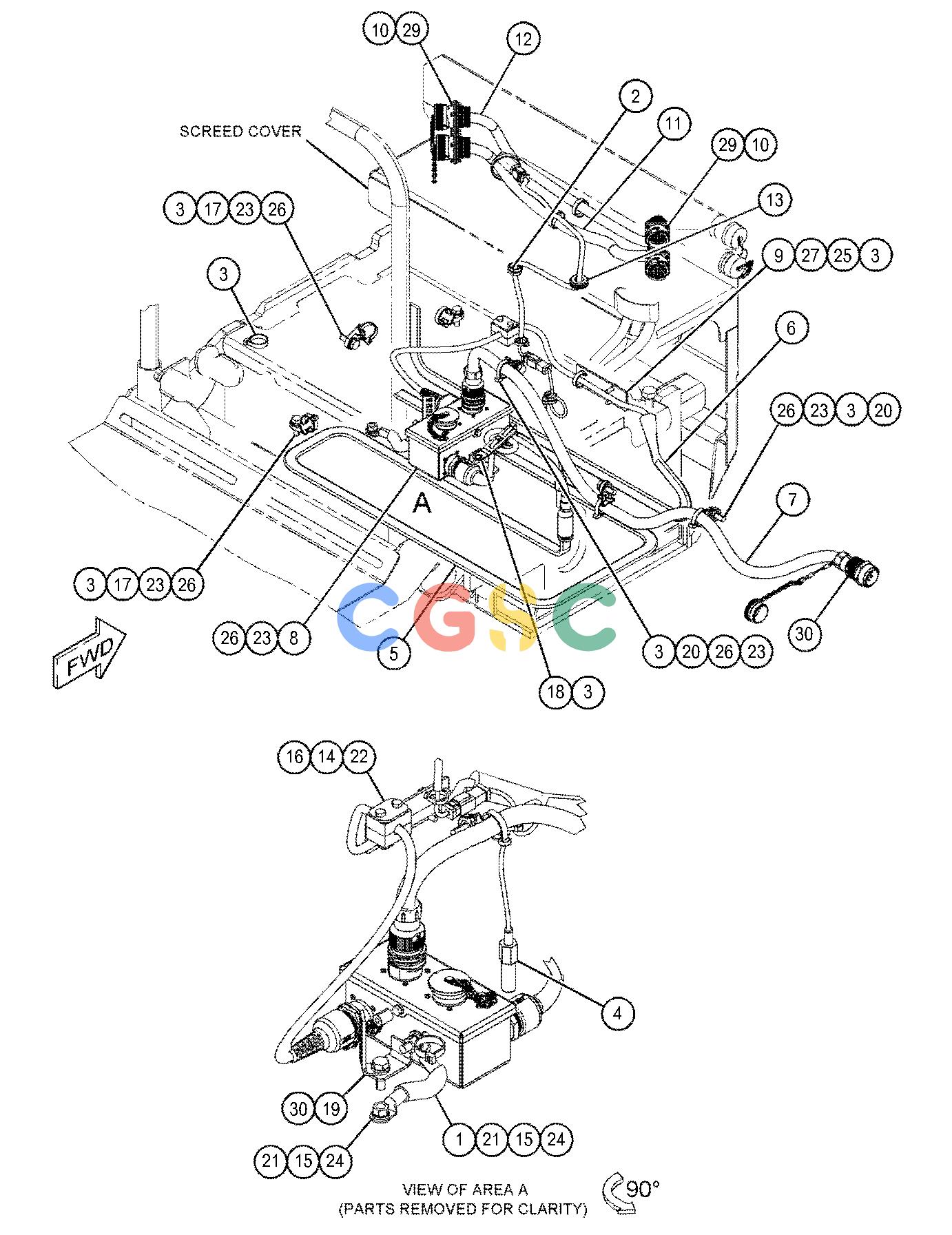

卡特零件查询（AP-1055F） 477-2636: WIRING GP-SCREED HEATER
广数供应链运营团队, 16 02月, 2025，浏览：
275 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1S-2342 | [1] | STRAP AS-GROUND | |
| 2. | 3S-2093 | [5] | STRAP-CABLE | |
| 3. | 7K-1181 | [13] | STRAP-CABLE | |
| 4. | 336-2011 | [1] | SENSOR GP-TEMPERATURE(SCREED HEAT) | |
| | 9X-3401 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 5. | 559-5547 | [1] | HEATER AS(675-VOLT, 3425-WATT) | |
| | 418-6704 | [1] | PLUG AS-CONNECTOR(3-PIN) | |
| 6. | 559-5549 | [1] | HEATER AS(675-VOLT, 664-WATT) | |
| | 418-6712 | [1] | PLUG AS-CONNECTOR | |
| 7. | 399-9034Y | [1] | HARNESS AS-WIRING(END GATE) | |
| 8. | 416-0511Y | [1] | BOX GP-JUNCTION(EXTENSION) | |
| 9. | 417-1001 | [1] | PLATE | |
| 10. | 442-7954 | [4] | NUT-RING | |
| 11. | 473-9115Y | [1] | HARNESS AS-WIRING(EXTENSION) | |
| 12. | 473-9116 | [1] | HARNESS AS-SCREED | |
| | 196-8876E | | BRAID(BLACK, ONE GOLD STRAND)(69-CM) | |
| | 474-7561 | [2] | RECEPTACLE AS-CONNECTOR(28-PIN) | |
| | 474-7565 | [1] | CAP AS-CONNECTOR | |
| 13. | 061-8844 | [1] | GROMMET | |
| 14. | 107-4749 | [1] | PLATE | |
| 15. | 124-7346 | [2] | LOCKWASHER | |
| 16. | 1G-8781 | [2] | CLAMP(HALF) | |
| 17. | 204-8000 | [3] | MOUNTING-CABLE TIE | |
| 18. | 352-3965 | [1] | CLIP(LADDER)(LADDER) | |
| 19. | 352-3969 | [1] | CLIP(LADDER) | |
| 20. | 381-2621 | [3] | MOUNTING-CABLE TIE | |
| 21. | 7P-1695 | [2] | WASHER(10.5X19X3-MM THK) | |
| 22. | 7X-2533M | [2] | BOLT(M6X1X35-MM) | |
| 23. | 8T-4121 | [8] | WASHER-HARD(11X21X2.5-MM THK) | |
| 24. | 8T-4133M | [2] | NUT(M10X1.5-THD) | |
| 25. | 8T-4138M | [2] | BOLT(M6X1X20-MM) | |
| 26. | 8T-4195M | [8] | BOLT(M10X1.5X30-MM) | |
| 27. | 8T-4205 | [2] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 29. | 9X-6257 | [16] | SCREW-MACHINE(6-32X0.625-IN) | |
| 30. | 5P-1275BH | | LOCKWIRE | |
| | B | | USE AS REQUIRED |
| | E | | ORDER BY THE CENTIMETER |
| | H | | ORDER BY THE DECIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
