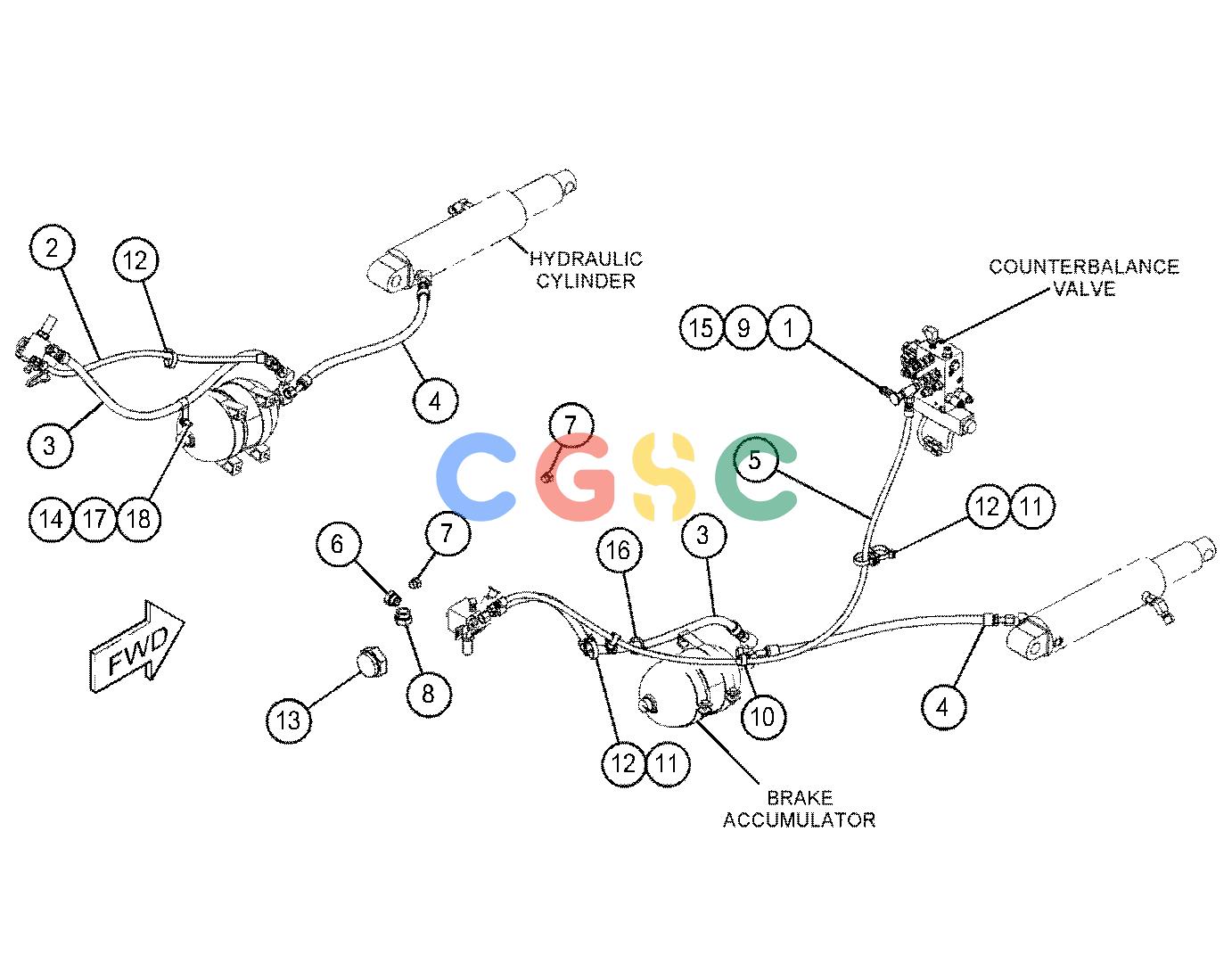

卡特零件查询（AP-1055F） 392-4700: LINES GP-TRACK TENSION
广数供应链运营团队, 16 02月, 2025，浏览：
131 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 168-1968 | [1] | TEE AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 126-6872 | [1] | TEE | |
| 2. | 352-8112I | [1] | HOSE AS | |
| 3. | 423-4891I | [2] | HOSE AS | |
| 4. | 423-4893I | [2] | HOSE AS | |
| 5. | 447-0620I | [1] | HOSE AS | |
| 6. | | [1] | PLUG AS |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 9S-4183 | [1] | PLUG(1-1/16-12-THD) | |
| 7. | 148-8411 | [2] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 9S-4185 | [1] | PLUG(3/4-16-THD) | |
| 8. | 164-4180 | [1] | PLUG AS | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| | 9S-4181 | [1] | PLUG(1-5/16-12-THD) | |
| 9. | 164-5567 | [1] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| | 214-7568 | [1] | SEAL-O-RING | |
| 10. | 177-2215 | [1] | STRAP-DUAL CLAMP | |
| 11. | 200-6345 | [3] | SADDLE-MOUNTING(DUAL SWIVEL) | |
| 12. | 204-2281 | [7] | STRAP-CABLE | |
| 13. | 205-0672 | [1] | PLUG AS | |
| | 9S-7583 | [1] | PLUG | |
| | 030-4606 | [1] | SEAL-O-RING | |
| 14. | 313-9198 | [1] | CLIP | |
| 15. | 6V-0852 | [1] | CAP-DUST | |
| 16. | 7K-1181 | [1] | STRAP-CABLE | |
| 17. | 8T-4121 | [1] | WASHER-HARD(11X21X2.5-MM THK) | |
| 18. | 8T-4136M | [1] | BOLT(M10X1.5X25-MM) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
