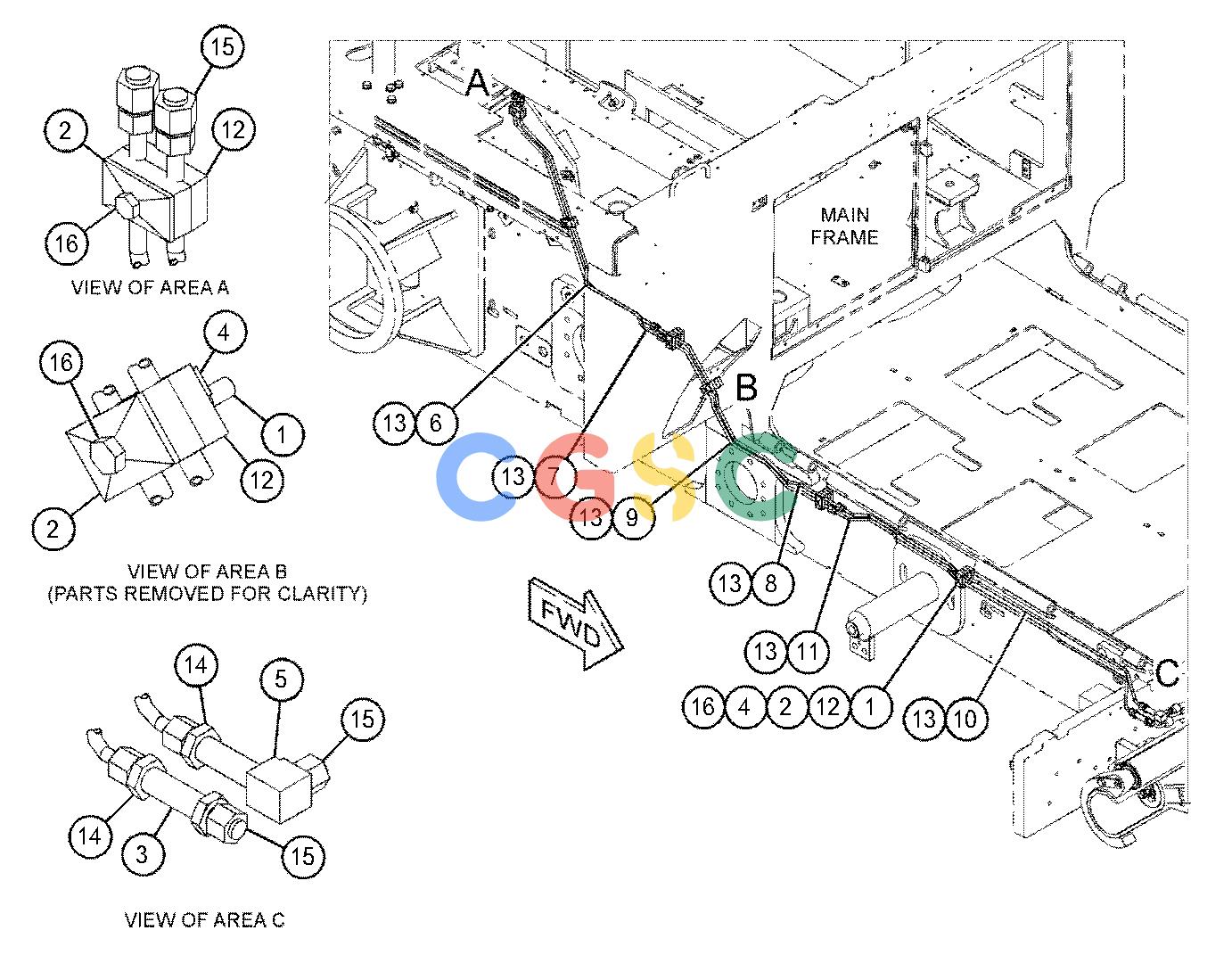

卡特零件查询（AP-1055F） 396-7137: LINES GP-TRUCK HITCH
广数供应链运营团队, 16 02月, 2025，浏览：
719 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 154-4890M | [4] | BOLT-STACKING(M8X1.25X33-MM) | |
| 2. | 102-8703 | [6] | PLATE-COVER | |
| 3. | 105-7167 | [1] | FITTING AS(UNION) | |
| | 6V-8397 | [2] | SEAL-O-RING | |
| | 8T-5890 | [1] | UNION | |
| 4. | 206-0452 | [4] | PLATE | |
| 5. | | [1] | ELBOW AS |
| | 6V-8397 | [1] | SEAL-O-RING | |
| 6. | 460-9677 | [1] | TUBE AS | |
| 7. | 460-9678 | [1] | TUBE AS | |
| 8. | 460-9679 | [1] | TUBE AS | |
| 9. | 460-9680 | [1] | TUBE AS | |
| 10. | 460-9681 | [1] | TUBE AS | |
| 11. | 460-9682 | [1] | TUBE AS | |
| 12. | 206-6409 | [20] | CLAMP-HALF | |
| 13. | 6V-8397 | [6] | SEAL-O-RING | |
| 14. | 6V-9168 | [2] | NUT(11/16-16-THD) | |
| 15. | 6V-9829 | [4] | CAP(ORFS) | |
| 16. | 7X-2537M | [6] | BOLT(M8X1.25X35-MM) | |
| | M | | METRIC PART |
