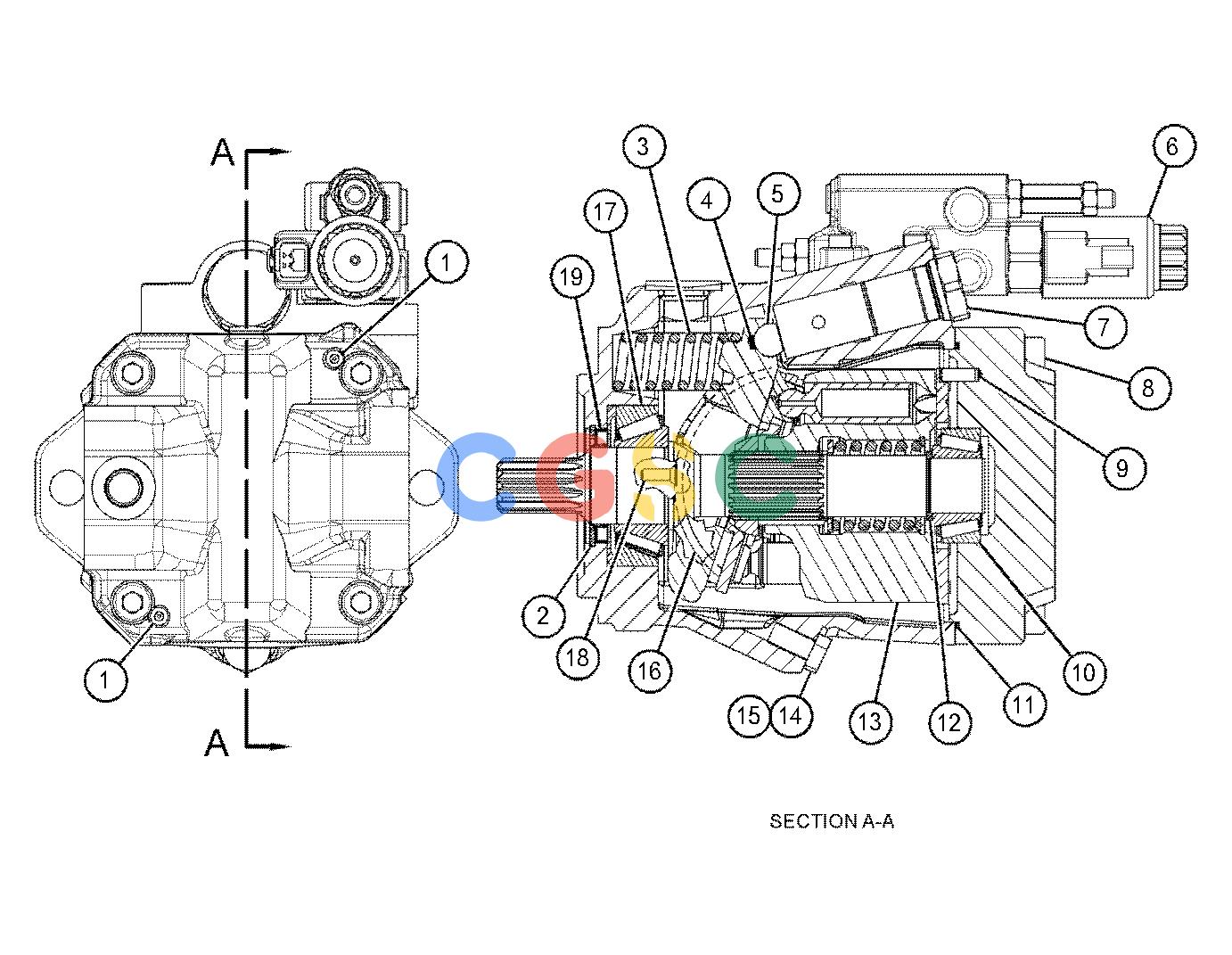

卡特零件查询（AP-1055F） 396-7175: PUMP GP-PISTON
广数供应链运营团队, 16 02月, 2025，浏览：
1008 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 168-3504 | [2] | SEAL | |
| 2. | 8T-9597 | [1] | RING-RETAINING | |
| 3. | 359-1006 | [1] | SPRING | |
| 4. | 379-5187 | [1] | SPRING | |
| 5. | 333-7840 | [1] | STOP | |
| 6. | 440-8204Y | [1] | VALVE GP-PUMP CONTROL(HYDRAULIC FAN) | |
| 7. | 441-5569 | [1] | KIT-LIMITER | |
| | | | (INCLUDES PISTON, SCREW & O-RING SEAL) |
| 8. | 101-7404M | [4] | BOLT-SOCKET HEAD(M10X1.5X30-MM) | |
| 9. | 9X-8979 | [1] | DOWEL | |
| 10. | 191-7583 | [1] | BEARING-TAPERED | |
| 11. | 231-4707 | [1] | SEAL-O-RING | |
| 12. | 554-2336 | [1] | KIT-SHIM | |
| | | | (INCLUDES SHIMS) |
| 13. | 355-9786Y | [1] | ROTATING GP-PUMP(TAMPER) | |
| 14. | 356-6909 | [1] | SCREW-STOP | |
| 15. | 317-0808 | [1] | SEAL-O-RING | |
| 16. | 351-6663 | [2] | BEARING-CRADLE | |
| 17. | 155-9125 | [1] | BEARING AS-ROLLER | |
| 18. | 6R-7943M | [2] | SCREW(M5X0.8X15-MM) | |
| 19. | 185-0303 | [1] | SEAL-OIL | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
