卡特零件查询（AP-1055F） 505-9952: APRON GP
广数供应链运营团队, 16 02月, 2025，浏览：
805 次

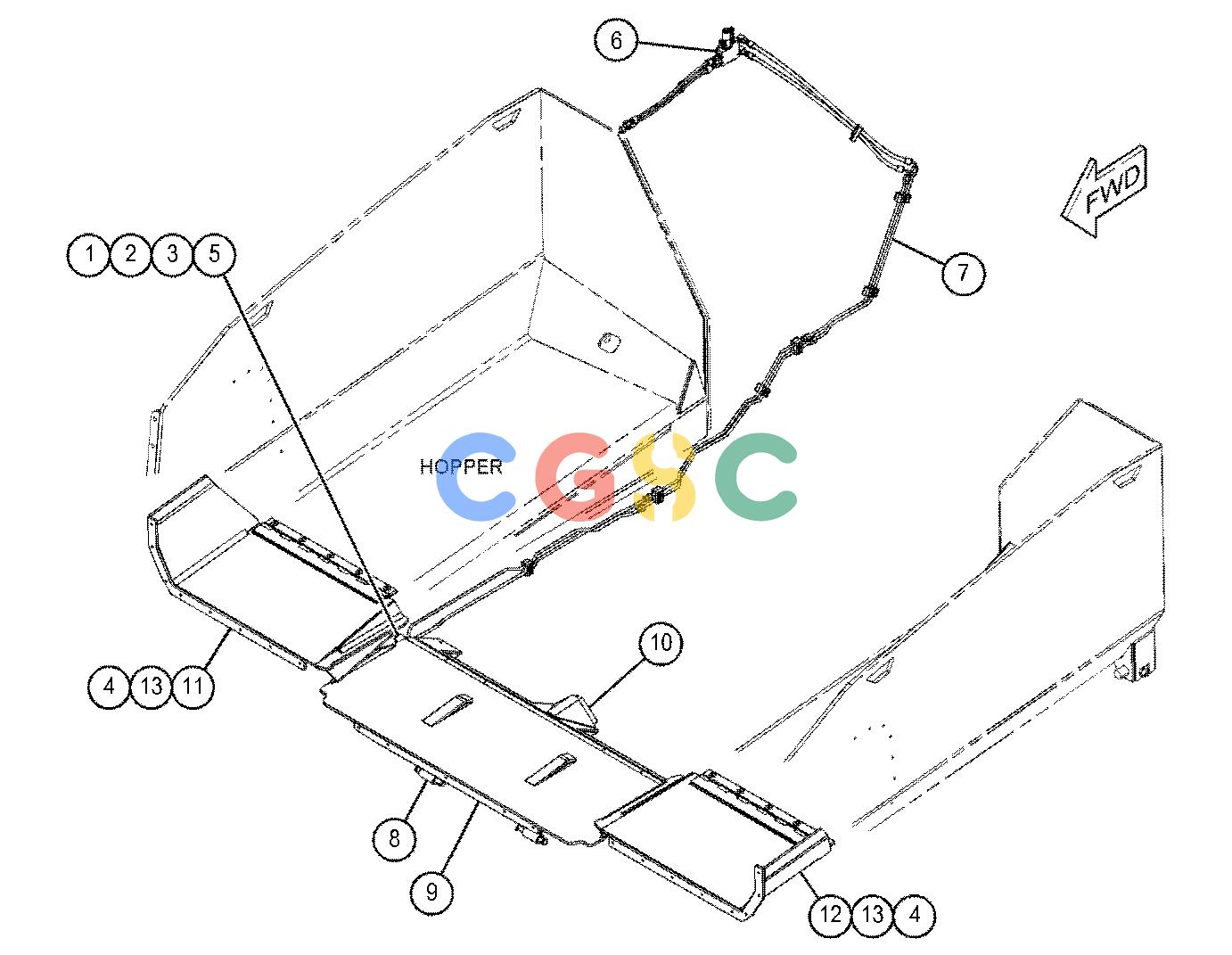

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8T-4196M | [1] | BOLT(M10X1.5X35-MM) | |
| 2. | 7W-9738 | [1] | WASHER(10.5X38X1.6-MM THK) | |
| 3. | 106-1242 | [1] | SPACER(13.8X23.75X12.7-MM THK) | |
| 4. | 145-1893M | [10] | SCREW(M12X1.75X40-MM) | |
| 5. | 338-1086 | [1] | PIN AS | |
| 6. | 396-7135Y | [1] | VALVE & MOUNTING GP(APRON FOLD) | |
| 7. | 396-7136Y | [1] | LINES GP-APRON | |
| 8. | 399-8594Y | [1] | CYLINDER & MTG GP-APRON(APRON FOLD) | |
| 9. | 505-5883 | [1] | PLATE AS | |
| 10. | 505-5885 | [1] | PLATE AS | |
| 11. | 505-9955 | [1] | PLATE AS | |
| | 505-9961 | [1] | HINGE AS | |
| 12. | 505-9958 | [1] | PLATE AS | |
| | 505-9961 | [1] | HINGE AS | |
| 13. | 505-9976 | [2] | BAR | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
