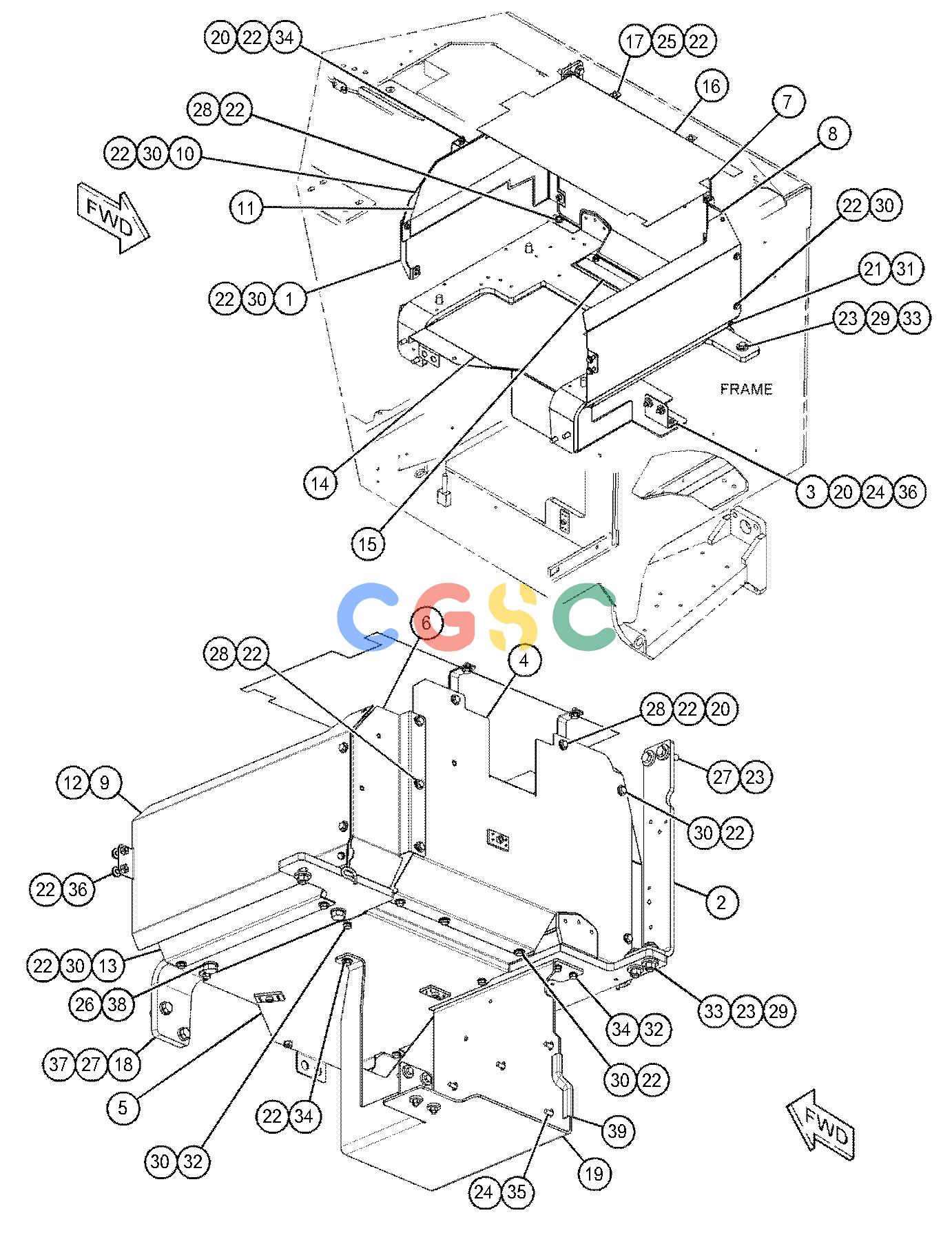

卡特零件查询（AP-1055F） 391-0216: FRAME GP-MOUNTING
广数供应链运营团队, 16 02月, 2025，浏览：
380 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 419-7300 | [1] | BRACKET | |
| 2. | 419-7301 | [1] | BRACKET | |
| 3. | 419-7304 | [1] | BRACKET | |
| 4. | 419-9403 | [1] | SHIELD AS | |
| | 8T-3612M | [4] | NUT-WELD(M8X1.25-THD) | |
| | 102-8704 | [1] | PLATE | |
| 5. | 419-9404 | [1] | SHIELD AS | |
| | 8T-3612M | [4] | NUT-WELD(M8X1.25-THD) | |
| | 102-8704 | [2] | PLATE | |
| 6. | 419-9408 | [1] | SHIELD AS | |
| | 6V-9632M | [2] | NUT-WELD(M6X1-THD) | |
| | 8T-3612M | [2] | NUT-WELD(M8X1.25-THD) | |
| 7. | 419-9409 | [1] | INSULATION | |
| 8. | 419-9410 | [1] | INSULATION | |
| 9. | 419-9411 | [1] | SHIELD AS | |
| | 8T-3612M | [3] | NUT-WELD(M8X1.25-THD) | |
| 10. | 419-9412 | [1] | SHIELD AS | |
| | 8T-3612M | [5] | NUT-WELD(M8X1.25-THD) | |
| 11. | 419-9413 | [1] | INSULATION | |
| 12. | 419-9414 | [1] | INSULATION | |
| 13. | 419-9415 | [1] | SHIELD AS | |
| | 6V-9632M | [1] | NUT-WELD(M6X1-THD) | |
| 14. | 423-7053 | [1] | INSULATION | |
| 15. | 423-7054 | [1] | INSULATION | |
| 16. | 423-7805 | [1] | INSULATION | |
| 17. | 431-1633 | [2] | BRACKET | |
| 18. | 448-9379 | [1] | SUPPORT AS | |
| | 7T-1099 | [2] | LINK | |
| | 102-8706 | [1] | PLATE AS | |
| 19. | 448-9380 | [1] | BRACKET AS | |
| | 8T-3490M | [1] | NUT-WELD(M10X1.5-THD) | |
| | 347-4734 | [1] | CLIP | |
| 20. | 5C-7261M | [7] | NUT(M8X1.25-THD) | |
| 21. | 5C-9553M | [1] | BOLT(M6X1X16-MM) | |
| 22. | 5P-4116 | [26] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 23. | 7X-0550 | [8] | WASHER-HARD(13.5X32X5-MM THK) | |
| 24. | 7X-0613 | [14] | WASHER-HARD(8.8X25.5X5-MM THK) | |
| 25. | 7X-2536M | [2] | BOLT(M8X1.25X14-MM) | |
| 26. | 7X-2553M | [4] | BOLT(M16X2X40-MM) | |
| 27. | 8T-4183M | [6] | BOLT(M12X1.75X40-MM) | |
| 28. | 8T-4189M | [6] | BOLT(M8X1.25X20-MM) | |
| 29. | 8T-4194M | [3] | BOLT(M12X1.75X50-MM) | |
| 30. | 8T-4200M | [16] | BOLT(M8X1.25X16-MM) | |
| 31. | 8T-4205 | [1] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 32. | 8T-4224 | [9] | WASHER-HARD(8.8X16X2-MM THK) | |
| 33. | 8T-4244M | [3] | NUT(M12X1.75-THD) | |
| 34. | 8T-4908M | [6] | BOLT(M8X1.25X25-MM) | |
| 35. | 8T-5093M | [6] | BOLT-LOCKING(M8X1.25X25-MM) | |
| 36. | 8T-7547M | [6] | BOLT(M8X1.25X30-MM) | |
| 37. | 8T-7971 | [4] | WASHER-HARD(13.5X25.5X5-MM THK) | |
| 38. | 9X-8257 | [4] | WASHER(17.5X30X3.5-MM THK) | |
| 39. | 8T-3426D | | CHANNEL-TRIM(0.2-M) | |
| | D | | ORDER BY THE METER |
| | M | | METRIC PART |
