卡特零件查询（AP-1055F） 461-5074: TURBOCHARGER GP
广数供应链运营团队, 16 02月, 2025，浏览：
463 次

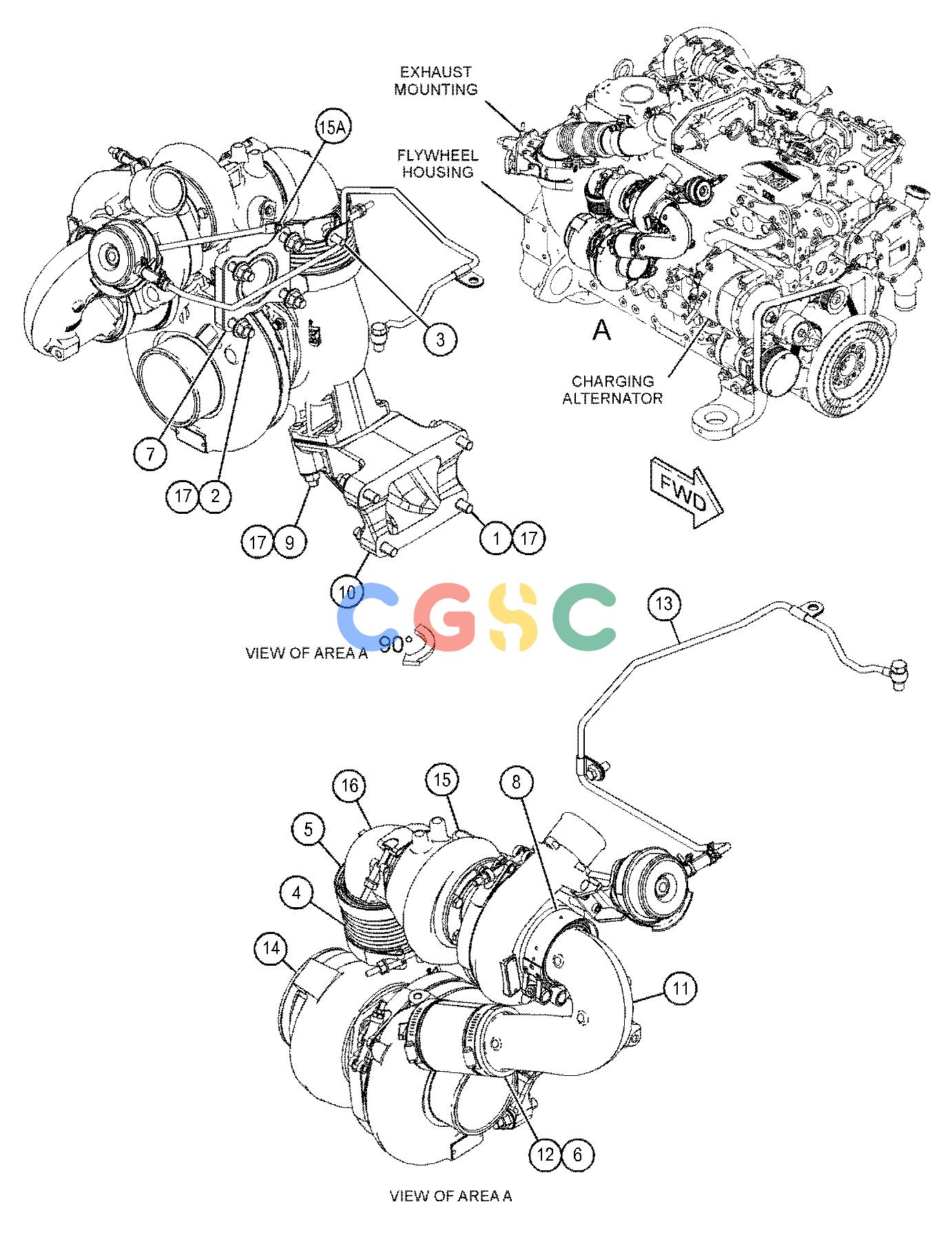

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 101-5115M | [4] | STUD(M10X1.5X40-MM) | |
| 2. | 103-1912M | [4] | STUD(M10X1.5X30-MM) | |
| 3. | 124-3815M | [1] | BOLT(M8X1.25X16-MM) | |
| 4. | 223-5664 | [1] | BELLOWS | |
| 5. | 241-2634 | [3] | CLAMP-V BAND | |
| 6. | 317-9229 | [2] | CLAMP-HOSE | |
| 7. | 329-3723 | [1] | GASKET | |
| 8. | 343-5910 | [1] | CLAMP-V BAND | |
| 9. | 348-4636 | [4] | STUD | |
| 10. | 350-8541 | [1] | BRACKET | |
| 11. | 356-2122 | [1] | DUCT(COMPRESSOR) | |
| 12. | 356-5345 | [1] | HOSE | |
| 13. | 374-0185Y | [1] | LINES GP-TURBOCHARGER | |
| 14. | 457-3636 | [1] | TURBOCHARGER AS | |
| 15. | 461-1107 | [1] | TURBOCHARGER AS | |
| 15A. | 487-8468 | [1] | RING | |
| | 520-9956 | [1] | ACTUATOR AS | |
| 16. | | [1] | DUCT |
| 17. | 6I-0563M | [12] | NUT(M10X1.5-THD) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
