卡特零件查询（AP-1055F） 394-1236: LINES GP-EXHAUST
广数供应链运营团队, 16 02月, 2025，浏览：
354 次

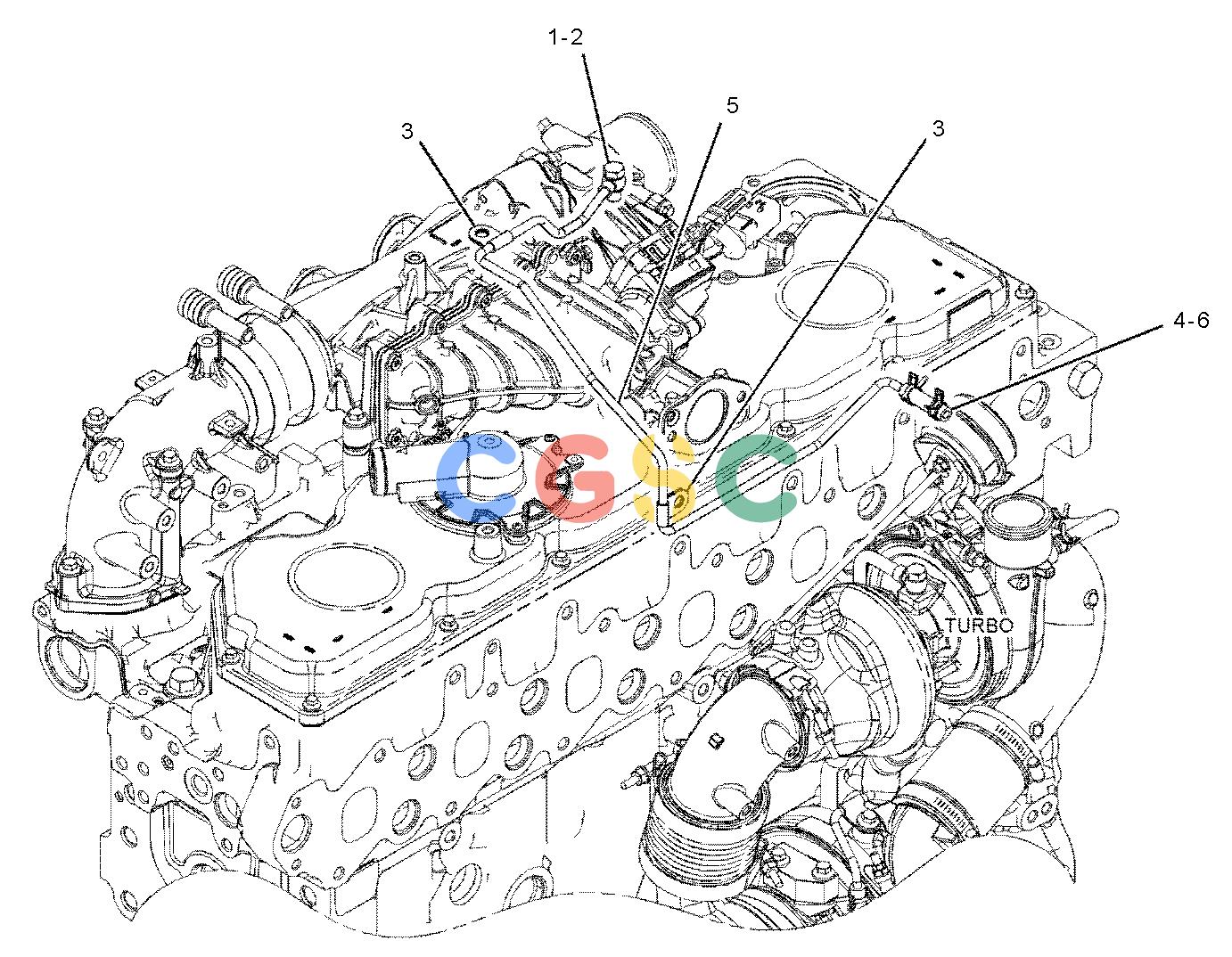

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 9Y-0176 | [2] | CLAMP AS | |
| 2. | 337-7304 | [1] | CLAMP-BAND | |
| 3. | 390-1582Y | [1] | EXHAUST GP-FLEXIBLE | |
| 4. | 416-8295 | [1] | SHIELD | |
| 5. | 416-8298 | [1] | BRACKET | |
| 6. | 419-7312 | [1] | BRACKET | |
| 7. | 419-7313 | [1] | BRACKET | |
| 8. | 436-1235 | [1] | TUBE AS | |
| 9. | 436-2455 | [1] | INSULATION | |
| 10. | 436-2456 | [1] | INSULATION | |
| 11. | 344-5674M | [1] | NUT(M8X1.25-THD) | |
| 12. | 5P-1075 | [4] | WASHER-HARD(10.2X22.5X3-MM THK) | |
| 13. | 5P-4116 | [8] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 14. | 7X-2536M | [1] | BOLT(M8X1.25X14-MM) | |
| 15. | 8T-4139M | [2] | BOLT(M12X1.75X30-MM) | |
| 16. | 8T-4189M | [5] | BOLT(M8X1.25X20-MM) | |
| 17. | 8T-4223 | [2] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 18. | 8T-4908M | [1] | BOLT(M8X1.25X25-MM) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
