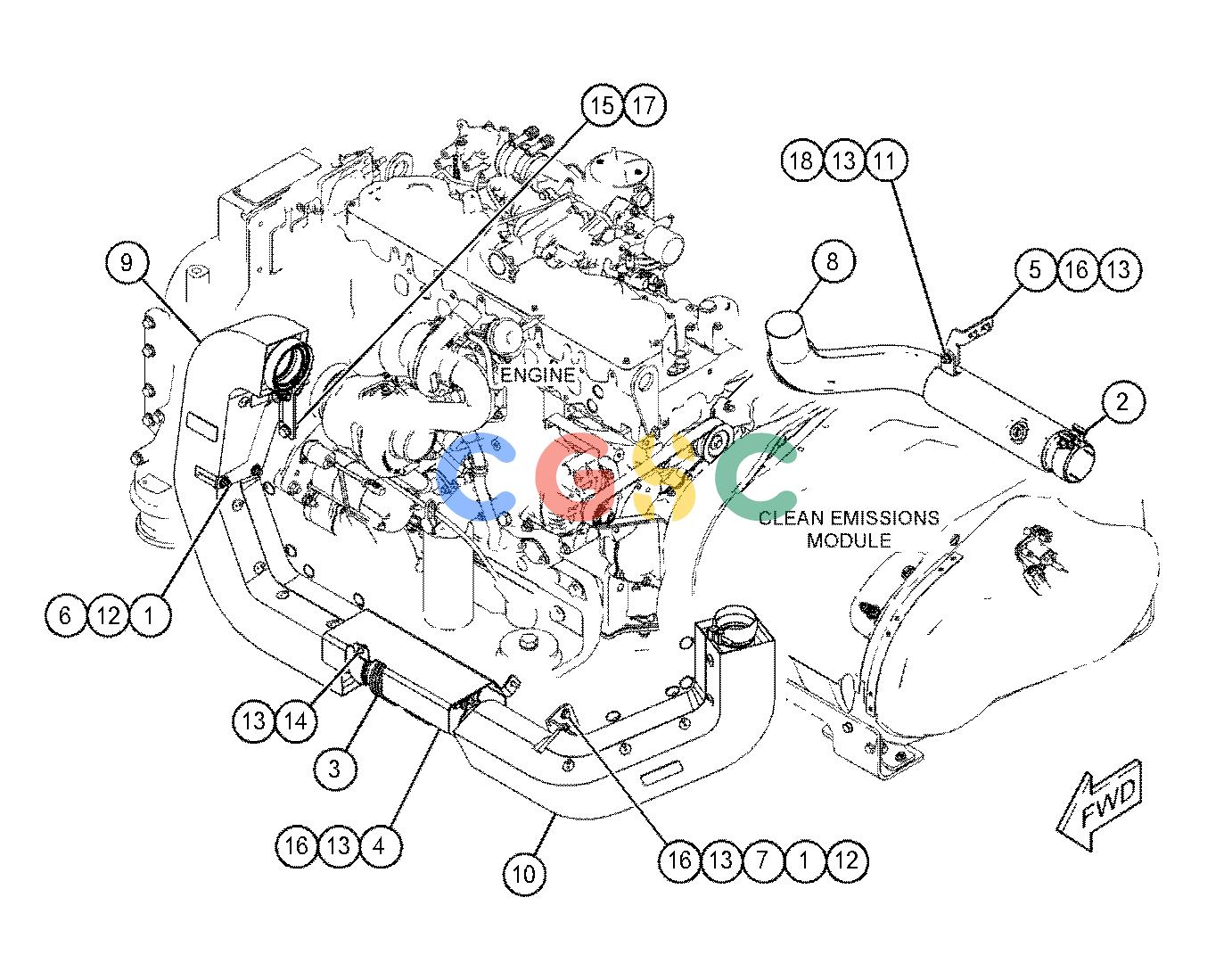

卡特零件查询（AP-1055F） 499-6649: LINES GP-DIESEL EXHAUST FLUID
广数供应链运营团队, 16 02月, 2025，浏览：
546 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 206-6876 | [1] | CAP-TUBE | |
| 2. | 365-0162 | [1] | CONNECTOR-SPECIAL | |
| 3. | 398-9445 | [1] | PLATE AS | |
| 4. | 398-9448 | [1] | MANIFOLD | |
| 5. | 398-9449 | [1] | CAP | |
| 6. | 428-8808 | [1] | CLAMP-HOSE | |
| 7. | 499-6598 | [1] | HOSE | |
| 8. | 499-6599 | [1] | HOSE | |
| 9. | 506-5802 | [1] | HOSE AS | |
| 10. | 105-3487M | [3] | BOLT-SOCKET HEAD(M6X1X20-MM) | |
| 11. | 113-8694M | [5] | BOLT(M6X1X20-MM) | |
| 12. | 124-6257 | [3] | CLAMP-HOSE | |
| 13. | 162-0177 | [2] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 9S-8004 | [1] | PLUG(9/16-18-THD) | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| 14. | 173-3993 | [1] | PLUG AS | |
| | 9S-8001 | [1] | PLUG | |
| | 4J-7533 | [1] | SEAL-O-RING | |
| 15. | 198-4775 | [1] | WASHER-HARD(6.6X15X6-MM THK) | |
| 16. | 1H-1023 | [1] | SEAL-O-RING | |
| 17. | 235-4451M | [2] | BOLT-FLANGE HEAD(M6X1X16-MM) | |
| 18. | 260-6671M | [1] | BOLT(M6X1X12-MM) | |
| 19. | 3J-1907 | [1] | SEAL-O-RING | |
| 20. | 7X-2503 | [4] | CLIP | |
| 21. | 506-5812 | [1] | HOSE AS | |
| | M | | METRIC PART |
