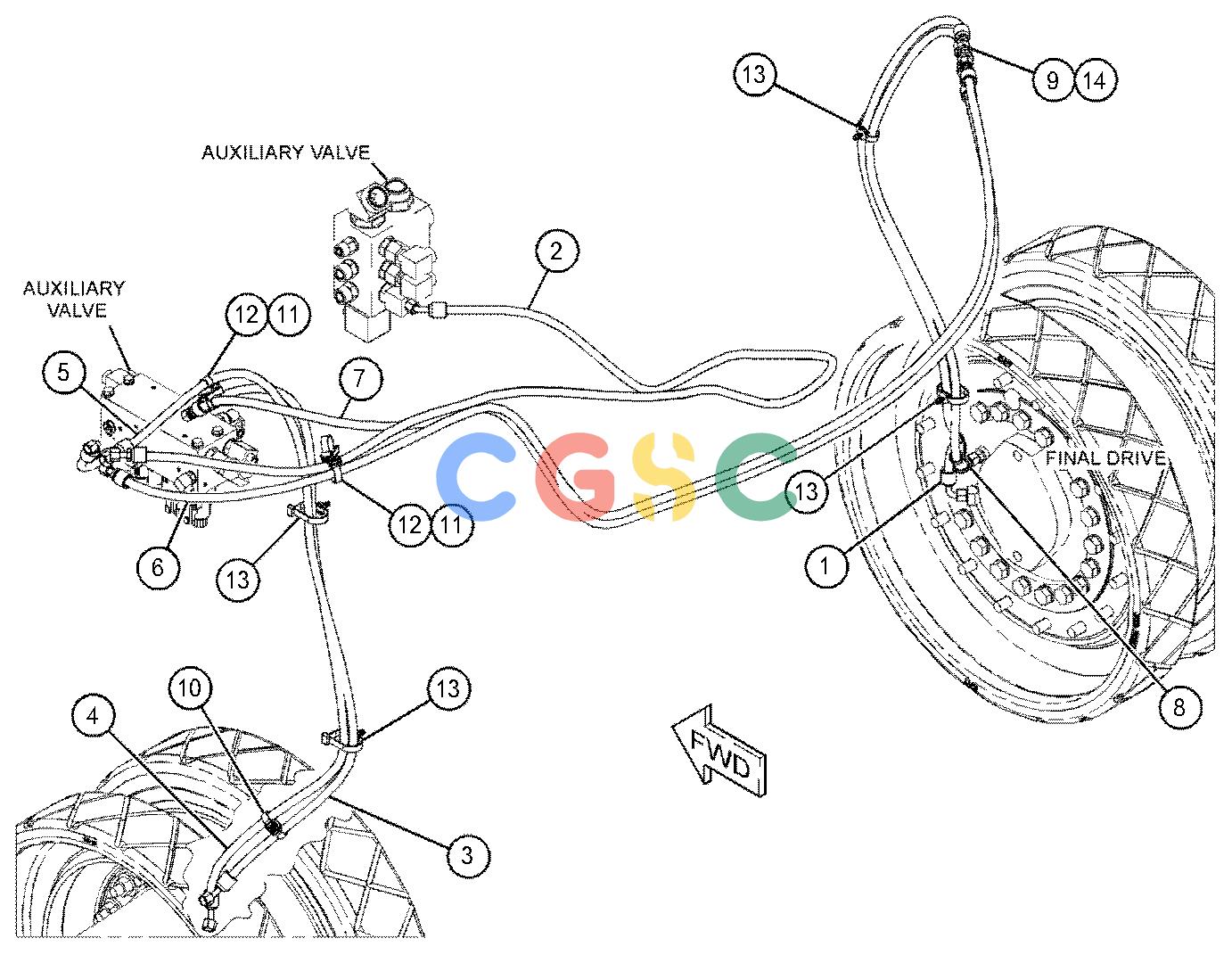

卡特零件查询（AP-1055F） 460-7185: LINES GP-AUXILIARY HYDRAULIC

广数供应链运营团队, 16 02月, 2025，浏览： 562 次

Pos.	Part No	Qty	Parts name
1.	196-4205M	[2]	BOLT-STACKING(M6X1X44-MM)
2.	7R-7954	[1]	PLATE
3.	442-2494	[1]	TUBE AS
4.	449-4405I	[1]	HOSE AS
5.	460-1649I	[1]	HOSE AS
6.	460-1799I	[2]	HOSE AS
7.	464-4000I	[1]	HOSE AS
8.	464-4001I	[1]	HOSE AS
9.	464-4002I	[1]	HOSE AS
10.	464-4003I	[1]	HOSE AS
11.	464-4004I	[1]	HOSE AS
12.	464-4005I	[1]	HOSE AS
13.	464-4006I	[1]	HOSE AS
14.	464-4007I	[1]	HOSE AS
15.	464-4008I	[1]	HOSE AS
16.	464-4009I	[1]	HOSE AS
17.	464-4010I	[1]	HOSE AS
18.	148-8375	[1]	ELBOW AS
	6V-8398	[2]	SEAL-O-RING
	6V-8981	[1]	ELBOW
19.	148-8380	[1]	ELBOW AS
	6V-8398	[2]	SEAL-O-RING
	6V-8988	[1]	ELBOW
20.	148-8417	[1]	REDUCER AS
	6V-8397	[1]	SEAL-O-RING
	6V-8941	[1]	REDUCER
21.	148-8427	[1]	TEE AS
	6V-8398	[3]	SEAL-O-RING
	8T-6895	[1]	TEE-UNION
22.	164-6862	[1]	TEE AS
	6V-9160	[1]	TEE-FACE SEAL
	6V-9746	[3]	SEAL-O-RING
23.	178-3620	[1]	STRAP-DUAL CLAMP
24.	185-5769	[1]	ELBOW AS
	6V-8398	[1]	SEAL-O-RING
	7J-9108	[1]	SEAL-O-RING
	8C-3251	[1]	ELBOW
25.	200-6345	[1]	SADDLE-MOUNTING(DUAL SWIVEL)
26.	204-2281	[2]	STRAP-CABLE
27.	2P-1293	[2]	LOCKNUT(1-3/16-12-THD)
28.	327-0325	[1]	STRAP-CABLE
29.	5P-4295	[1]	CLIP
30.	6D-4636	[1]	CLIP(LOOP)
31.	6V-8556	[1]	NUT(1-3/16-12-THD)
32.	6V-9169	[4]	NUT(13/16-16-THD)
33.	6V-9746	[1]	SEAL-O-RING
34.	239-3291	[2]	CLAMP-HALF
35.	8T-4223	[2]	WASHER-HARD(13.5X25.5X3-MM THK)
	I		REFER TO HYDRAULIC INFORMATION SYSTEM
	M		METRIC PART
