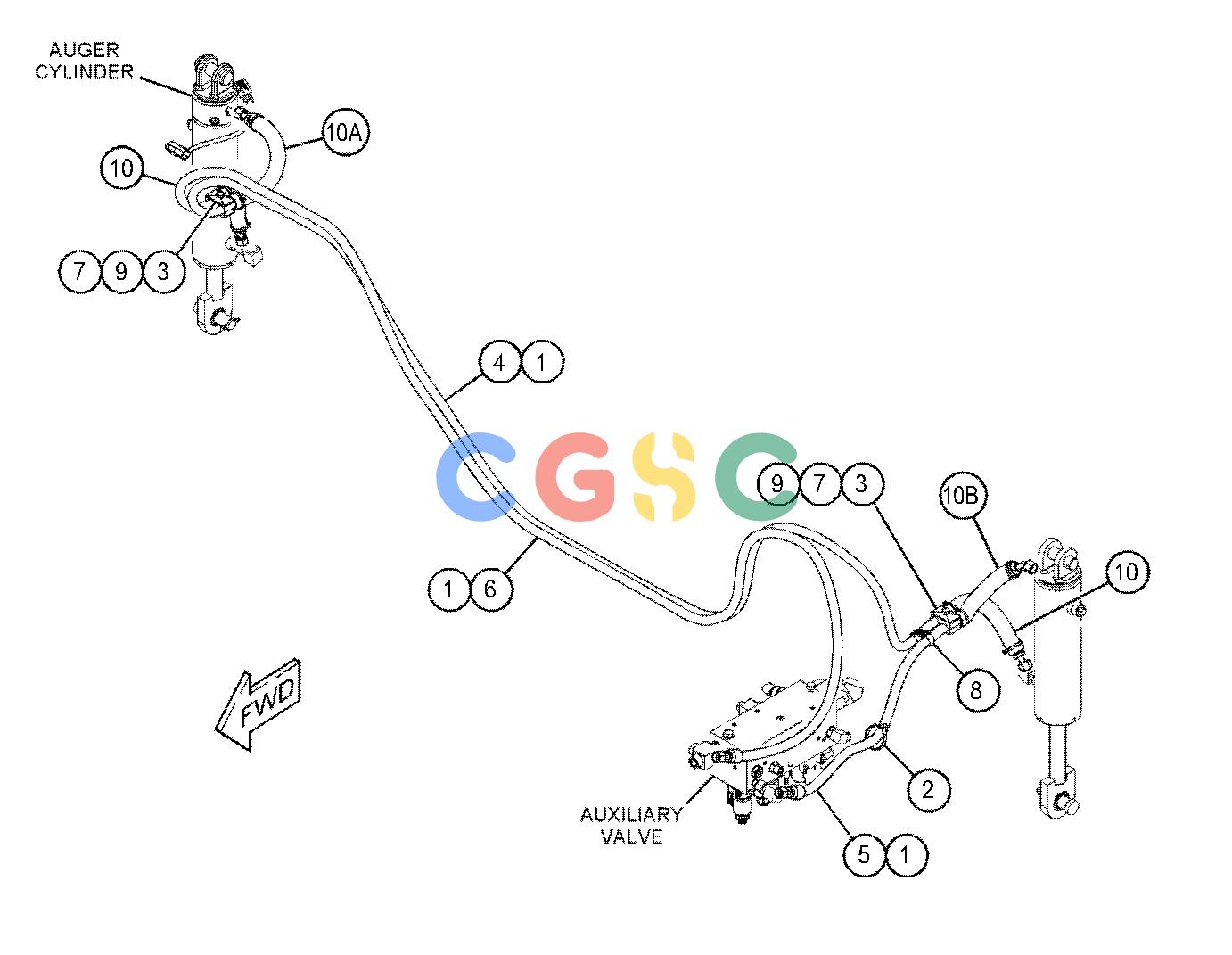

卡特零件查询（AP-1055F） 392-4684: LINES GP-CONVEYOR
广数供应链运营团队, 16 02月, 2025，浏览：
561 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 185-6250 | [2] | FITTING AS | |
| | | | (EACH INCLUDES) |
| | 4J-5477 | [1] | SEAL-O-RING | |
| 2. | 204-2592I | [4] | HOSE AS | |
| 3. | 280-8652I | [1] | HOSE AS | |
| 4. | 339-3617I | [1] | HOSE AS | |
| 5. | 345-0237 | [2] | HOSE AS | |
| 6. | 345-7869 | [2] | BRACKET | |
| 7. | 364-4568 | [1] | STRAP | |
| 8. | 364-4569 | [1] | STRAP | |
| 9. | 364-4570 | [6] | STRAP | |
| 10. | 423-3195 | [2] | TUBE AS | |
| 11. | 423-3196 | [1] | PLATE | |
| 12. | 423-3198I | [1] | HOSE AS | |
| 13. | 423-3199I | [1] | HOSE AS | |
| 14. | 428-7094I | [1] | HOSE AS | |
| 15. | 428-7097I | [1] | HOSE AS | |
| 16. | 428-7098I | [1] | HOSE AS | |
| 17. | 428-7099I | [2] | HOSE AS | |
| 18. | 430-8184I | [1] | HOSE AS | |
| 19. | 430-8185I | [1] | HOSE AS | |
| 20. | 430-8186I | [1] | HOSE AS | |
| 21. | 430-8189I | [2] | HOSE AS | |
| 22. | 430-8193I | [1] | HOSE AS | |
| 23. | 430-8194I | [1] | HOSE AS | |
| 24. | 430-8195I | [1] | HOSE AS | |
| 25. | 430-8196I | [1] | HOSE AS | |
| 26. | 430-8197I | [2] | HOSE AS | |
| 27. | 430-8198I | [1] | HOSE AS | |
| 28. | 430-8200I | [1] | HOSE AS | |
| 29. | 432-6184 | [1] | PLATE | |
| 30. | 432-6186 | [1] | BRACKET AS | |
| 31. | 432-6194I | [1] | HOSE AS | |
| 32. | 432-6195I | [2] | HOSE AS | |
| 33. | 432-6196I | [1] | HOSE AS | |
| 34. | 432-6197I | [1] | HOSE AS | |
| 35. | 432-6199I | [1] | HOSE AS | |
| 36. | 432-6201I | [1] | HOSE AS | |
| 37. | 440-9502I | [1] | HOSE AS | |
| 38. | 440-9503I | [1] | HOSE AS | |
| 39. | 440-9505 | [2] | PLATE | |
| 40. | 441-4351 | [2] | PLATE | |
| 41. | 443-1155 | [1] | BRACKET | |
| 42. | 148-8376 | [1] | ELBOW AS | |
| | 6V-8983 | [1] | ELBOW | |
| | 6V-9746 | [2] | SEAL-O-RING | |
| 43. | 148-8455 | [5] | UNION AS | |
| | | | (EACH INCLUDES) |
| | 6V-8997 | [1] | UNION | |
| | 6V-9746 | [2] | SEAL-O-RING | |
| 44. | 150-4031 | [1] | TEE AS | |
| | 6V-9845 | [1] | TEE-SWIVEL | |
| | 7J-9108 | [2] | SEAL-O-RING | |
| 45. | 153-6256 | [1] | ELBOW AS | |
| | 7J-9108 | [1] | SEAL-O-RING | |
| | 8C-7563 | [1] | ELBOW | |
| 46. | 164-6859 | [1] | UNION AS | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-9353 | [1] | UNION | |
| | 7J-9108 | [1] | SEAL-O-RING | |
| 47. | 164-6860 | [2] | TEE AS | |
| | | | (EACH INCLUDES) |
| | 6V-9350 | [1] | TEE-BULKHEAD | |
| | 7J-9108 | [3] | SEAL-O-RING | |
| 48. | 164-6862 | [1] | TEE AS | |
| | 6V-9160 | [1] | TEE-FACE SEAL | |
| | 6V-9746 | [3] | SEAL-O-RING | |
| 49. | 170-4735 | [2] | RING-RETAINING | |
| 50. | 177-2215 | [1] | STRAP-DUAL CLAMP | |
| 51. | 200-6345 | [3] | SADDLE-MOUNTING(DUAL SWIVEL) | |
| 52. | 204-2281 | [6] | STRAP-CABLE | |
| 53. | 268-1514 | [2] | UNION AS | |
| | | | (EACH INCLUDES) |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| | 8C-8493 | [1] | UNION | |
| 54. | 2P-1293 | [11] | LOCKNUT(1-3/16-12-THD) | |
| 55. | 4J-0520 | [1] | SEAL-O-RING | |
| 56. | 6V-0852 | [2] | CAP-DUST | |
| 57. | 6V-9169 | [1] | NUT(13/16-16-THD) | |
| 58. | 6V-9170 | [2] | NUT-BULKHEAD(1-14-THD) | |
| 59. | 6V-9746 | [2] | SEAL-O-RING | |
| 60. | 7X-7729 | [2] | WASHER(11X25X3-MM THK) | |
| 61. | 8C-3206 | [2] | FLANGE-HALF | |
| 62. | 8T-4121 | [12] | WASHER-HARD(11X21X2.5-MM THK) | |
| 63. | 8T-4137M | [6] | BOLT(M10X1.5X20-MM) | |
| 65. | 8T-4195M | [4] | BOLT(M10X1.5X30-MM) | |
| 66. | 8T-4196M | [4] | BOLT(M10X1.5X35-MM) | |
| 67. | 8T-4200M | [4] | BOLT(M8X1.25X16-MM) | |
| 68. | 8T-4224 | [10] | WASHER-HARD(8.8X16X2-MM THK) | |
| 69. | 8T-5361 | [2] | WASHER-HARD(28X49X5-MM THK) | |
| 70. | 8T-7547M | [2] | BOLT(M8X1.25X30-MM) | |
| 71. | 9X-2616M | [4] | SCREW-SOCKET(M8X1.25X16-MM) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
