卡特零件查询（AP-1055F） 427-0215: PISTON & ROD GP
广数供应链运营团队, 16 02月, 2025，浏览：
241 次

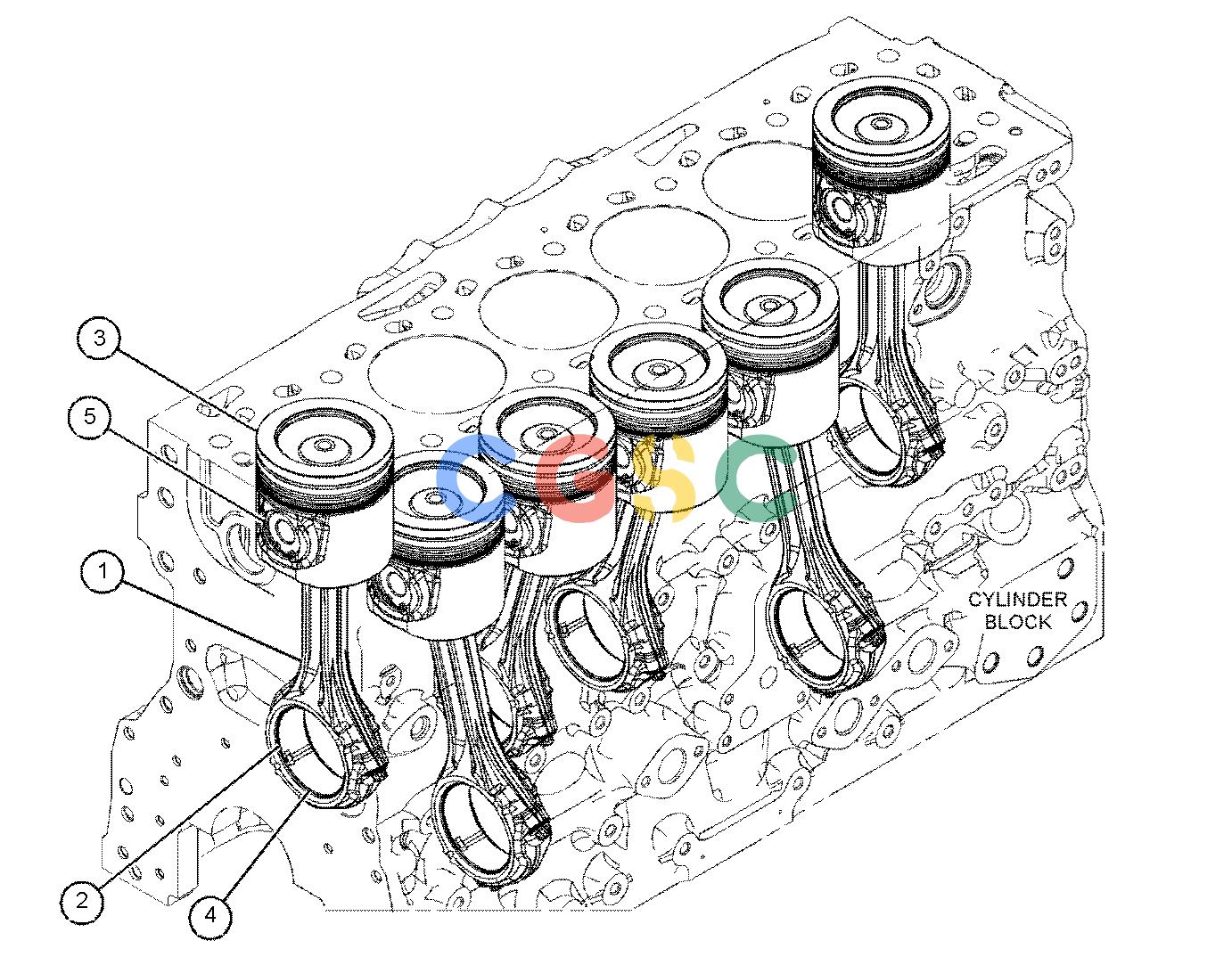

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 331-0292 | [6] | CONNECTING ROD GP | |
| | | | (EACH INCLUDES) |
| | 276-7478 | [1] | BUSHING | |
| | 323-9312M | [2] | BOLT(M10X1X50-MM) | |
| 2. | J | [6] | BEARING |
| 3. | 445-2945L | [6] | PISTON GP | |
| 4. | 317-5483J | [6] | BEARING | |
| 5. | 124-3536 | [12] | RING-RETAINING | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 360-2028B | [1] | KIT-RING(PISTON)(STANDARD) | |
| | | | (INCLUDES RINGS) |
| | 449-2818B | [1] | KIT-PISTON RING(0.5-MM OS) | |
| | | | (INCLUDES RINGS) |
| | 449-2819B | [1] | KIT-PISTON RING(1-MM OS) | |
| | | | (INCLUDES RINGS) |
| | 436-7781BJ | [1] | KIT-BEARING(CONNECTING ROD)(STANDARD) | |
| | | | (INCLUDES BEARINGS) |
| | 458-7918B | [1] | KIT-BEARING(0.25-MM US) | |
| | | | (INCLUDES BEARINGS) |
| | 458-7939B | [1] | KIT-BEARING(0.50-MM US) | |
| | | | (INCLUDES BEARINGS) |
| | 458-7940B | [1] | KIT-BEARING(0.75-MM US) | |
| | | | (INCLUDES BEARINGS) |
| | 436-7786BL | [1] | KIT-PISTON(STANDARD) | |
| | | | (INCLUDES PISTON, PIN, & RINGS) |
| | 421-7753B | [1] | KIT-PISTON(0.5-MM OS) | |
| | | | (INCLUDES PISTON, PIN, & RINGS) |
| | 421-7757B | [1] | KIT-PISTON(1-MM OS) | |
| | | | (INCLUDES PISTON, PIN, & RINGS) |
| | B | | USE AS REQUIRED |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | L | | KIT MARKED L SERVICES PART(S) MARKED L |
| | M | | METRIC PART |
