卡特零件查询（AP-1055F） 493-3262: PISTON GP
广数供应链运营团队, 16 02月, 2025，浏览：
472 次

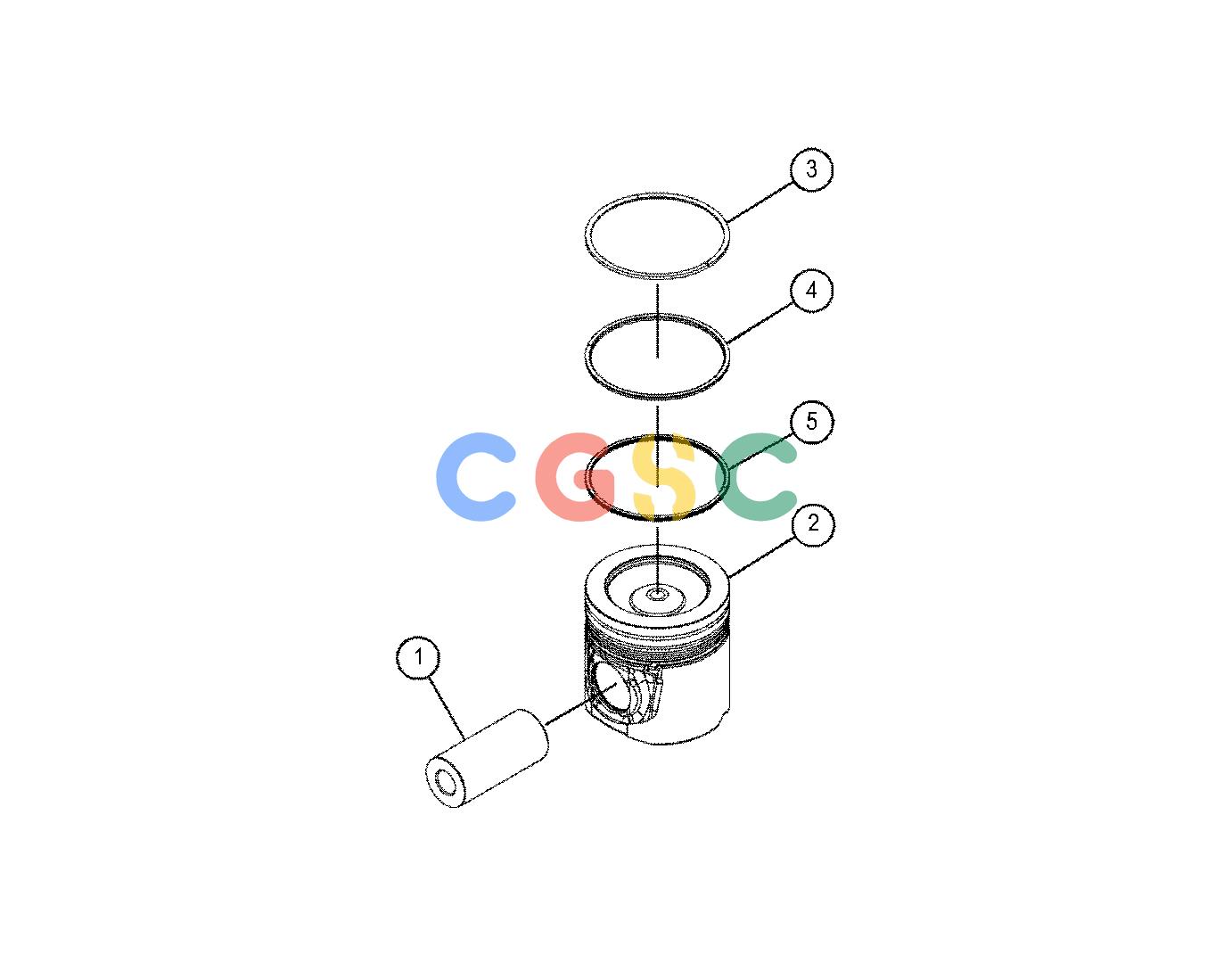

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | JPQ | [1] | PIN |
| 2. | J | [1] | PISTON |
| 3. | J | [1] | RING-PISTON |
| 4. | J | [1] | RING-PISTON |
| 5. | J | [1] | RING-OIL |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 360-2028B | [1] | KIT-RING(PISTON) | |
| | | | (INCLUDES RINGS) |
| | 449-2818AB | [1] | KIT-PISTON RING(0.5-MM OS) | |
| | | | (INCLUDES RINGS) |
| | 449-2819AB | [1] | KIT-PISTON RING(1-MM OS) | |
| | | | (INCLUDES RINGS) |
| | 436-7786J | [1] | KIT-PISTON(STANDARD) | |
| | | | (INCLUDES RETAINING RINGS, PISTON RINGS, PISTON & PIN) |
| | 421-7753ABP | [1] | KIT-PISTON(0.5-MM OS) | |
| | | | (INCLUDES RETAINING RINGS, PISTON RINGS, PISTON & PIN) |
| | 421-7757ABQ | [1] | KIT-PISTON(1-MM OS) | |
| | | | (INCLUDES RETAINING RINGS, PISTON RINGS, PISTON & PIN) |
| | A | | NOT PART OF THIS GROUP |
| | B | | USE AS REQUIRED |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | P | | KIT MARKED P SERVICES PART(S) MARKED P |
| | Q | | KIT MARKED Q SERVICES PART(S) MARKED Q |
