卡特零件查询（AP-1055F） 415-0269: PUMP GP-PISTON
广数供应链运营团队, 16 02月, 2025，浏览：
341 次

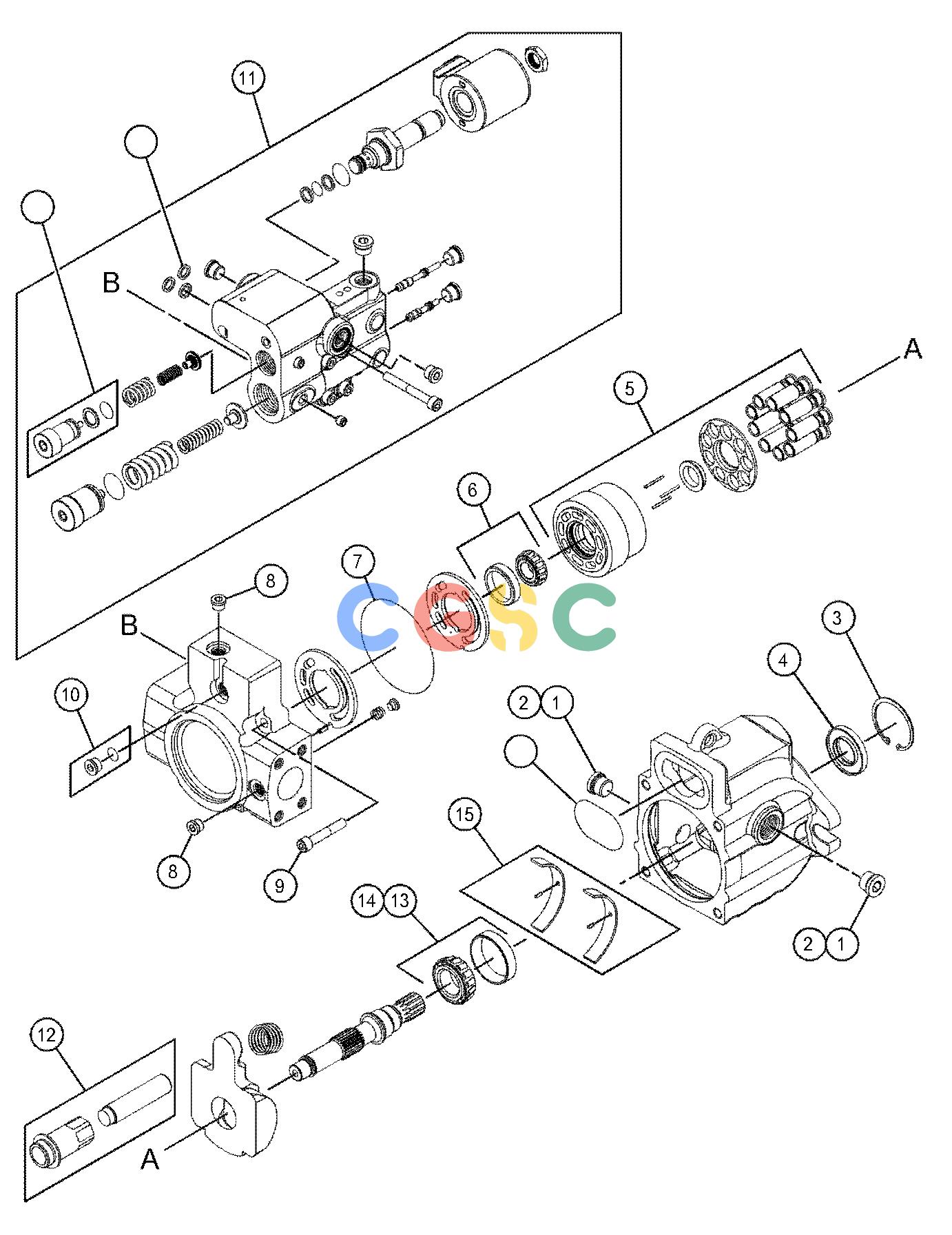

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 9S-8006 | [2] | PLUG(7/8-14-THD) | |
| 2. | 2M-9780 | [2] | SEAL-O-RING | |
| 3. | 351-6033 | [1] | RING-SNAP | |
| 4. | 359-3193J | [1] | SEAL-SHAFT | |
| 5. | 451-4462 | [1] | BARREL AS-PUMP | |
| | 165-9762 | [3] | PIN | |
| | 451-4460 | [1] | RETAINER-BALL | |
| | 451-4461 | [1] | RETAINER | |
| 6. | 451-4463 | [1] | KIT-BEARING | |
| | | | (INCLUDES CONE BEARING & CUP BEARING) |
| 7. | 291-1010J | [1] | SEAL-O-RING | |
| 8. | 418-0175 | [2] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| 9. | 8T-2223M | [4] | BOLT-SOCKET HEAD(M10X1.5X45-MM) | |
| 10. | 259-9093 | [1] | PLUG AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 9S-4185 | [1] | PLUG(3/4-16-THD) | |
| 11. | 451-4464Y | [1] | VALVE GP-PUMP CONTROL | |
| 12. | 224-5503 | [1] | KIT-PISTON | |
| | | | (INCLUDES GUIDE & PISTON) |
| 13. | 009-3690 | [1] | CONE-BEARING | |
| 14. | 009-3691 | [1] | CUP-BEARING | |
| 15. | 224-5507 | [1] | KIT-BEARING | |
| | | | (INCLUDES COILED STEELS & BEARINGS) |
| | | | |
| | | | PARTS SHOWN IN GRAPHIC(S) WITHOUT A REFERENCE NUMBER ARE NOT SERVICED SEPARATELY |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 451-9993J | [1] | KIT-SEAL | |
| | | | (INCLUDES O-RING SEALS, NUT, PLUG & PARTS MARKED "H" IN THE GRAPHIC) |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
