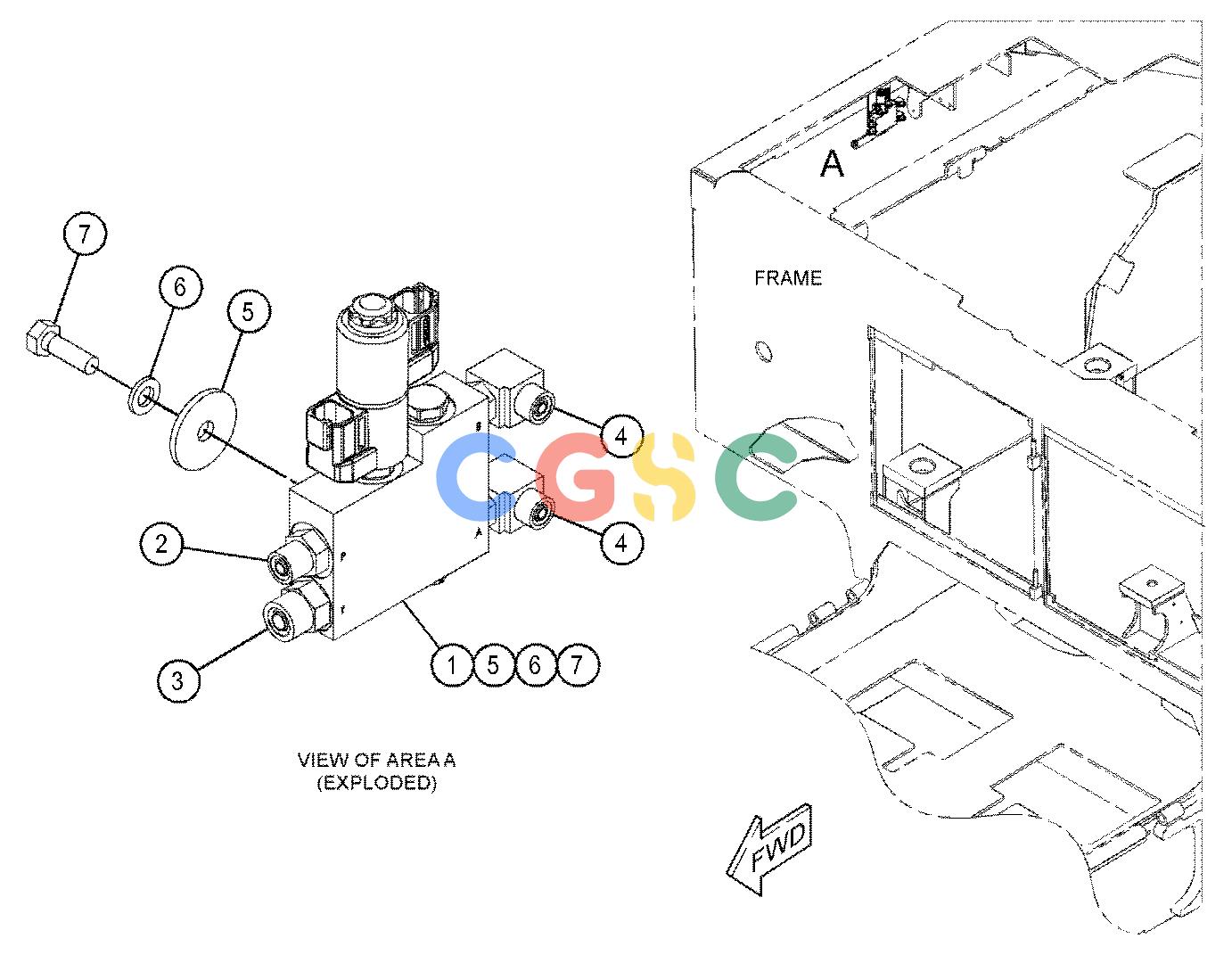

卡特零件查询（AP-1055F） 396-7135: VALVE & MOUNTING GP
广数供应链运营团队, 16 02月, 2025，浏览：
688 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 396-7155 | [1] | VALVE GP-CONTROL(APRON FOLD) | |
| | 446-1411 | [1] | VALVE GP-SOLENOID(END GATE RAISE, LOWER) | |
| | 446-1412 | [1] | KIT-SEAL | |
| | | | (INCLUDES O-RING SEALS & BACKUP RINGS) |
| | 446-5507 | [2] | KIT-NUT | |
| | | | (EACH INCLUDES O-RING SEALS & NUT) |
| | 446-1413 | [2] | VALVE GP-CHECK(END GATE LOWER LOCK) | |
| | | | (EACH INCLUDES) |
| | 446-1414 | [1] | KIT-SEAL(CONTROL VALVE) | |
| | | | (INCLUDES O-RING SEALS & BACKUP RINGS) |
| | 449-2540 | [2] | COIL(24-VOLT) | |
| 2. | 148-8325 | [1] | CONNECTOR AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 6V-8641 | [1] | CONNECTOR | |
| 3. | 148-8336 | [1] | CONNECTOR AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8636 | [1] | CONNECTOR | |
| 4. | 148-8369 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 6V-8628 | [1] | ELBOW | |
| 5. | 384-1628 | [2] | WASHER-HARD(8.8X35X4-MM THK) | |
| 6. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 7. | 8T-4908M | [2] | BOLT(M8X1.25X25-MM) | |
| | M | | METRIC PART |
