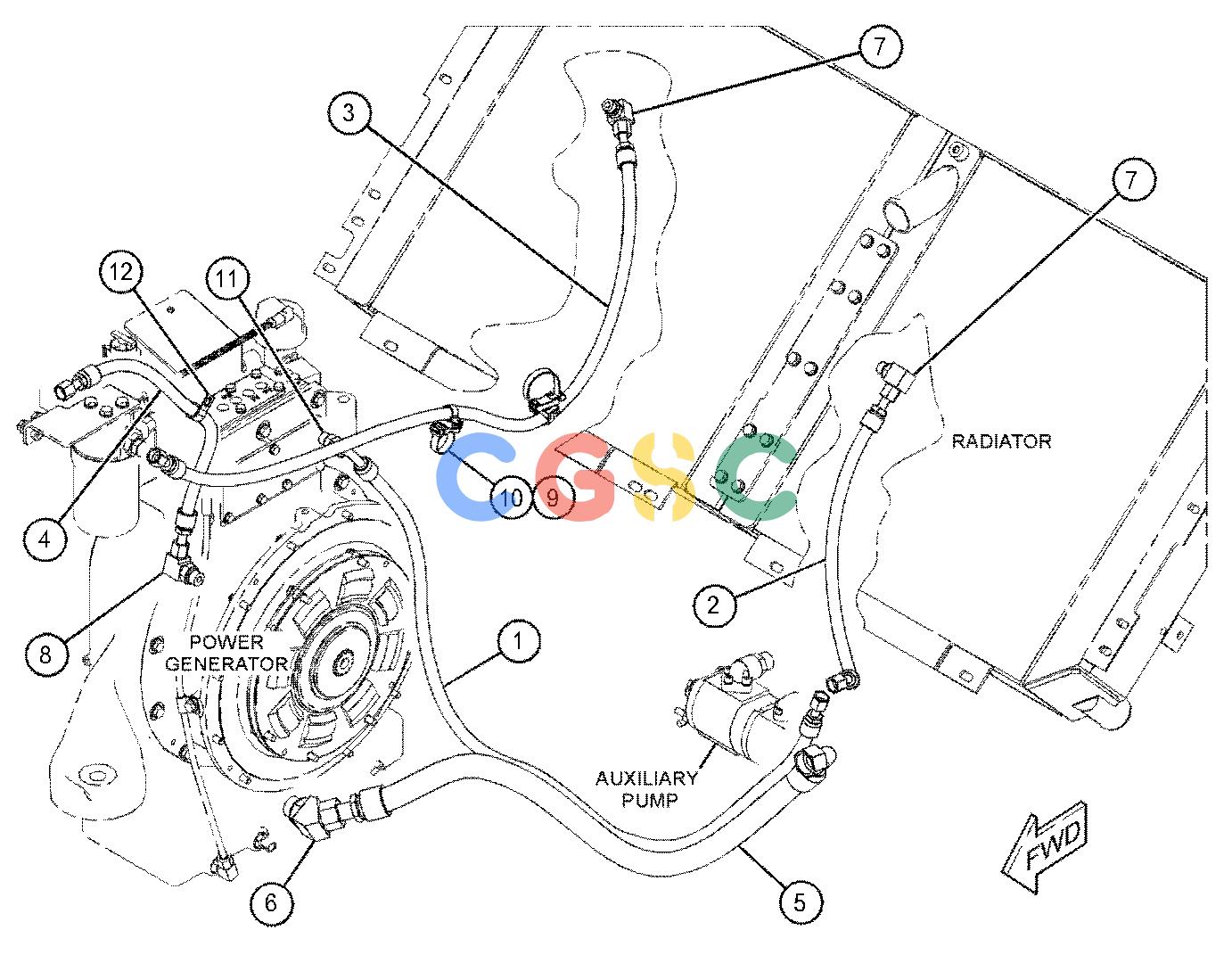

卡特零件查询（AP-1055F） 396-7142: LINES GP-GENERATOR
广数供应链运营团队, 16 02月, 2025，浏览：
876 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 428-7079I | [1] | HOSE AS | |
| 2. | 428-7080I | [1] | HOSE AS | |
| 3. | 428-7081I | [1] | HOSE AS | |
| 4. | 428-7082I | [1] | HOSE AS | |
| 5. | 433-7580I | [1] | HOSE AS | |
| 6. | 148-8355 | [1] | ELBOW AS | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 6V-9005 | [1] | ELBOW | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| 7. | 148-8364 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8625 | [1] | ELBOW | |
| 8. | 148-8372 | [1] | ELBOW AS | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8721 | [1] | ELBOW | |
| 9. | 200-6345 | [2] | SADDLE-MOUNTING(DUAL SWIVEL) | |
| 10. | 204-2281 | [4] | STRAP-CABLE | |
| 11. | 385-9391 | [1] | VALVE GP-CHECK(TRANSMISSION FILTER) | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| 12. | 6D-4246 | [1] | CLIP(LOOP) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
