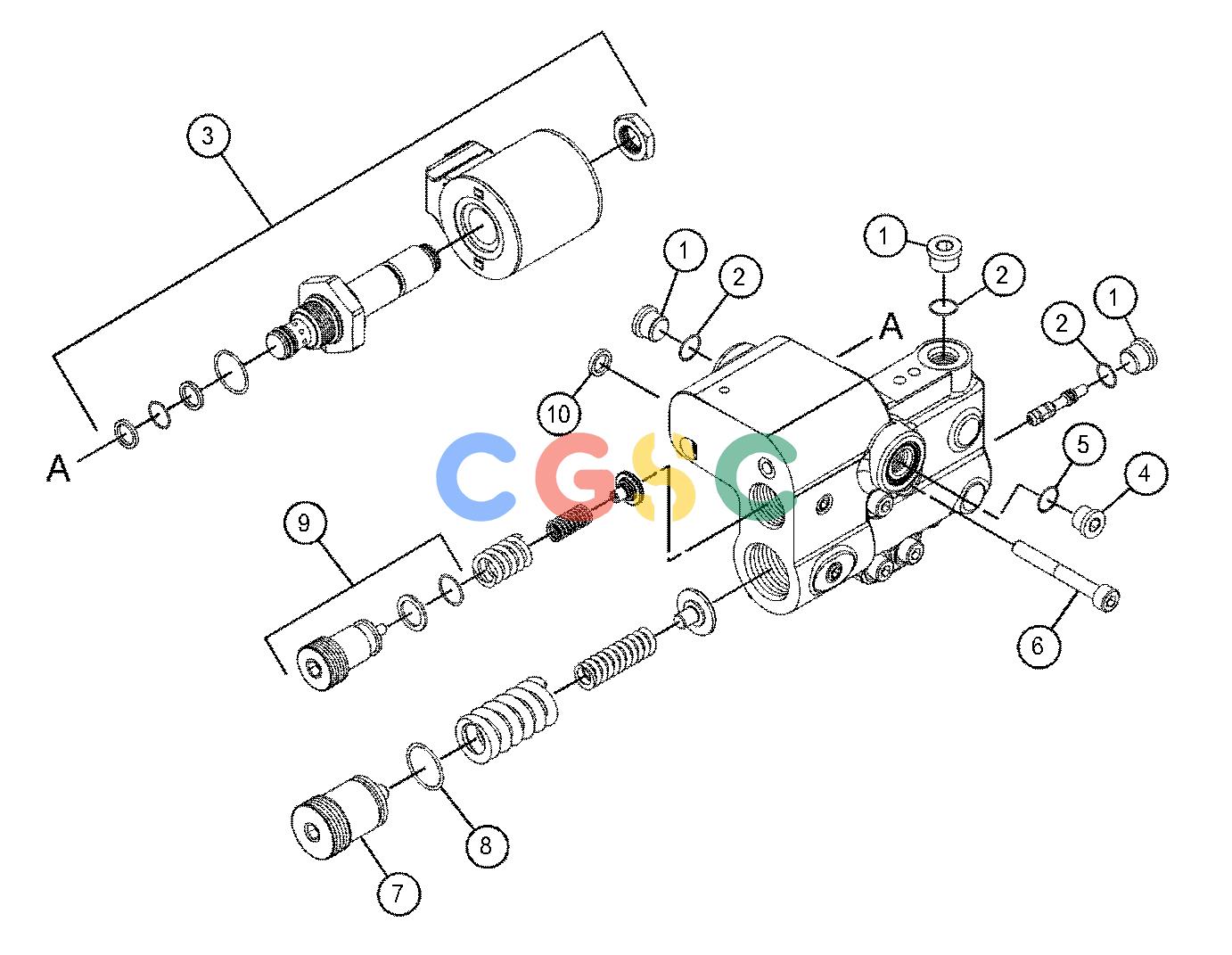

卡特零件查询（AP-1055F） 451-4464: VALVE GP-PUMP CONTROL
广数供应链运营团队, 16 02月, 2025，浏览：
195 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 9S-8002 | [4] | PLUG(7/16-20-THD) | |
| 2. | 3J-7354 | [4] | SEAL-O-RING | |
| 3. | 451-4458 | [1] | VALVE GP-SOLENOID(PUMP CONTROL) | |
| | 351-6030 | [1] | COIL(24-VOLT) | |
| | 451-4466 | [1] | KIT-SEAL | |
| | | | (INCLUDES BACK-UP-RINGS & SEAL-O-RINGS) |
| | 451-9992 | [1] | NUT(1/2-20-THD) | |
| 4. | 260-9153 | [1] | PLUG | |
| 5. | 305-4901 | [1] | SEAL-O-RING | |
| 6. | 8T-9534M | [4] | BOLT(M6X1X50-MM) | |
| 7. | 451-4459 | [1] | PLUG-ADJUSTMENT | |
| 8. | 6V-8351 | [1] | SEAL-O-RING | |
| 9. | 307-3049 | [1] | PLUG AS | |
| 10. | 234-4173 | [3] | SEAL-O-RING | |
| | M | | METRIC PART |
