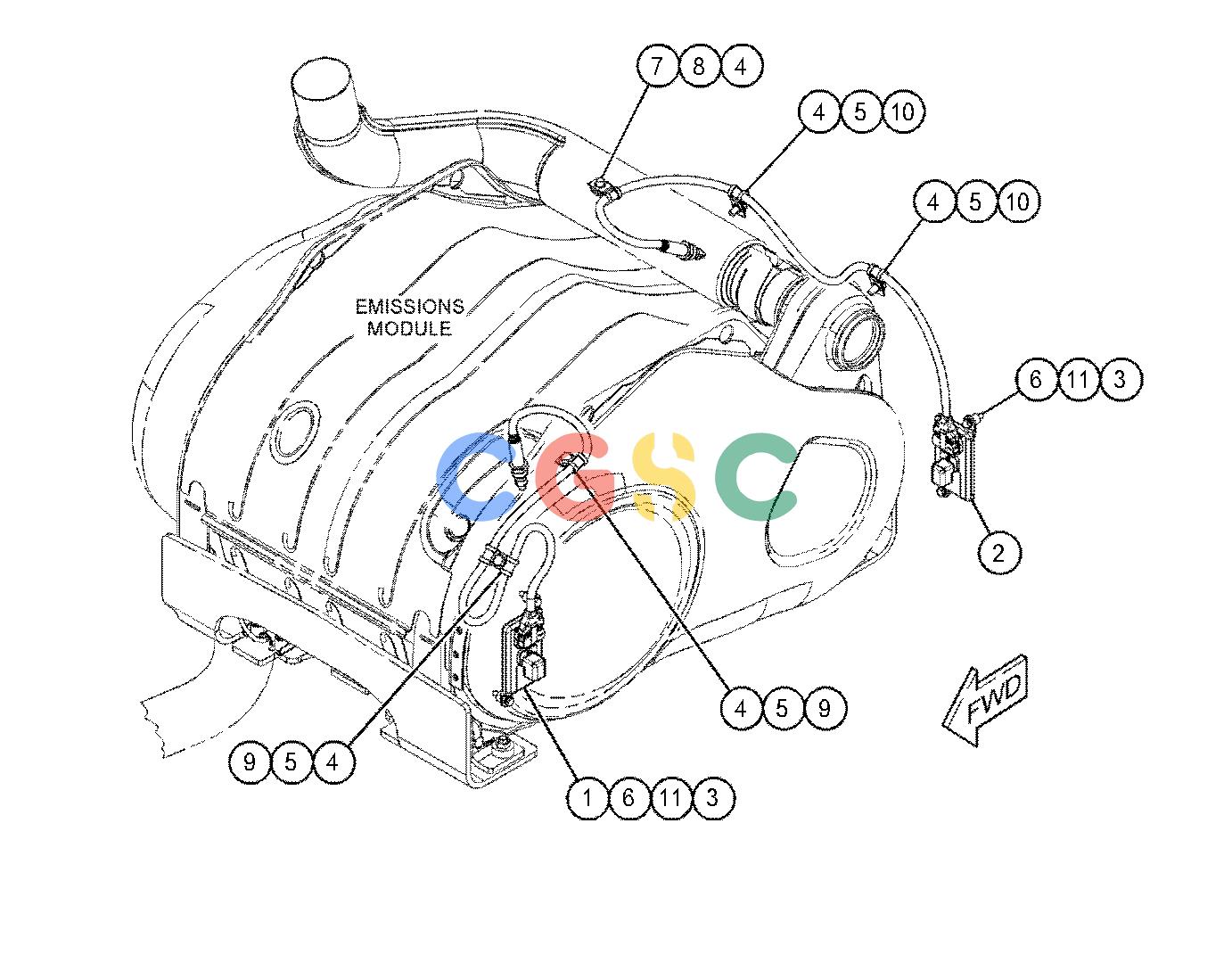

卡特零件查询（AP-1055F） 399-3661: SENSOR & MTG GP-NITROGEN OXIDE
广数供应链运营团队, 16 02月, 2025，浏览：
718 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 441-5127 | [1] | SENSOR AS-NITROGEN OXIDE(ENGINE OUTPUT) | |
| 2. | 441-5128 | [1] | SENSOR AS-NITROGEN OXIDE(EXHAUST PIPE OUT) | |
| 3. | 034-9362 | [4] | TUBE | |
| 4. | 342-2135 | [6] | CLIP(LOOP) | |
| 5. | 5P-4116 | [4] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 6. | 6V-7357M | [4] | BOLT(M6X1X25-MM) | |
| 7. | 7X-2621M | [1] | BOLT(M10X1.5X12-MM) | |
| 8. | 7X-7729 | [1] | WASHER(11X25X3-MM THK) | |
| 9. | 8T-4189M | [2] | BOLT(M8X1.25X20-MM) | |
| 10. | 8T-4200M | [2] | BOLT(M8X1.25X16-MM) | |
| 11. | 9X-8256 | [4] | WASHER(6.6X12X2-MM THK) | |
| | M | | METRIC PART |
