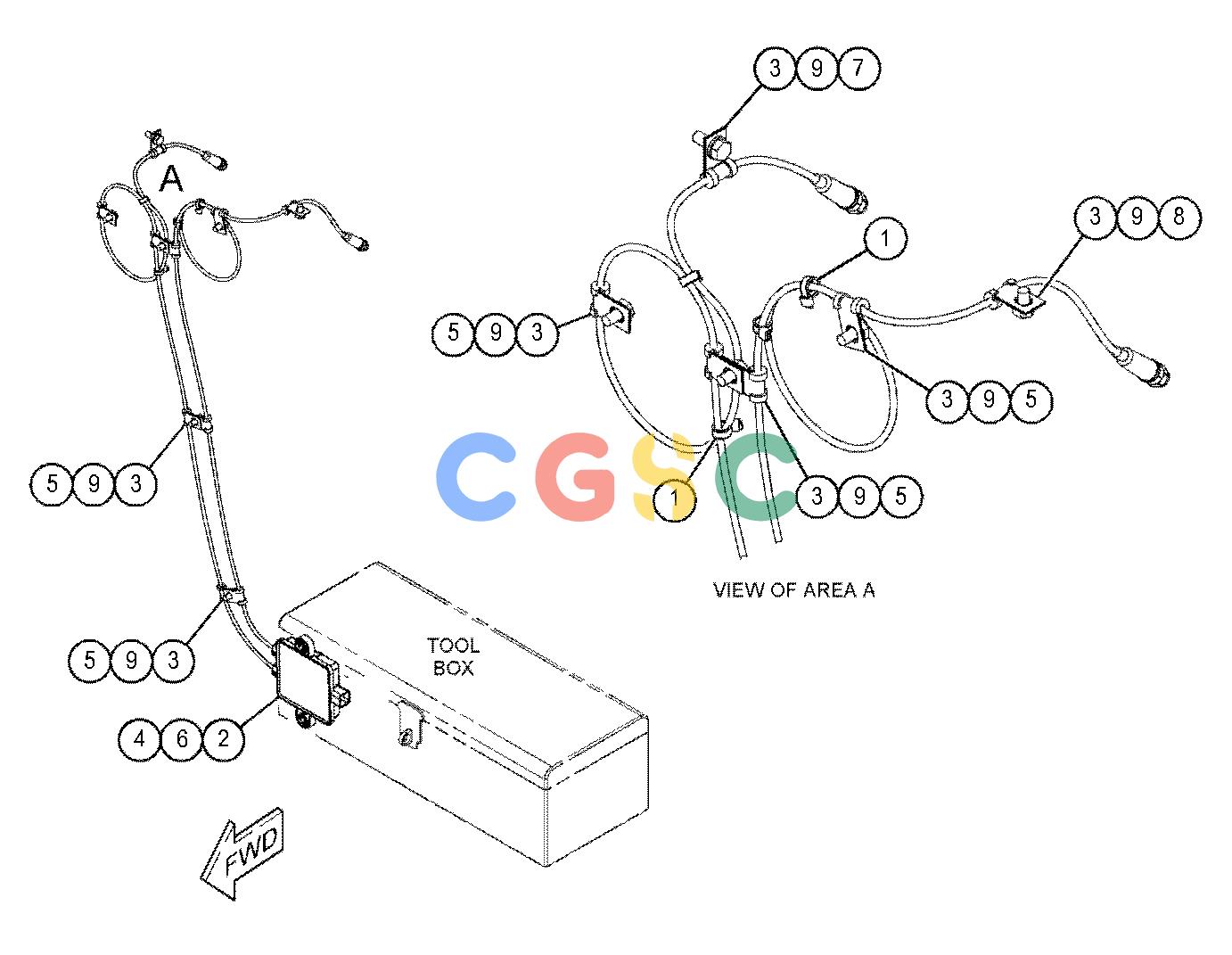

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 326-4516 | [4] | TIE-CABLE | |
| 2. | 464-4912 | [1] | SENSOR GP-SOOT(EXHAUST) | |
| 3. | 349-0951 | [10] | CLIP(LOOP) | |
| 4. | 5P-4115 | [2] | WASHER-HARD(7.2X19X2-MM THK) | |
| 5. | 7X-2536M | [5] | BOLT(M8X1.25X14-MM) | |
| 6. | 8T-4138M | [2] | BOLT(M6X1X20-MM) | |
| 7. | 8T-4189M | [1] | BOLT(M8X1.25X20-MM) | |
| 8. | 8T-4199M | [1] | BOLT(M8X1.25X12-MM) | |
| 9. | 8T-4224 | [7] | WASHER-HARD(8.8X16X2-MM THK) | |
| M | METRIC PART | |||
| R | REMANUFACTURED PART MAY BE AVAILABLE | |||
