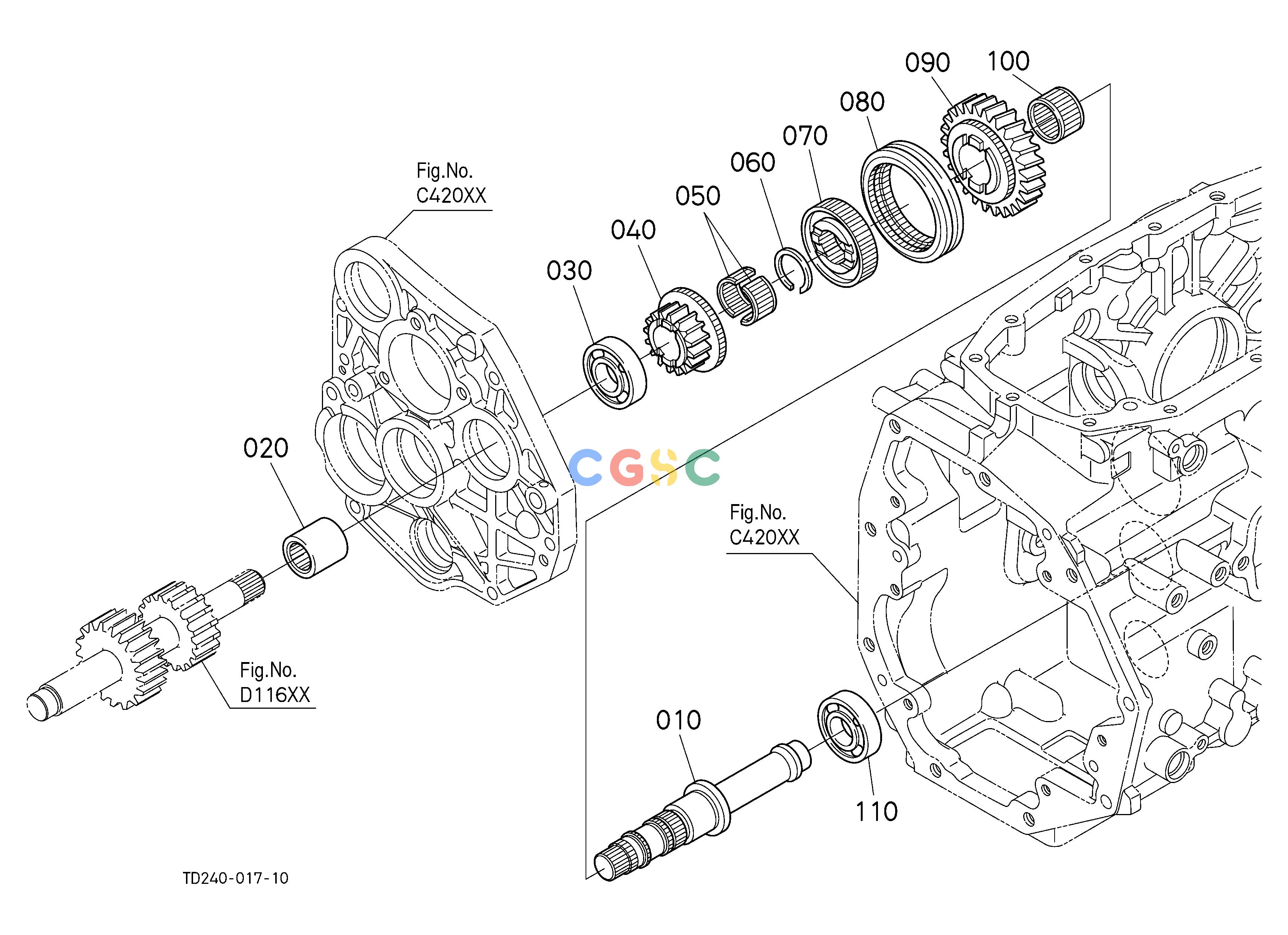

久保田零件查询D11701 RANGE GEAR SHAFT CLUTCH/TRANSMISSIONEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
293 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TD06022600
|
[1] |
SHAFT
|
2.6070(lbs); 1.185
|
| 020. |
TD06022670
|
[1] |
COUPLING
|
0.3520(lbs); 0.160
|
| 030. |
T205023480
|
[1] |
BEARING,BALL
|
0.5170(lbs); 0.235
|
| 030. |
0810106305
|
[1] |
BEARING,BALL
|
0.5060(lbs); 0.230
|
| 040. |
TD05022610
|
[1] |
GEAR(SUB)
|
0.7480(lbs); 0.340
|
| 050. |
T106022650
|
[1] |
BEARING,NEEDLE SUB L
|
0.0440(lbs); 0.020
|
| 060. |
T106022280
|
[1] |
CIRCLIP,EXT
|
0.0066(lbs); 0.003
|
| 070. |
T106022250
|
[1] |
COUPLING
|
0.7920(lbs); 0.360
|
| 080. |
T106022260
|
[1] |
SHIFTER
|
0.5280(lbs); 0.240
|
| 090. |
TD04022620
|
[1] |
COMP.GEAR,SUB
|
2.6400(lbs); 1.200
|
| 100. |
T106022320
|
[1] |
BEARING,NEEDLE
|
0.0528(lbs); 0.024
|
| 110. |
6444122170
|
[1] |
BEARING,BALL
|
0.5280(lbs); 0.240
|
