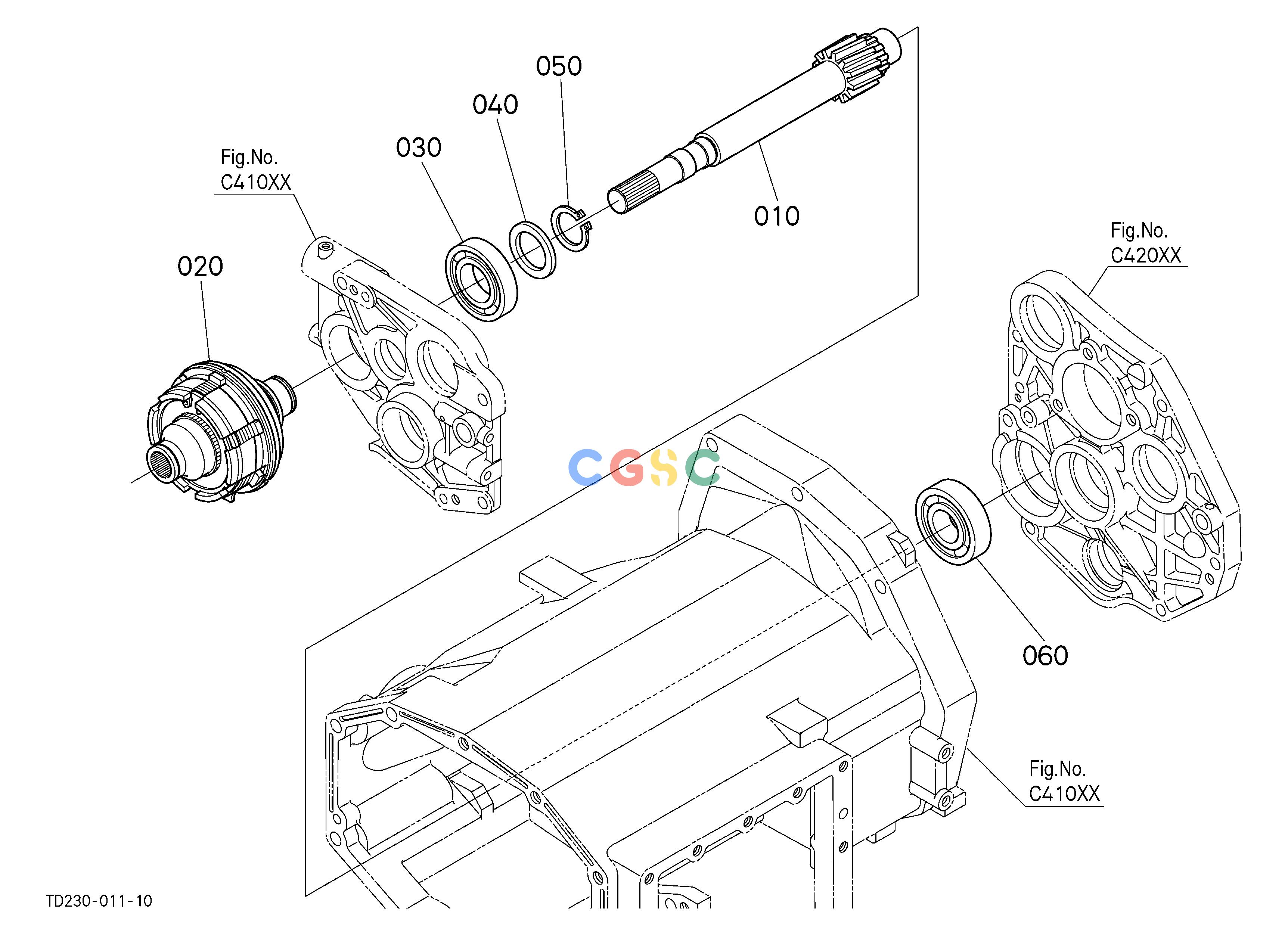

久保田零件查询D13200 PTO CLUTCH CLUTCH/TRANSMISSIONEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
761 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TD22023500
|
[1] |
GEAR-SHAFT,I-PTO
|
4.4000(lbs); 2.000
|
| 020. |
TD26069002
|
[1] |
ASSY CLUTCH,I-PTO
|
6.6000(lbs); 3.000
|
| 030. |
T205023460
|
[1] |
BEARING,BALL
|
0.6160(lbs); 0.280
|
| 030. |
0810106207
|
[1] |
BEARING,BALL
|
0.6160(lbs); 0.280
|
| 040. |
6933124330
|
[1] |
COLLAR,DISTANCE
|
0.0264(lbs); 0.012
|
| 050. |
3674041150
|
[1] |
CIR-CLIP,EXTERNAL
|
0.0220(lbs); 0.010
|
| 060. |
3654041130
|
[1] |
BEARING,BALL
|
0.7480(lbs); 0.340
|
