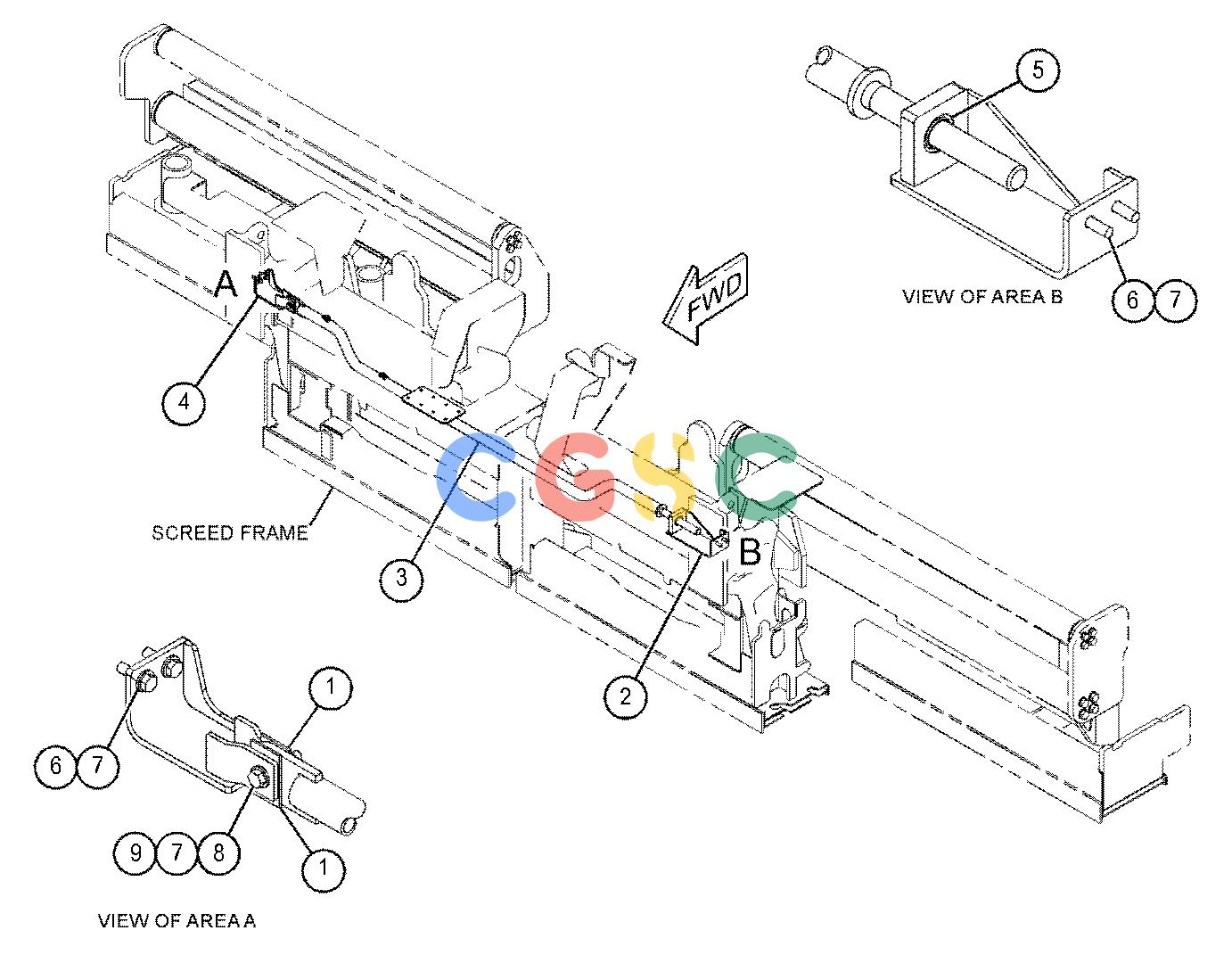

卡特零件查询（AP-1055F） 398-3160: BEAM GP-TRANSVERSE
广数供应链运营团队, 16 02月, 2025，浏览：
442 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 192-4278 | [2] | PAD | |
| 2. | 498-2718 | [1] | PLATE AS(LH) | |
| 3. | 398-3892 | [1] | BEAM AS | |
| | 6V-9632M | [4] | NUT-WELD(M6X1-THD) | |
| | 7T-1099 | [2] | LINK | |
| | 8T-3612M | [4] | NUT-WELD(M8X1.25-THD) | |
| | 437-4528 | [1] | SPACER(31X57X8-MM THK) | |
| 4. | 498-2717 | [1] | PLATE AS(RH) | |
| 5. | 386-4205 | [1] | BEARING | |
| 6. | 8T-4183M | [4] | BOLT(M12X1.75X40-MM) | |
| 7. | 8T-4223 | [6] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 8. | 8T-4910M | [1] | BOLT(M12X1.75X60-MM) | |
| 9. | 8T-8549M | [1] | LOCKNUT(M12X1.75-THD) | |
| | M | | METRIC PART |
