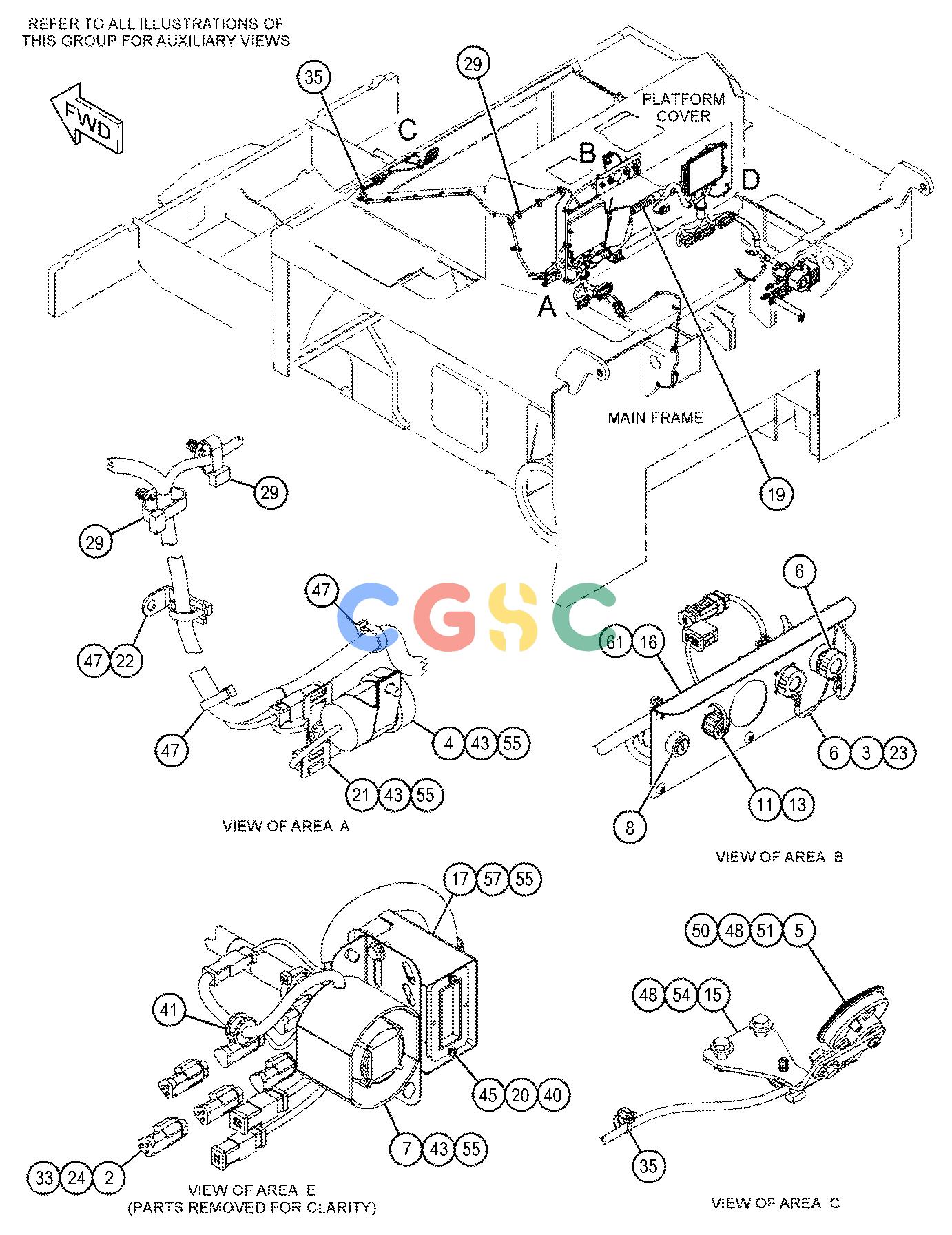

| 1. | 7X-6035 | [1] | STRAP-GROUNDING | |
| 2. | 8T-8737 | [18] | PLUG-SEAL | |
| 3. | 128-6157 | [1] | PLATE | |
| 4. | 3E-6328Y | [1] | ALARM GP(24-VOLT) | |
| 5. | 163-1201 | [1] | HORN AS(24-VOLT, LOW TONE) | |
| 6. | 180-9900 | [2] | CAP AS | |
| 7. | 220-0230 | [1] | ALARM AS(BACKUP) | |
| | 8T-8729 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 9X-1813E | | SLEEVE(29-CM) | |
| 8. | 255-2752Y | [1] | SWITCH GP-START(IGNITION)(KEY) | |
| 9. | 299-5744 | [1] | MODULE GP-RELAY DRIVER | |
| | 7X-6315 | [1] | STRAP AS-GROUND | |
| | 2L-8078 | [1] | TERMINAL-RING(14-GA TO 16-GA, 5/16-IN SCREW) | |
| | 2L-8075 | [1] | TERMINAL-RING(14-GA TO 16-GA, NO. 8 SCREW) | |
| | 5P-6006D | | TUBE-HEAT SHRINK(9.52-MM DIA)(0.1-M) | |
| | 134-4126 | [1] | WASHER(4.52X8.28X0.76-MM THK) | |
| | 184-2472 | [1] | SCREW-PAN HEAD(8-32X0.375-IN) | |
| 10. | 340-7160 | [1] | CONVERTER-POWER(24-VOLT TO 12-VOLT) | |
| 11. | 344-7618 | [1] | COVER-SEAL | |
| 12. | 455-9580 | [1] | CONTROL GP-UNPROGRAMMED(ELECTRONIC) | |
| 13. | 398-3073 | [1] | CABLE AS | |
| | 331-4222 | [1] | KIT-CONNECTING PLUG(12-PIN) | |
| | | | (INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 169-0705 | [8] | SEAL | |
| | 9X-3402 | [4] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| | | | -OR- |
| | 126-1768 | [4] | SOCKET-CONNECTOR(14-GA TO 16-GA) | |
| | 125-7876E | | TUBE-HEAT SHRINK(17.78-MM DIA)(3-CM) | |
| | 344-7617 | [1] | RECEPTACLE AS | |
| | 155-2258 | [1] | WEDGE-PLUG LOCK(12-PIN) | |
| 14. | 482-0772Y | [1] | CONTROL GP-ELECTRONIC | |
| 15. | 422-7615 | [1] | BRACKET AS | |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| 16. | 423-9715 | [1] | PLATE AS | |
| | 7T-1099 | [2] | LINK | |
| | 130-5300 | [1] | CLIP | |
| 17. | 425-8491 | [1] | COVER | |
| 18. | 430-4312 | [1] | BRACKET | |
| 19. | 507-7210Y | [1] | HARNESS AS-CONTROL | |
| 20. | 096-6166 | [14] | WASHER-HARD(4.5X9X1-MM THK) | |
| 21. | 130-5300 | [2] | CLIP | |
| 22. | 132-5789 | [1] | CLIP(LADDER) | |
| 23. | 141-4976 | [4] | SCREW-WASHER HEAD(4-40X0.5-IN) | |
| 24. | 155-2260 | [3] | KIT-CONNECTING PLUG(3-PIN) | |
| | | | (EACH INCLUDES PLUG AS, WEDGE, & INTERFACE SEAL) |
| 25. | 177-2215 | [1] | STRAP-DUAL CLAMP | |
| 26. | 1A-8912 | [2] | WASHER(6.7X12.7X1.6-MM THK) | |
| 27. | 1V-0398 | [2] | GROMMET | |
| 28. | 274-7409M | [7] | SCREW-TRUSS HEAD(M8X1.25X45-MM) | |
| 29. | 327-0325 | [9] | STRAP-CABLE | |
| 30. | 344-5675M | [1] | NUT(M10X1.5-THD) | |
| 31. | 352-0244 | [7] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 32. | 381-2621 | [1] | MOUNTING-CABLE TIE | |
| 33. | 102-8803 | [3] | KIT-RECEPTACLE(3-PIN) | |
| | | | (EACH INCLUDES RECEPTACLE AS & WEDGE) |
| 34. | 111-4627M | [4] | SCREW-MACHINE(M6X1X30-MM) | |
| 35. | 3S-2093 | [22] | STRAP-CABLE | |
| 36. | 4B-4863 | [2] | WASHER(4.7X11X1.2-MM THK) | |
| 37. | 4P-7581 | [1] | CLIP(LADDER) | |
| 38. | 5C-2890M | [4] | NUT(M6X1-THD) | |
| 39. | 5C-7261M | [10] | NUT(M8X1.25-THD) | |
| 40. | 5C-8312M | [2] | NUT(M4X0.7-THD) | |
| 41. | 5D-7635 | [1] | GROMMET | |
| 42. | 5P-4115 | [8] | WASHER-HARD(7.2X19X2-MM THK) | |
| 43. | 5P-4116 | [6] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 44. | 6I-1418 | [7] | SPACER(8.2X12.7X28.7-MM THK) | |
| 45. | 6V-9491M | [2] | SCREW-MACHINE(M4X0.7X20-MM) | |
| 46. | 6V-9672M | [10] | SCREW-MACHINE(M4X0.7X16-MM) | |
| 47. | 7K-1181 | [26] | STRAP-CABLE | |
| 48. | 7X-7729 | [4] | WASHER(11X25X3-MM THK) | |
| 49. | 8T-4121 | [2] | WASHER-HARD(11X21X2.5-MM THK) | |
| 50. | 8T-4133M | [1] | NUT(M10X1.5-THD) | |
| 51. | 8T-4136M | [1] | BOLT(M10X1.5X25-MM) | |
| 52. | 8T-4171M | [2] | BOLT(M6X1X12-MM) | |
| 53. | 8T-4189M | [2] | BOLT(M8X1.25X20-MM) | |
| 54. | 8T-4195M | [3] | BOLT(M10X1.5X30-MM) | |
| 55. | 8T-4200M | [6] | BOLT(M8X1.25X16-MM) | |
| 56. | 8T-4223 | [1] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 57. | 8T-4224 | [5] | WASHER-HARD(8.8X16X2-MM THK) | |
| 58. | 8T-4244M | [1] | NUT(M12X1.75-THD) | |
| 59. | 8T-4647M | [2] | SCREW-MACHINE(M4X0.7X20-MM) | |
| 60. | 8T-9655 | [14] | MOUNT-ISOLATION | |
| 61. | 9X-2044M | [6] | SCREW-TRUSS HEAD(M6X1X16-MM) | |
| 62. | 475-2639 | [1] | PLATE | |
| 63. | 8M-2772 | [1] | CLIP(LOOP) | |
| 64. | 485-1916 | [1] | WRENCH(5-MM) | |
| | D | | ORDER BY THE METER |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
| | Y | | SEPARATE ILLUSTRATION |
