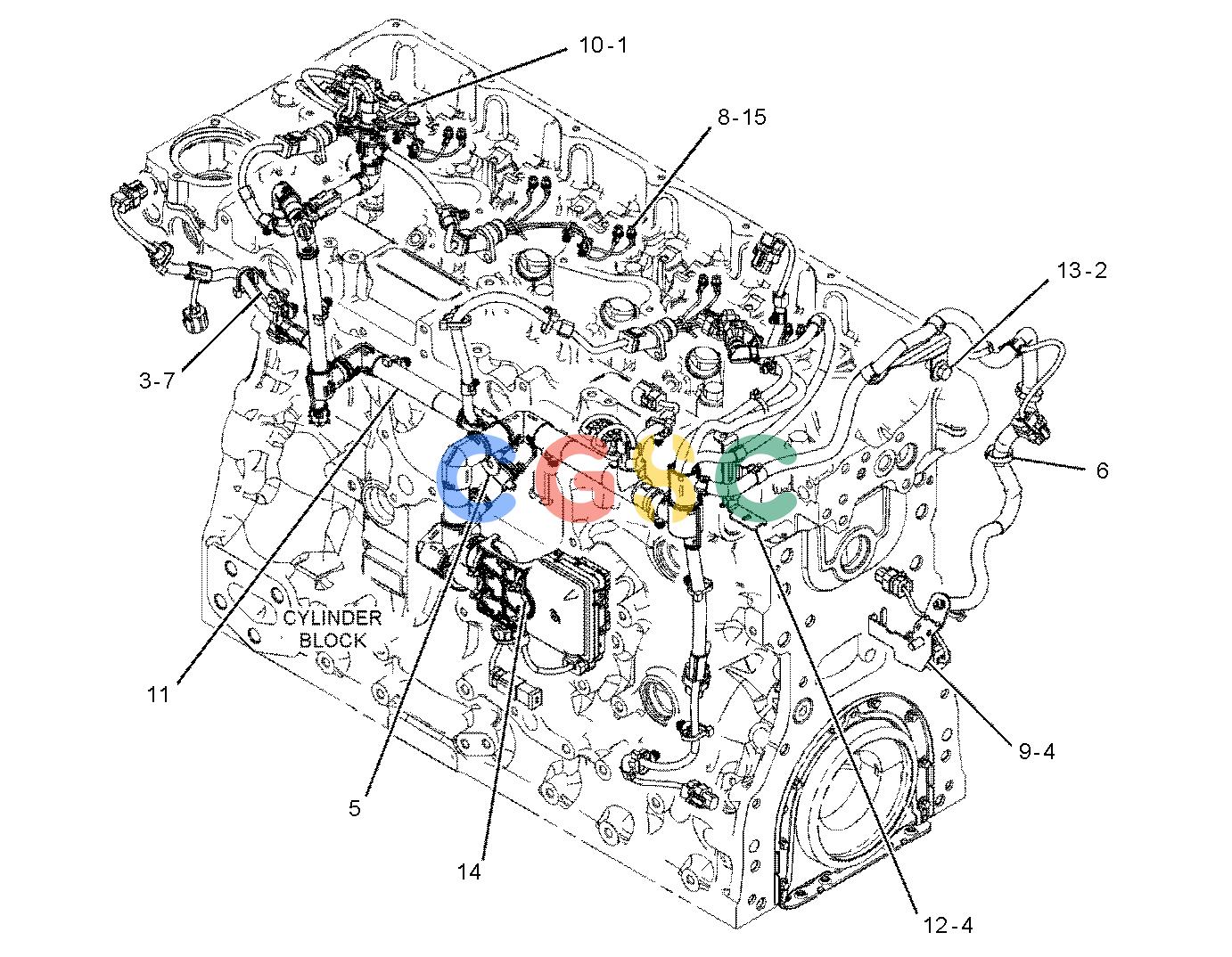

卡特零件查询（AP-1055F） 374-4427: WIRING GP-ENGINE
广数供应链运营团队, 16 02月, 2025，浏览：
742 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6I-0846M | [3] | BOLT(M6X1X14-MM) | |
| 2. | 6I-4200M | [1] | BOLT(M10X1.5X16-MM) | |
| 3. | 100-4458M | [1] | BOLT(M8X1.25X14-MM) | |
| 4. | 124-3815M | [2] | BOLT(M8X1.25X16-MM) | |
| 5. | 217-0099 | [1] | SPACER(8.2X25X2-MM THK) | |
| 6. | 290-1993 | [3] | STRAP-CABLE | |
| 7. | 334-5091 | [1] | BRACKET | |
| 8. | 367-6803 | [3] | HARNESS AS-WIRING | |
| | | | (EACH INCLUDES) |
| | 323-7347 | [1] | SEAL-O-RING | |
| | 332-7865 | [2] | TIE-CABLE | |
| 9. | 376-4089 | [1] | BRACKET | |
| 10. | 381-3508 | [1] | BRACKET | |
| 11. | 388-4017Y | [1] | HARNESS AS-SENSOR | |
| 12. | 433-4105 | [1] | BRACKET | |
| 13. | 433-4130 | [1] | BRACKET | |
| 14. | 232-1693M | [1] | BOLT-FLANGE HEAD(M6X1X35-MM) | |
| 15. | 254-3633M | [3] | BOLT-FLANGE HEAD(M6X1X16-MM, SELF LOCKING) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
