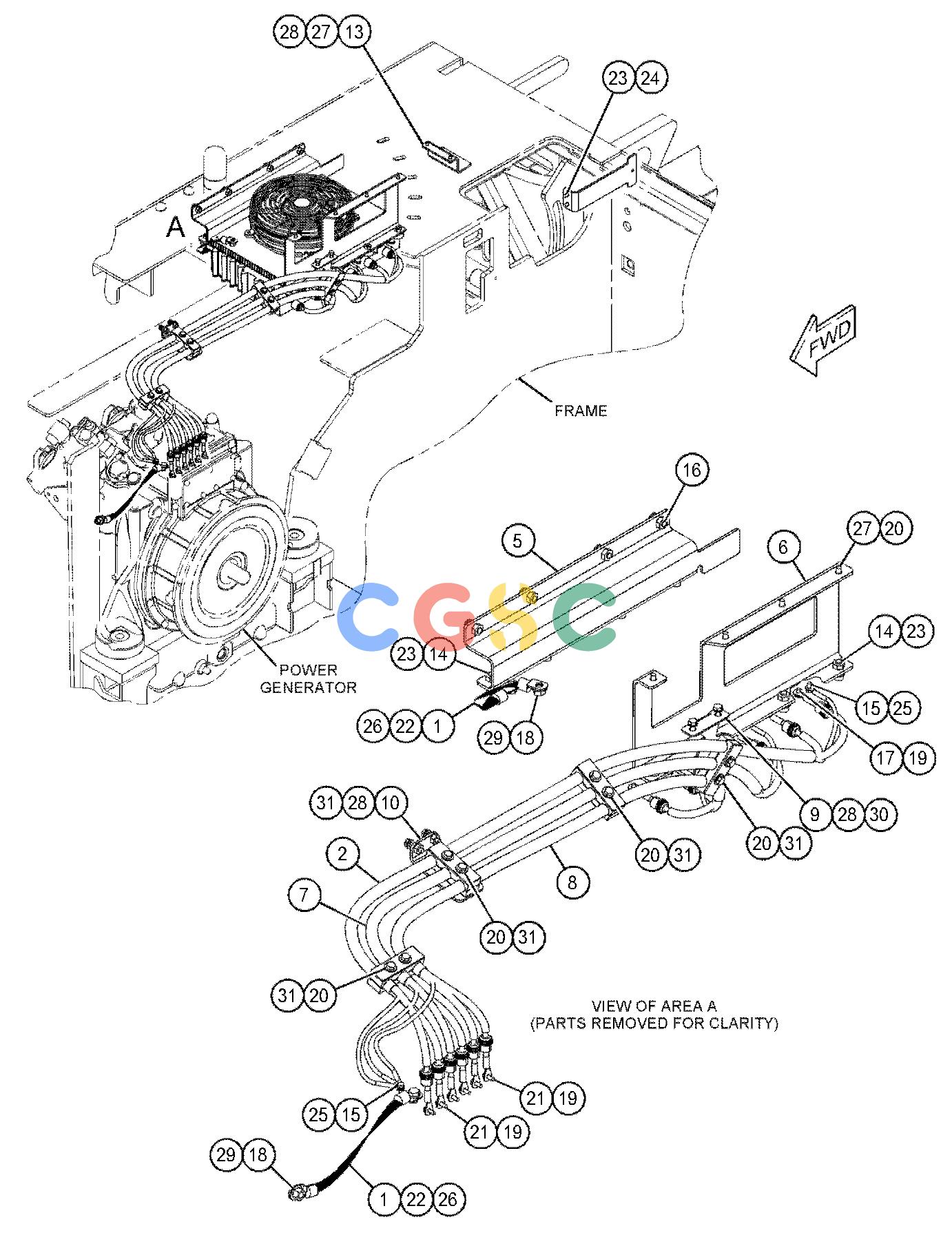

卡特零件查询（AP-1055F） 393-1887: WIRING GP-GENERATOR
广数供应链运营团队, 16 02月, 2025，浏览：
821 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 134-3355 | [2] | STRAP AS | |
| 2. | | [1] | HARNESS AS-WIRING |
| | 1P-0810B | | TAPE-ELECTRICAL | |
| | 2L-8067 | [2] | TERMINAL-RING(10-GA TO 12-GA, 1/4-IN SCREW) | |
| | 9G-4343 | [4] | TERMINAL-RING(4-GA, 1/4-IN SCREW) | |
| | 6V-9023E | | TUBE-HEAT SHRINK(12.7-MM DIA)(10-CM) | |
| 5. | 425-5619 | [1] | BRACKET AS | |
| | 8T-3490M | [8] | NUT-WELD(M10X1.5-THD) | |
| 6. | 425-5620 | [1] | BRACKET AS | |
| | 8T-3490M | [4] | NUT-WELD(M10X1.5-THD) | |
| 7. | | [1] | HARNESS AS-WIRING |
| 8. | | [1] | HARNESS AS-WIRING |
| | | | (EACH HARNESS AS INCLUDES) |
| | 1P-0810B | | TAPE-ELECTRICAL | |
| | 2L-8067 | [2] | TERMINAL-RING(10-GA TO 12-GA, 1/4-IN SCREW) | |
| | 9G-4343 | [4] | TERMINAL-RING(4-GA, 1/4-IN SCREW) | |
| | 6V-9023E | | TUBE-HEAT SHRINK(12.7-MM DIA)(10-CM) | |
| 9. | | [1] | BRACKET AS |
| | 8T-3612M | [2] | NUT-WELD(M8X1.25-THD) | |
| 10. | | [1] | BRACKET AS |
| | 8T-3612M | [2] | NUT-WELD(M8X1.25-THD) | |
| 13. | 431-9627 | [1] | BRACKET AS | |
| | 154-4887 | [1] | PLATE AS | |
| 14. | 105-3484M | [8] | BOLT-SOCKET HEAD(M10X1.5X25-MM) | |
| 15. | 1A-8912 | [4] | WASHER(6.7X12.7X1.6-MM THK) | |
| 16. | 238-0251M | [4] | SCREW-BUTTON HEAD(M10X1.5X25-MM) | |
| 17. | 2W-9513M | [6] | BOLT(M6X1X10-MM) | |
| 18. | 4B-4280 | [2] | WASHER(13.5X27X2.5-MM THK) | |
| 19. | 5P-0537 | [12] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 20. | 5P-4116 | [12] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 21. | 6V-8837M | [6] | BOLT(M6X1X16-MM) | |
| 22. | 7P-1695 | [2] | WASHER(10.5X19X3-MM THK) | |
| 23. | 8T-4121 | [10] | WASHER-HARD(11X21X2.5-MM THK) | |
| 24. | 8T-4137M | [2] | BOLT(M10X1.5X20-MM) | |
| 25. | 8T-4171M | [4] | BOLT(M6X1X12-MM) | |
| 26. | 8T-4191M | [2] | BOLT(M10X1.5X16-MM) | |
| 27. | 8T-4200M | [6] | BOLT(M8X1.25X16-MM) | |
| 28. | 8T-4224 | [6] | WASHER-HARD(8.8X16X2-MM THK) | |
| 29. | 8T-4244M | [2] | NUT(M12X1.75-THD) | |
| 30. | 8T-4908M | [2] | BOLT(M8X1.25X25-MM) | |
| 31. | 8T-7547M | [10] | BOLT(M8X1.25X30-MM) | |
| | B | | USE AS REQUIRED |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
