卡特零件查询（AP-1055F） 477-1877: EXTENSION AR-SCREED
广数供应链运营团队, 16 02月, 2025，浏览：
305 次

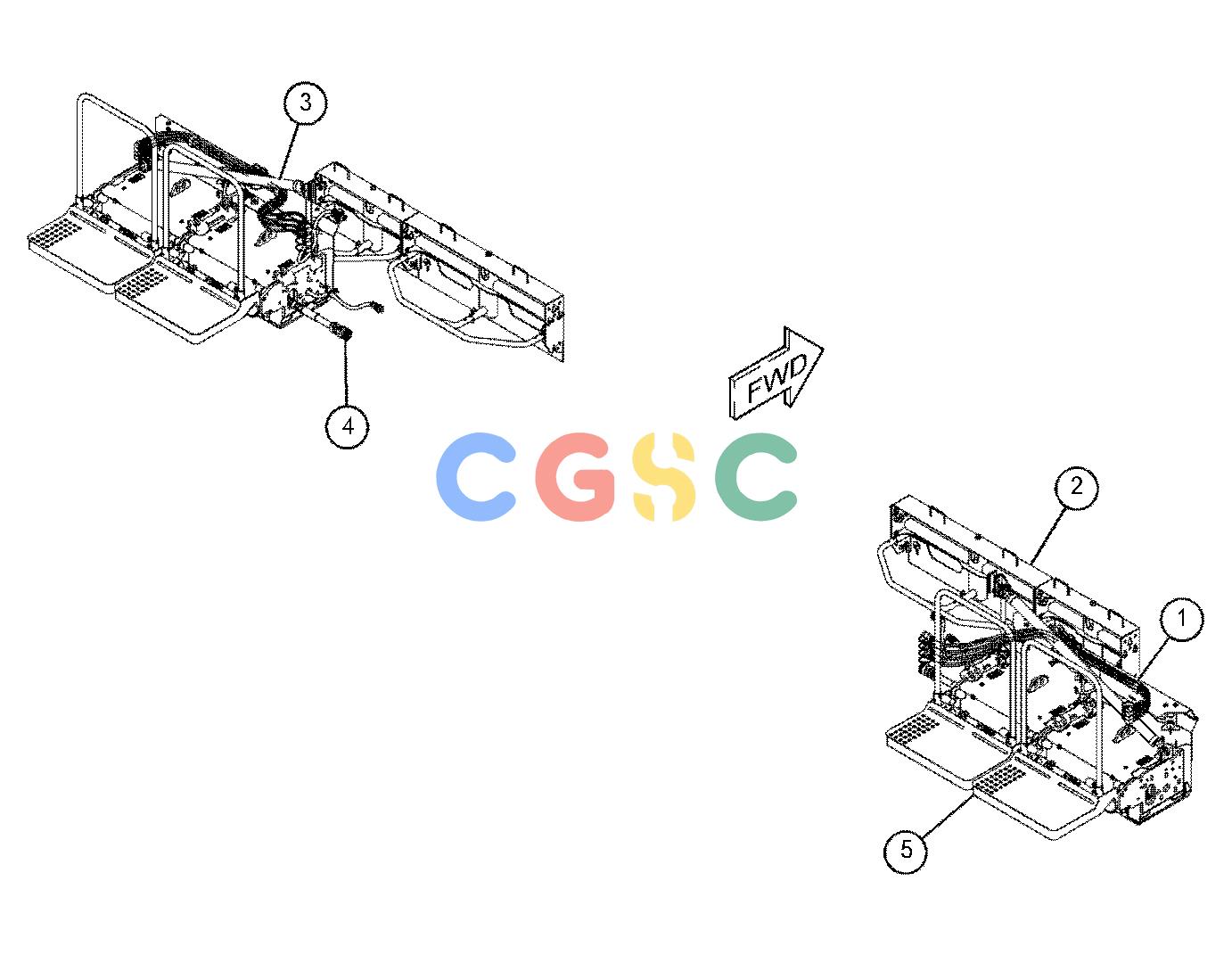

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 475-6353 | [1] | WIRING GP-SCREED | |
| | 475-0301 | [2] | HARNESS AS-SCREED | |
| | 475-6347 | [2] | HARNESS AS-SCREED | |
| | | | (EACH HARNESS AS INCLUDES) |
| | 8T-5346E | | TUBE-HEAT SHRINK(19.1-MM DIA)(12-CM) | |
| | 474-7564 | [2] | RECEPTACLE AS-CONNECTOR(28-PIN) | |
| | 474-7566 | [1] | CAP AS-CONNECTOR | |
| | 431-0680 | [2] | STRAP | |
| 2. | 477-3123Y | [1] | COVER GP-SCREED | |
| 3. | 477-7522Y | [1] | SUPPORT GP-FRAME | |
| 4. | 480-6457 | [1] | SHAFT GP-DRIVE | |
| | 474-5725 | [2] | SHAFT | |
| | 484-1025 | [2] | SHAFT | |
| 5. | 491-0718Y | [4] | EXTENSION GP-SCREED | |
| | E | | ORDER BY THE CENTIMETER |
| | Y | | SEPARATE ILLUSTRATION |
