卡特零件查询（AP-1055F） 477-1878: EXTENSION AR-SCREED
广数供应链运营团队, 16 02月, 2025，浏览：
407 次

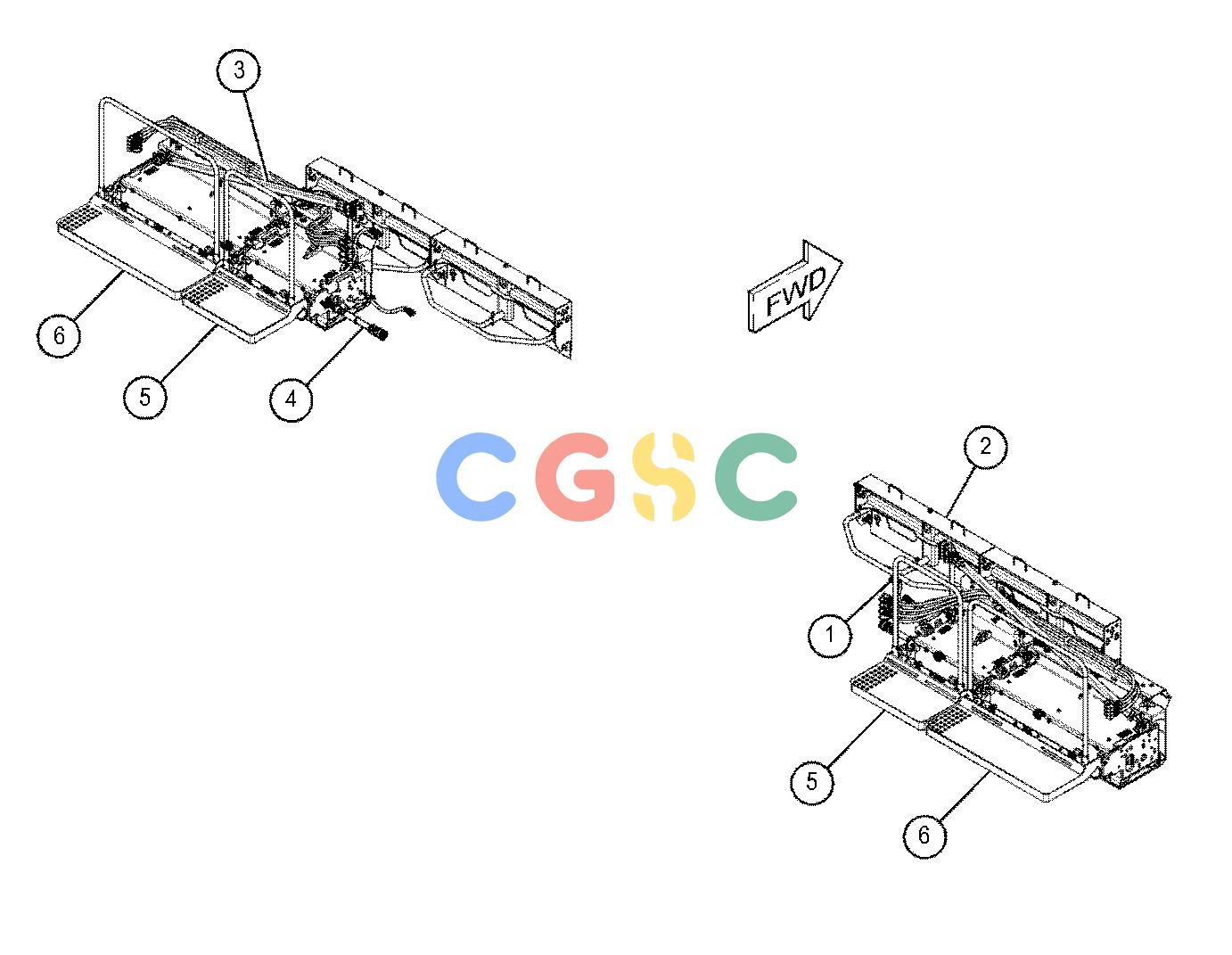

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 475-6353 | [1] | WIRING GP-SCREED | |
| | 431-0680 | [2] | STRAP | |
| | 475-0301 | [2] | HARNESS AS-SCREED | |
| | | | (EACH INCLUDES) |
| | 474-7564 | [2] | RECEPTACLE AS-CONNECTOR(28-PIN) | |
| | 474-7566 | [1] | CAP AS-CONNECTOR | |
| | 475-6347 | [2] | HARNESS AS-SCREED | |
| | | | (EACH INCLUDES) |
| | 474-7564 | [2] | RECEPTACLE AS-CONNECTOR(28-PIN) | |
| | 474-7566 | [1] | CAP AS-CONNECTOR | |
| | 329-3734B | | TAPE-ELECTRICAL | |
| 2. | 477-7144Y | [1] | COVER GP-SCREED | |
| 3. | 477-7145Y | [1] | SUPPORT GP-FRAME | |
| 4. | 480-7111 | [1] | SHAFT GP-DRIVE | |
| | 474-5725 | [4] | SHAFT | |
| 5. | 491-0718Y | [2] | EXTENSION GP-SCREED | |
| 6. | 491-0719Y | [2] | EXTENSION GP-SCREED | |
| | B | | USE AS REQUIRED |
| | Y | | SEPARATE ILLUSTRATION |
