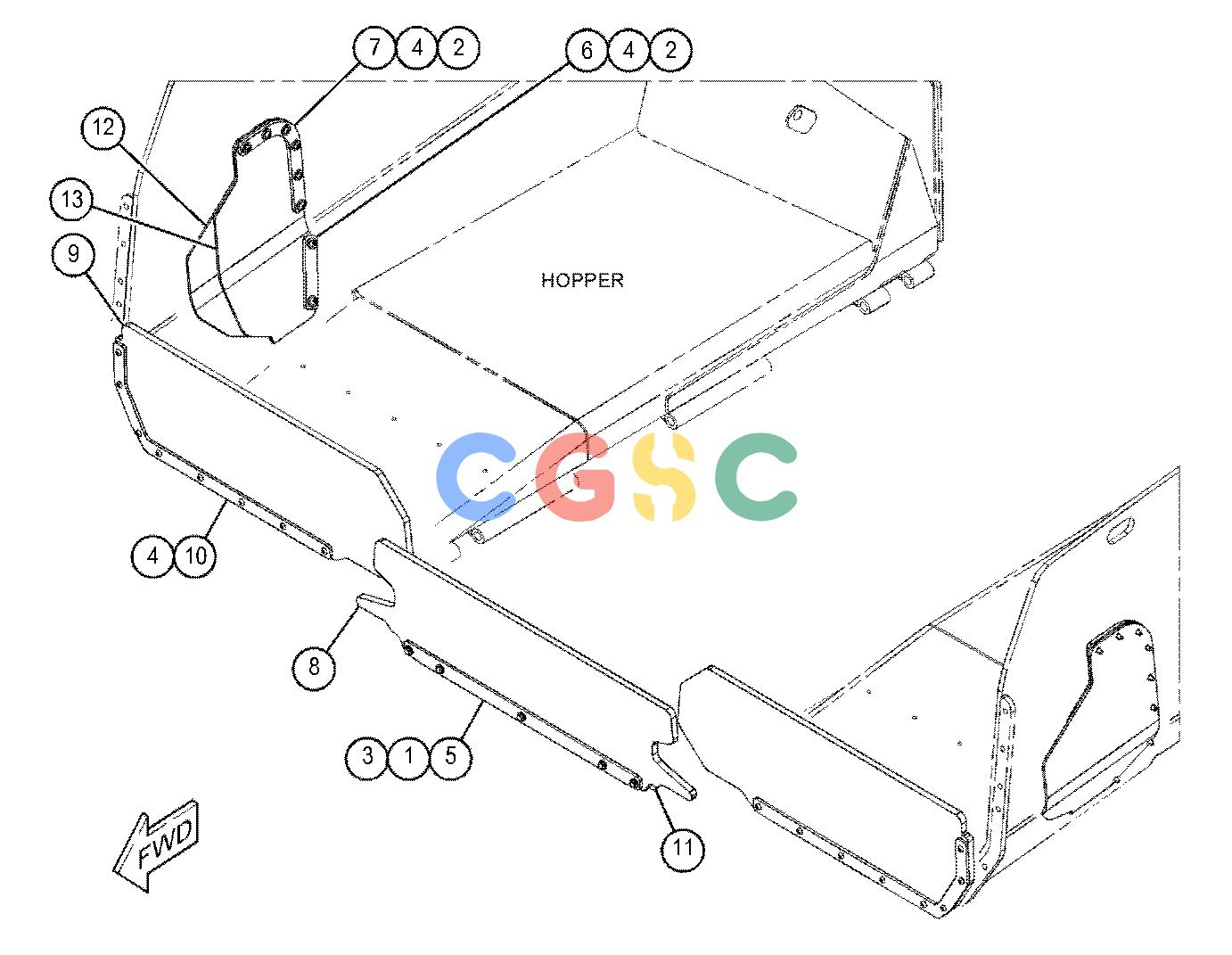

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 8T-5005M | [5] | BOLT(M10X1.5X70-MM) | |
| 2. | 7X-0589 | [16] | WASHER-HARD(12X28.5X5-MM THK) | |
| 3. | 7X-7729 | [5] | WASHER(11X25X3-MM THK) | |
| 4. | 450-9474M | [32] | SCREW-BUTTON HEAD(M10X1.5X40-MM) | |
| 5. | 503-4802 | [1] | PLATE | |
| 6. | 505-0049 | [2] | PLATE | |
| 7. | 505-0050 | [2] | PLATE | |
| 8. | 505-6927 | [1] | FLASHING | |
| 9. | 505-9966 | [2] | FLASHING | |
| 10. | 505-9967 | [2] | PLATE | |
| 11. | 520-4392 | [1] | PLATE | |
| 12. | 505-9968 | [2] | FLASHING | |
| 13. | 505-9969 | [2] | FLASHING | |
| M | METRIC PART | |||
