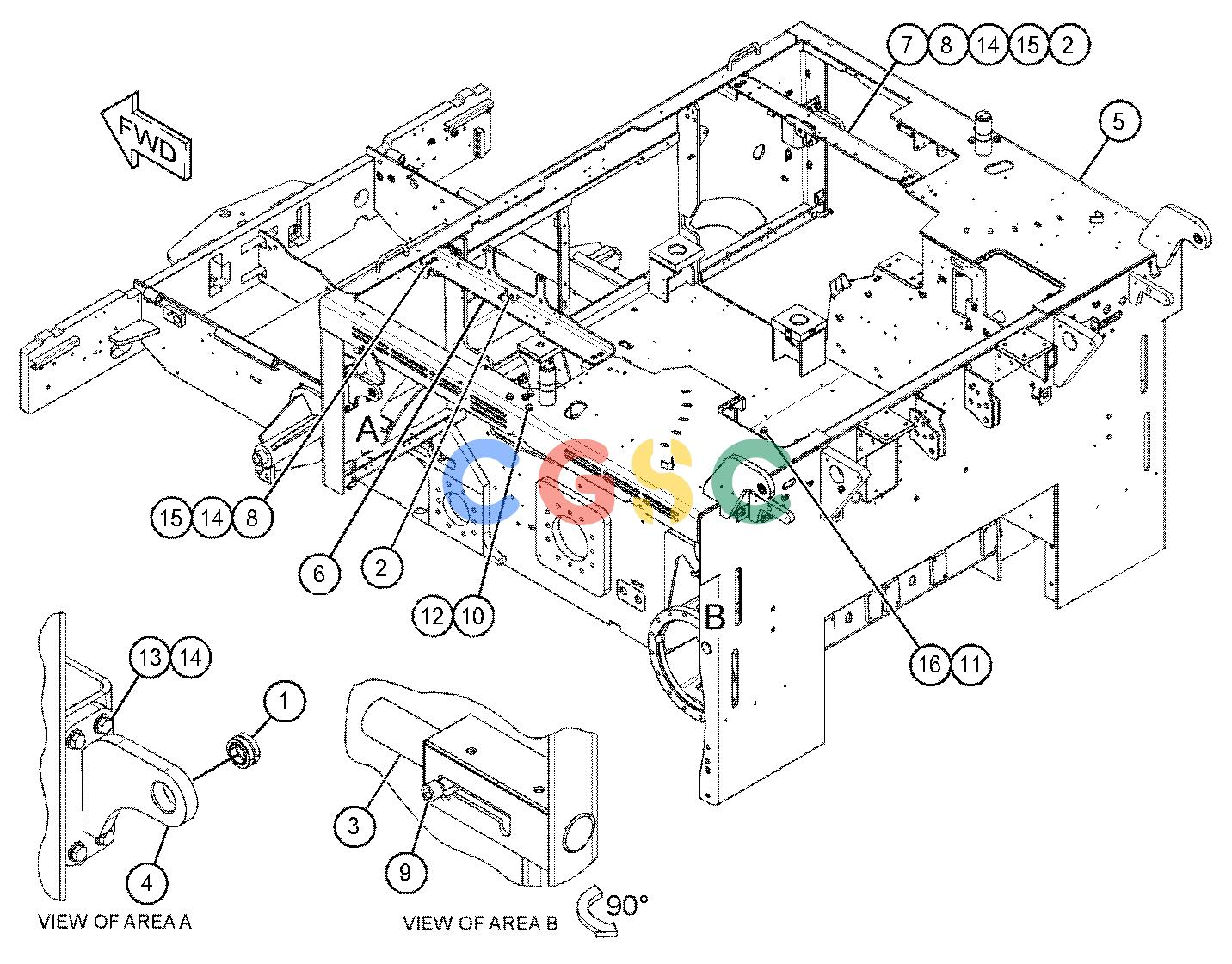

卡特零件查询（AP-1055F） 382-9729: FRAME GP-MAIN
广数供应链运营团队, 16 02月, 2025，浏览：
811 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 005-8639 | [2] | BEARING-ALIGNING | |
| 2. | 119-9706 | [2] | STUD-BALL | |
| 3. | 253-7897 | [2] | BAR | |
| 4. | 425-5911 | [2] | SUPPORT AS | |
| 5. | 427-9899 | [1] | FRAME AS | |
| 6. | 428-8753 | [1] | BRACKET | |
| 7. | 428-9216 | [1] | BRACKET AS | |
| 8. | 145-1893M | [8] | SCREW(M12X1.75X40-MM) | |
| 9. | 8T-2393M | [2] | BOLT-SOCKET HEAD(M16X2X60-MM) | |
| 10. | 8T-4122 | [8] | WASHER-HARD(17X32X3.5-MM THK) | |
| 11. | 8T-4191M | [1] | BOLT(M10X1.5X16-MM) | |
| 12. | 8T-4193M | [8] | BOLT(M16X2X50-MM) | |
| 13. | 8T-4194M | [8] | BOLT(M12X1.75X50-MM) | |
| 14. | 8T-4223 | [16] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 15. | 8T-4244M | [8] | NUT(M12X1.75-THD) | |
| 16. | 8T-7934 | [1] | WASHER-HARD(11X21X5-MM THK) | |
| | M | | METRIC PART |
