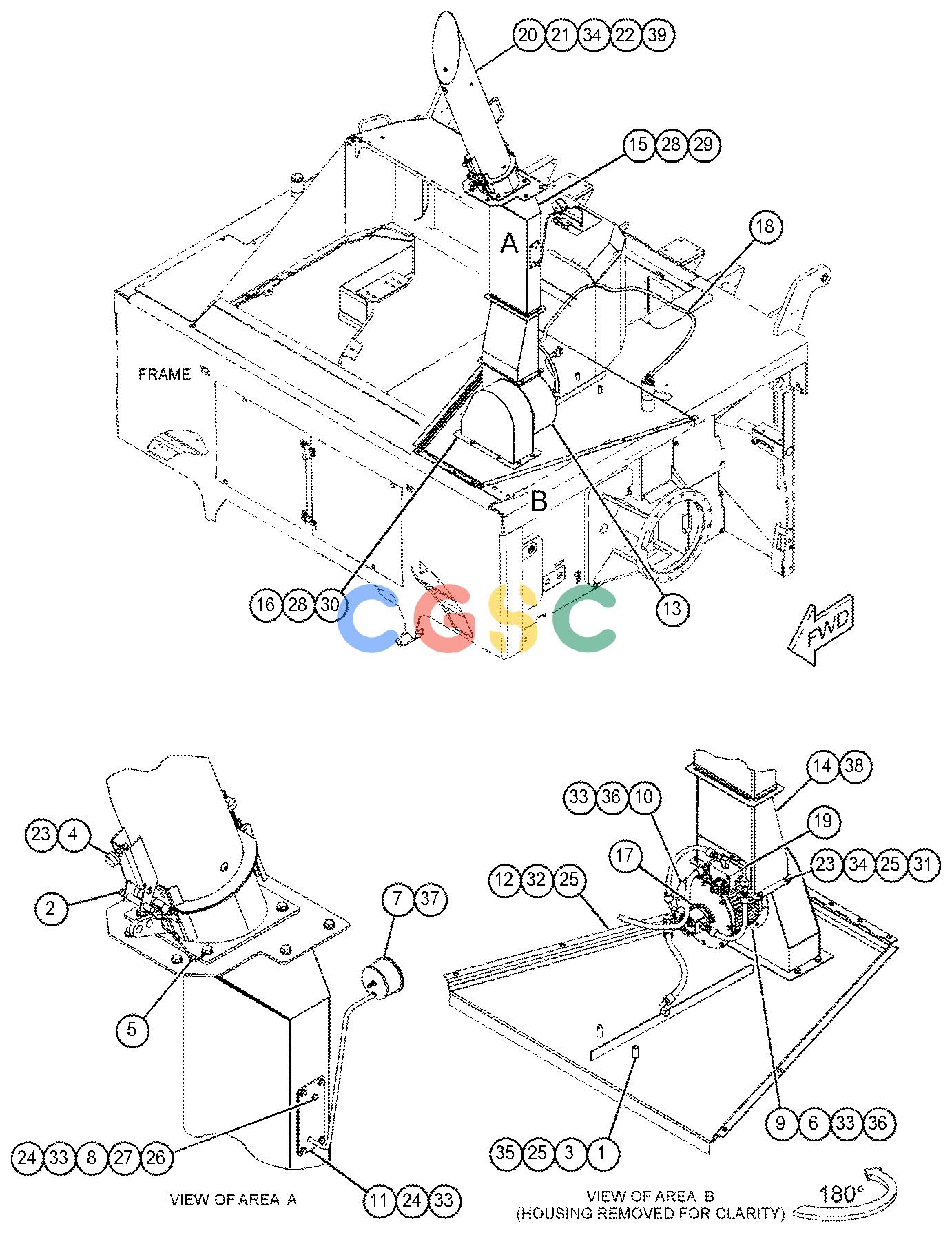

卡特零件查询（AP-1055F） 396-7159: VENTILATION GP-PAVER
广数供应链运营团队, 16 02月, 2025，浏览：
267 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4W-7627 | [2] | SPACER(11X19X37-MM THK) | |
| 2. | 5E-9892 | [1] | PIN | |
| 3. | 6W-9789 | [1] | BAR | |
| 4. | 114-9284 | [1] | BUMPER | |
| 5. | 135-5049 | [1] | CABLE AS | |
| | 5P-7958 | [1] | SLEEVE-CABLE SPLICE | |
| 6. | 143-3500 | [1] | INLET-BLOWER | |
| 7. | 150-8702 | [1] | GAUGE-DIFFERENTIAL PRESSURE(PAVER VENTILATION) | |
| 8. | 222-9208 | [1] | TUBE | |
| 9. | 234-9162 | [1] | BLOWER GP-PAVER VENTILATION | |
| | 3B-8601 | [2] | SETSCREW-SOCKET(3/8-16X0.5-IN) | |
| 10. | 236-2581 | [1] | PLATE | |
| 11. | 277-9952 | [1] | PLATE | |
| 12. | 290-1405 | [1] | DUCT AS | |
| 13. | 331-5812 | [1] | HOUSING AS | |
| | 147-8904 | [1] | HOUSING AS-BLOWER | |
| 14. | 337-0847 | [1] | DUCT AS(LOWER) | |
| 15. | 337-0850 | [1] | DUCT AS(UPPER) | |
| 16. | 338-9420 | [1] | DUCT AS | |
| 17. | 396-7161Y | [1] | MOTOR & MTG GP-VENTILATION | |
| 18. | 396-7162Y | [1] | LINES GP-HYDRAULIC FAN | |
| 19. | 396-7163Y | [1] | VALVE & MOUNTING GP(PAVER VENTILATION) | |
| 20. | 442-7365 | [1] | STACK AS | |
| | 443-8697 | [1] | STACK AS-UPPER | |
| | 443-8700 | [1] | STACK AS-LOWER | |
| | 107-6125 | [1] | HINGE AS | |
| | 096-2323 | [2] | RING-RETAINING(EXTERNAL) | |
| 21. | 127-2170M | [4] | SCREW-TRUSS HEAD(M8X1.25X20-MM) | |
| 22. | 344-5674M | [4] | NUT(M8X1.25-THD) | |
| 23. | 5C-7261M | [5] | NUT(M8X1.25-THD) | |
| 24. | 5C-9553M | [5] | BOLT(M6X1X16-MM) | |
| 25. | 5P-4116 | [14] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 26. | 6V-7743M | [1] | LOCKNUT(M6X1-THD) | |
| 27. | 8M-2771 | [1] | CLIP | |
| 28. | 8T-4121 | [16] | WASHER-HARD(11X21X2.5-MM THK) | |
| 29. | 8T-4136M | [10] | BOLT(M10X1.5X25-MM) | |
| 30. | 8T-4137M | [6] | BOLT(M10X1.5X20-MM) | |
| 31. | 8T-4189M | [4] | BOLT(M8X1.25X20-MM) | |
| 32. | 8T-4199M | [8] | BOLT(M8X1.25X12-MM) | |
| 33. | 8T-4205 | [21] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 34. | 8T-4224 | [8] | WASHER-HARD(8.8X16X2-MM THK) | |
| 35. | 8T-7329M | [2] | BOLT(M8X1.25X55-MM) | |
| 36. | 8T-9364 | [16] | BOLT(1/4-20X0.625-IN) | |
| 37. | 144-0195E | | HOSE(51-CM) | |
| 38. | 5P-7211D | | SEAL(0.9-M) | |
| 39. | 232-3121M | [1] | NUT(M10X1.25-THD) | |
| | D | | ORDER BY THE METER |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
