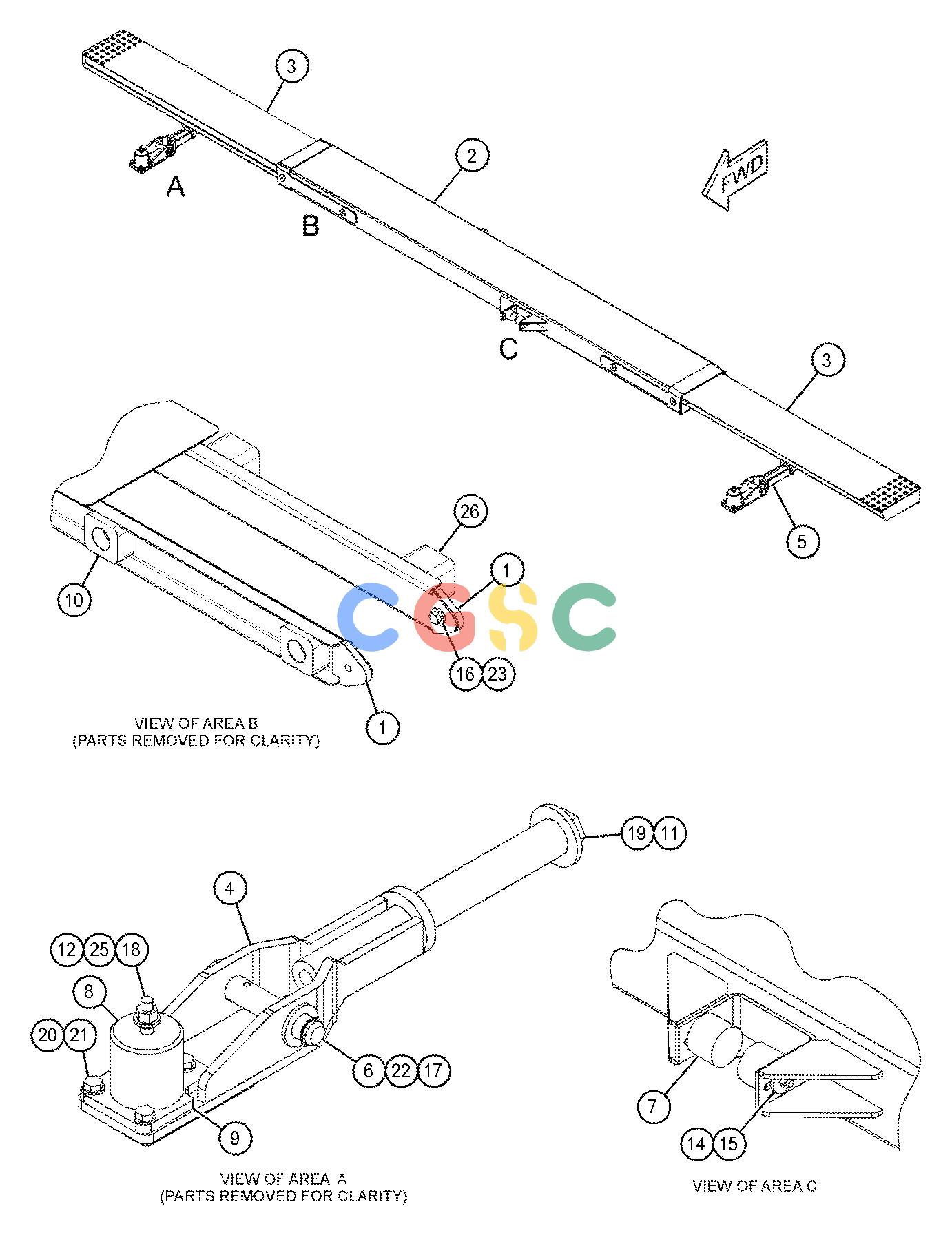

卡特零件查询（AP-1055F） 390-4830: WALKWAY GP
广数供应链运营团队, 16 02月, 2025，浏览：
304 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 395-0600 | [4] | PLATE | |
| 2. | 439-2770 | [1] | WALKWAY AS | |
| 3. | 439-2771 | [2] | WALKWAY AS | |
| 4. | 439-2778 | [1] | ARM AS-SUPPORT | |
| 5. | 439-2779 | [1] | ARM AS-SUPPORT | |
| 6. | 441-6207 | [2] | PIN | |
| 7. | 441-6208 | [2] | BUMPER | |
| 8. | 441-6210 | [2] | BLOCK | |
| 9. | 441-6211 | [2] | PAD | |
| 10. | 463-3995 | [4] | PAD | |
| 11. | 068-6405 | [2] | WASHER(26X63.5X6-MM THK) | |
| 12. | 329-3356M | [2] | NUT(M12X1.75-THD) | |
| 14. | 344-5674M | [2] | NUT(M8X1.25-THD) | |
| 15. | 384-1628 | [2] | WASHER-HARD(8.8X35X4-MM THK) | |
| 16. | 5P-1076 | [4] | WASHER-HARD(13.5X30X4-MM THK) | |
| 17. | 6K-8162 | [2] | RING-RETAINING | |
| 18. | 7X-2549M | [2] | BOLT(M12X1.75X100-MM) | |
| 19. | 7X-2575M | [2] | BOLT(M24X3X60-MM) | |
| 20. | 5P-4116 | [4] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 21. | 8T-4908M | [4] | BOLT(M8X1.25X25-MM) | |
| 22. | 8T-4167 | [2] | WASHER-HARD(26X44X4-MM THK) | |
| 23. | 8T-4179M | [4] | BOLT(M12X1.75X20-MM) | |
| 25. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 26. | 463-3996 | [4] | PAD | |
| | M | | METRIC PART |
