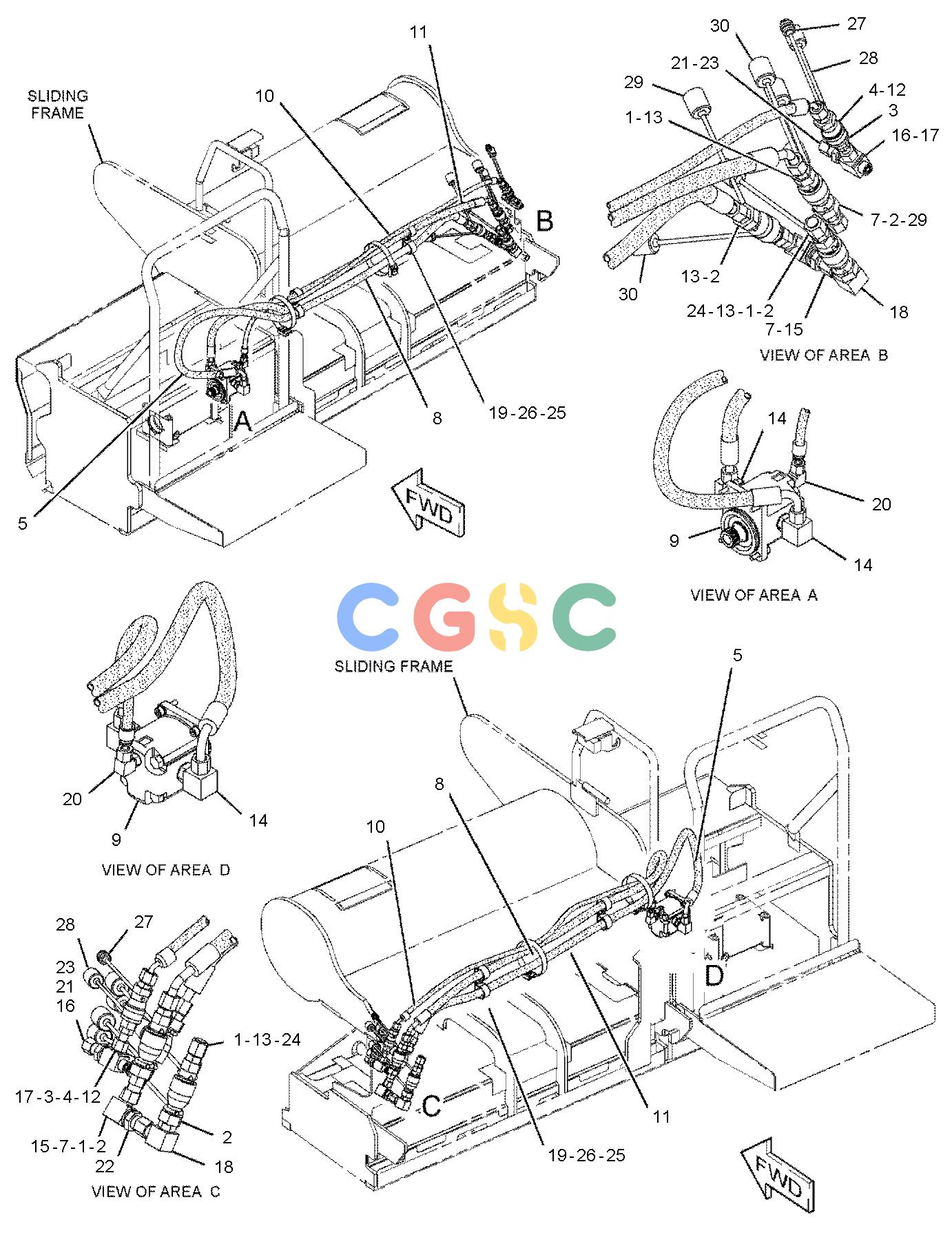

卡特零件查询（AP-600D） 265-7799: LINES GP-VIBRATORY
广数供应链运营团队, 16 02月, 2025，浏览：
196 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5R-6306 | [6] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| 2. | 5R-6307 | [6] | COUPLER AS-QUICK DISCONNECT(FEMALE) | |
| | | | (EACH INCLUDES) |
| | 1H-8171 | [1] | SEAL-O-RING | |
| | 5R-6859 | [1] | RETAINER | |
| 3. | 5R-6867 | [2] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| 4. | 5R-6868 | [2] | COUPLER AS-QUICK DISCONNECT(FEMALE) | |
| 5. | 5T-9724I | [2] | HOSE AS | |
| 7. | 250-1440 | [4] | ADAPTER AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 7X-3164 | [1] | ADAPTER-SWIVEL | |
| 8. | 257-5289 | [4] | CLAMP-BAND | |
| 9. | 258-7186Y | [2] | MOTOR & MTG GP-TAMPER | |
| 10. | 281-6977I | [2] | HOSE AS | |
| 11. | 344-1539I | [2] | HOSE AS | |
| 12. | 148-8336 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8636 | [1] | CONNECTOR | |
| 13. | 148-8340 | [6] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8639 | [1] | CONNECTOR | |
| 14. | 148-8372 | [4] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8721 | [1] | ELBOW | |
| 15. | 148-8375 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8981 | [1] | ELBOW | |
| 16. | 153-6246 | [2] | TEE AS | |
| | | | (EACH INCLUDES) |
| | 6V-8397 | [3] | SEAL-O-RING | |
| | 7X-0820 | [1] | TEE | |
| 17. | 164-5549 | [2] | COUPLING AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 4I-6287 | [1] | COUPLING | |
| 18. | 171-6728 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 8T-0249 | [1] | ELBOW(SWIVEL) | |
| 19. | 176-0257M | [4] | BOLT(M10X1.5X30-MM) | |
| 20. | 250-1424 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-8724 | [1] | ELBOW | |
| | 214-7568 | [1] | SEAL-O-RING | |
| | 228-7089 | [1] | SEAL-O-RING | |
| 21. | 6V-9168 | [2] | NUT(11/16-16-THD) | |
| 22. | 6V-9169 | [2] | NUT(13/16-16-THD) | |
| 23. | 6V-9829 | [2] | CAP(ORFS) | |
| 24. | 6V-9830 | [2] | CAP | |
| 25. | 7D-7233 | [8] | CLIP | |
| 26. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 27. | 5R-5676 | [2] | PLUG-DUST | |
| 28. | 5R-5677 | [2] | CAP-DUST(DUST) | |
| 29. | 5R-6301 | [6] | PLUG-DUST | |
| 30. | 5R-6302 | [6] | CAP-DUST | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
