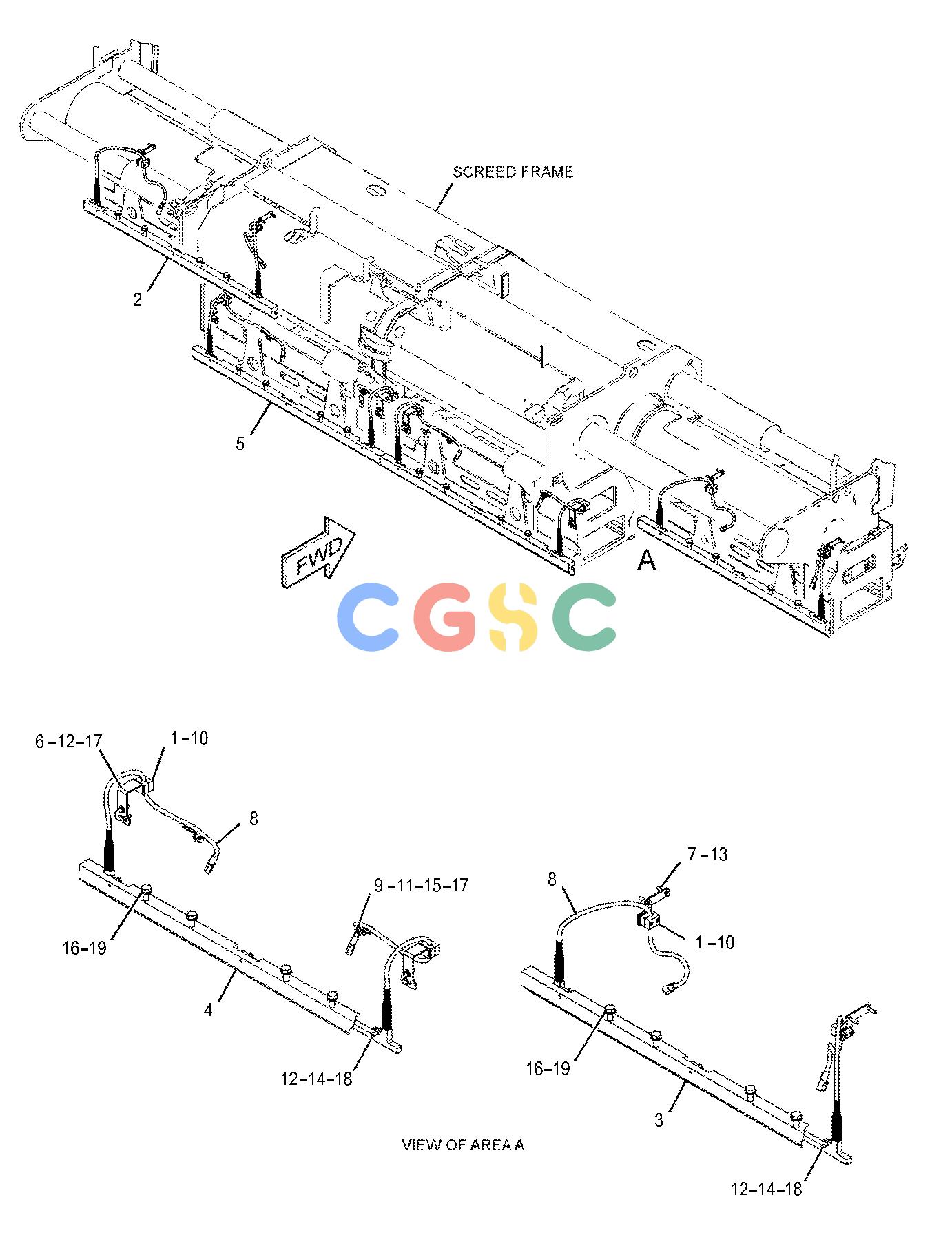

卡特零件查询（AP-600D） 339-1646: BLADE & HEATER GP-TAMPER
广数供应链运营团队, 16 02月, 2025，浏览：
355 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1G-8781 | [16] | CLAMP | |
| 2. | 257-5282 | [1] | BAR-TAMPER(SLIDING, LH) | |
| 3. | 257-5283 | [1] | BAR-TAMPER(SLIDING, RH) | |
| 4. | 257-5284 | [1] | BAR-TAMPER(MAIN, RH) | |
| 5. | 257-5285 | [1] | BAR-TAMPER(MAIN, LH) | |
| 6. | 339-1647 | [4] | SUPPORT AS | |
| 7. | 339-1648 | [4] | PLATE AS-SUPPORT | |
| 8. | 339-1649 | [4] | HEATER AS-TAMPER BAR | |
| 9. | 132-5789 | [4] | CLIP | |
| 10. | 3T-0849M | [16] | BOLT-SOCKET HEAD(M6X1X25-MM) | |
| 11. | 5C-7261M | [4] | NUT(M8X1.25-THD) | |
| 12. | 5P-4116 | [20] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 13. | 7X-2537M | [8] | BOLT(M8X1.25X35-MM) | |
| 14. | 8T-0225 | [12] | WASHER-BELLEVILLE | |
| 15. | 8T-4224 | [8] | WASHER-HARD(8.8X16X2-MM THK) | |
| 16. | 8T-4779M | [16] | BOLT(M16X2X35-MM) | |
| 17. | 8T-4908M | [12] | BOLT(M8X1.25X25-MM) | |
| 18. | 8T-7547M | [12] | BOLT(M8X1.25X30-MM) | |
| 19. | 9X-8257 | [16] | WASHER(17.5X30X3.5-MM THK) | |
| | M | | METRIC PART |
