卡特零件查询（BG-225C） 185-3508: PUMP GP-PISTON

广数供应链运营团队, 16 02月, 2025，浏览： 234 次

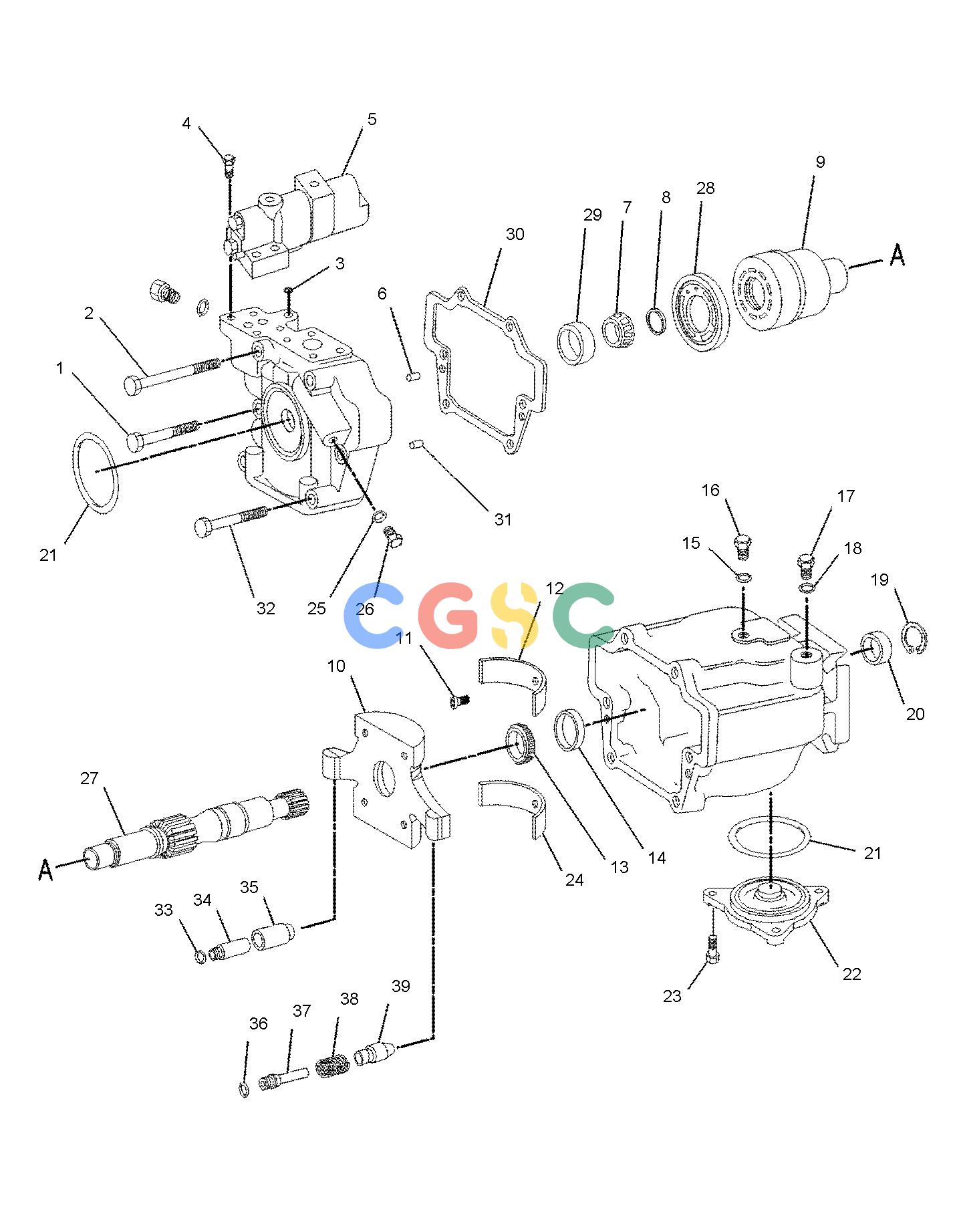

Pos.	Part No	Qty	Parts name
1.	7X-2607M	[2]	BOLT(M12X1.75X130-MM)
2.	8T-0372M	[2]	BOLT(M12X1.75X90-MM)
3.	8T-5039	[3]	SEAL-O-RING
4.	6V-8337M	[4]	BOLT-SOCKET HEAD(M8X1.25X35-MM)
5.	152-7576Y	[1]	VALVE GP-PUMP CONTROL(PRESSURE, FLOW COMPENSATOR)
6.	095-0888	[2]	PIN-SPRING
7.	111-6800	[1]	CONE-BEARING
8.	9T-3038	[1]	SHIM PACK(CONVEYOR PUMP)
9.	6E-6569Y	[1]	ROTATING GP-PUMP
10.	6E-6583	[1]	SWASHPLATE GP
11.	3E-4302M	[2]	SCREW-FLAT HEAD(M4X0.7X10-MM)
12.	6E-6573	[1]	BEARING
13.	005-0471	[1]	CONE-BEARING
14.	005-0469	[1]	CUP-BEARING
15.	033-6036	[1]	SEAL-O-RING
16.	6E-4224	[1]	PLUG-SWASHPLATE
17.	064-9829	[1]	PLUG
18.	3K-0360	[1]	SEAL-O-RING
19.	008-3214	[1]	RING-RETAINING(INTERNAL)
20.	3E-6776	[1]	SEAL-LIP TYPE
21.	5P-3863	[2]	SEAL-O-RING
22.	6E-6575	[1]	COVER
23.	6V-8837M	[3]	BOLT(M6X1X16-MM)
24.	6E-6576	[1]	BEARING
25.	8T-7876	[2]	SEAL-O-RING
26.	3E-7417	[2]	PLUG
27.	152-7577	[1]	SHAFT
28.	9T-3030	[1]	PLATE
29.	111-6801	[1]	CUP-BEARING
30.	6E-6580	[1]	GASKET
31.	9T-1652	[1]	PIN
32.	6V-5684M	[2]	BOLT(M12X1.75X45-MM)
33.	TZ		SEAL
34.	TZ	[1]	ROD
35.	TZ	[1]	PISTON
36.	JZ	[1]	SEAL
37.	JZ	[1]	ROD
38.	JZ	[1]	SPRING
39.	JZ	[1]	PISTON

	161-3921F	[1]	PLATE-ADAPTER
	185-3510F	[1]	SHIM
	185-3511F	[1]	SHIM

			AVAILABLE REPAIR KIT(S):
	6E-6578J	[1]	KIT-PISTON BIAS(CONVEYOR PUMP)
	6E-6582T	[1]	KIT-PISTON CONTROL(CONVEYOR PUMP)
	F		NOT SHOWN
	J		KIT MARKED J INCKUDES PARTS MARKED J
	M		METRIC PART
	T		KIT MARKED T INCLUDES PART(S) MARKED T
	Y		SEPARATE ILLUSTRATION
	Z		NOT SERVICED SEPARATELY
